Modulator
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

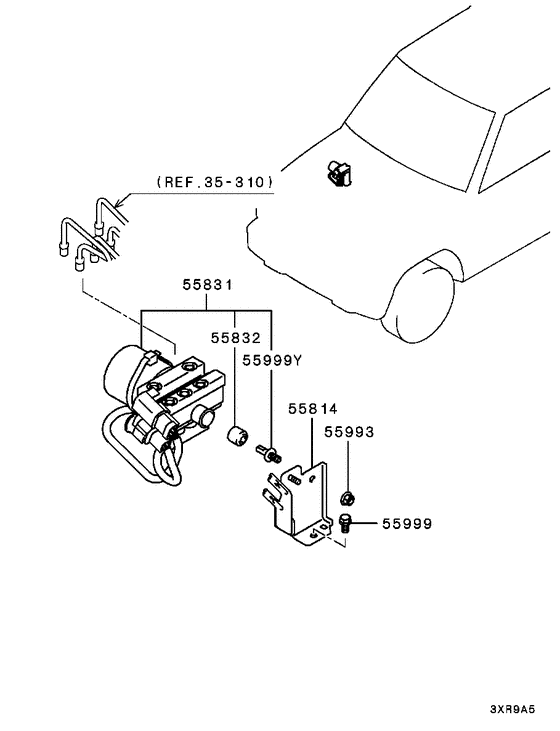

Diagram 7939166
Parts diagram group Modulator in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 55814 | MR128966 | BRACKET, BRAKE HYDRAULIC UNIT | 1 | $25.16 | |
| 55831 | MR128965 | HYDRAULIC UNIT, BRAKE MODULATOR | 1 | $2433.60 | |
| 55832 | MR205040 | INSULATOR, BRAKE HYDRAULIC UNIT BRACKET | 3 | $10.36 | |
| 55993 | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 55999 | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 10 | $0.82 |
| 55999 | MU240147 | BOLT, ABS EQUIP | Washer assembled,8x20 | 1 | — |
| 55999Y | MR205039 | BOLT, ABS EQUIP | 1 | $2.81 |
