Front wheel brake
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

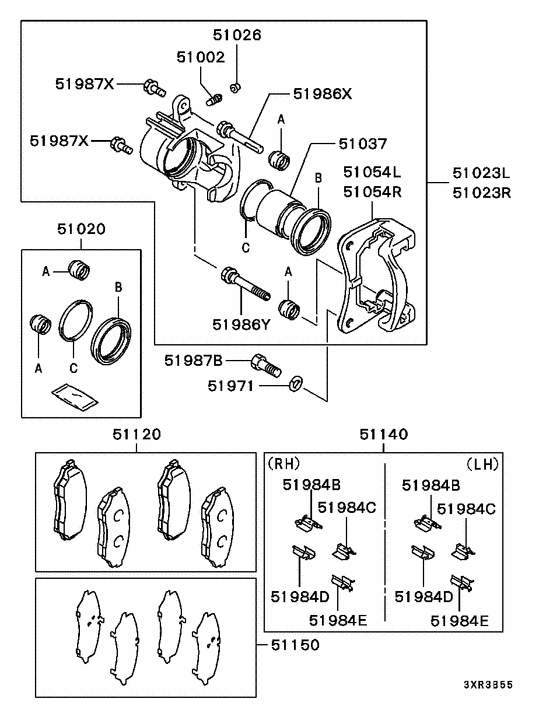

Diagram 7939153
Parts diagram group Front wheel brake in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (32 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 51002 | MR205677 | BLEEDER, FR BRAKE CALIPER | 2 | $8.89 | |
| 51020 | MB668564 | SEAL KIT, FR BRAKE CALIPER | 2 | — | |
| 51020 | 4605B857 | SEAL KIT, FR BRAKE CALIPER | 2 | $46.51 | |
| 51020 | MR334949 | SEAL KIT, FR BRAKE CALIPER | 2 | — | |
| 51020 | 4605B868 | SEAL KIT, FR BRAKE CALIPER | 2 | $39.67 | |
| 51023L | MR205972 | CALIPER KIT, FR BRAKE, LH | 1 | — | |
| 51023L | MR334908 | CALIPER KIT, FR BRAKE, LH | 1 | $420.47 | |
| 51023R | MR205973 | CALIPER KIT, FR BRAKE, RH | 1 | $611.10 | |
| 51023R | MR334909 | CALIPER KIT, FR BRAKE, RH | 1 | $390.21 | |
| 51026 | MA140440 | CAP, FR BRAKE CALIPER BLEEDER | 2 | $2.26 | |
| 51037 | MB134805 | PISTON, FR BRAKE CALIPER | 2 | $69.08 | |
| 51037 | MR334903 | PISTON, FR BRAKE CALIPER | 2 | $41.44 | |
| 51054L | MR235000 | SUPPORT, FR BRAKE CALIPER, LH | 1 | $79.92 | |
| 51054L | MR334904 | SUPPORT, FR BRAKE CALIPER, LH | 1 | $56.24 | |
| 51054R | MR235000 | SUPPORT, FR BRAKE CALIPER, LH | 1 | $79.92 | |
| 51054R | MR334905 | SUPPORT, FR BRAKE CALIPER, RH | 1 | $56.24 | |
| 51120 | MR334950 | PAD SET, FR BRAKE | 1 | $165.53 | |
| 51120 | MR389505 | PAD SET, FR BRAKE | 1 | $160.06 | |
| 51140 | MR334952 | CLIP SET, FR BRAKE | 1 | $17.55 | |
| 51140 | MR389604 | CLIP SET, FR BRAKE | 1 | $36.94 | |
| 51150 | MR334951 | SHIM SET, FR BRAKE | 1 | $28.73 | |
| 51150 | MR389650 | SHIM SET, FR BRAKE | 1 | $32.15 | |
| 51984B | MR235004 | CLIP, FR BRAKE | 4 | $4.29 | |
| 51984B | MR334893 | CLIP, FR BRAKE | 2 | $3.40 | |
| 51984C | MR235003 | CLIP, FR BRAKE | 4 | $4.29 | |
| 51984C | MR334894 | CLIP, FR BRAKE | 2 | $3.40 | |
| 51984D | MR334896 | CLIP, FR BRAKE | 2 | $3.40 | |
| 51984E | MR334895 | CLIP, FR BRAKE | 2 | $3.40 | |
| 51986X | MR334902 | BOLT, FR BRAKE | 2 | $8.31 | |
| 51986Y | MR334954 | PIN, FR BRAKE | 2 | $8.58 | |
| 51987B | MR205902 | BOLT, FR BRAKE | Flange,12x25.5 | 4 | $2.60 |
| 51987X | MR334900 | BOLT, FR BRAKE | 4 | $4.06 |

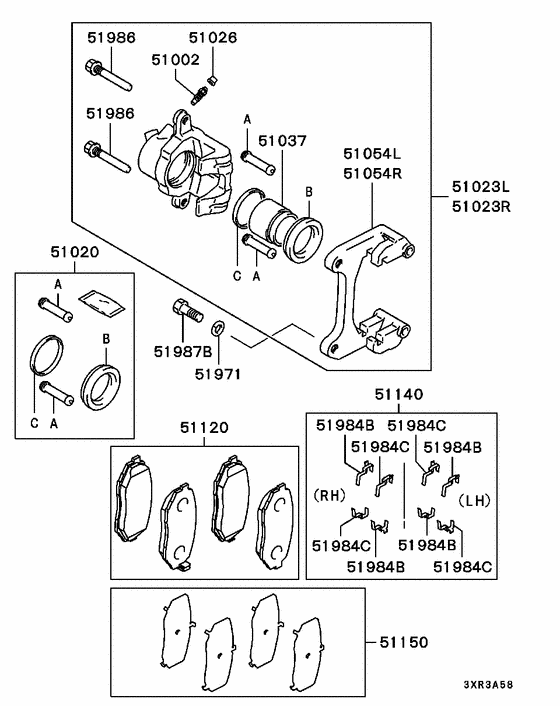

Diagram 7939154
Parts diagram group Front wheel brake in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (28 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 51002 | MR205677 | BLEEDER, FR BRAKE CALIPER | 2 | $8.89 | |
| 51020 | MB668564 | SEAL KIT, FR BRAKE CALIPER | 2 | — | |
| 51020 | 4605B857 | SEAL KIT, FR BRAKE CALIPER | 2 | $46.51 | |
| 51020 | MR334949 | SEAL KIT, FR BRAKE CALIPER | 2 | — | |
| 51020 | 4605B868 | SEAL KIT, FR BRAKE CALIPER | 2 | $39.67 | |
| 51023L | MR205972 | CALIPER KIT, FR BRAKE, LH | 1 | — | |
| 51023L | MR334908 | CALIPER KIT, FR BRAKE, LH | 1 | $420.47 | |
| 51023R | MR205973 | CALIPER KIT, FR BRAKE, RH | 1 | $611.10 | |
| 51023R | MR334909 | CALIPER KIT, FR BRAKE, RH | 1 | $390.21 | |
| 51026 | MA140440 | CAP, FR BRAKE CALIPER BLEEDER | 2 | $2.26 | |
| 51037 | MB134805 | PISTON, FR BRAKE CALIPER | 2 | $69.08 | |
| 51037 | MR334903 | PISTON, FR BRAKE CALIPER | 2 | $41.44 | |
| 51054L | MR235000 | SUPPORT, FR BRAKE CALIPER, LH | 1 | $79.92 | |
| 51054L | MR334904 | SUPPORT, FR BRAKE CALIPER, LH | 1 | $56.24 | |
| 51054R | MR235000 | SUPPORT, FR BRAKE CALIPER, LH | 1 | $79.92 | |
| 51054R | MR334905 | SUPPORT, FR BRAKE CALIPER, RH | 1 | $56.24 | |
| 51120 | MR334950 | PAD SET, FR BRAKE | 1 | $165.53 | |
| 51120 | MR389505 | PAD SET, FR BRAKE | 1 | $160.06 | |
| 51140 | MR334952 | CLIP SET, FR BRAKE | 1 | $17.55 | |
| 51140 | MR389604 | CLIP SET, FR BRAKE | 1 | $36.94 | |
| 51150 | MR334951 | SHIM SET, FR BRAKE | 1 | $28.73 | |
| 51150 | MR389650 | SHIM SET, FR BRAKE | 1 | $32.15 | |
| 51984B | MR235004 | CLIP, FR BRAKE | 4 | $4.29 | |
| 51984B | MR334893 | CLIP, FR BRAKE | 2 | $3.40 | |
| 51984C | MR235003 | CLIP, FR BRAKE | 4 | $4.29 | |
| 51984C | MR334894 | CLIP, FR BRAKE | 2 | $3.40 | |
| 51986 | MB134808 | PIN, FR BRAKE | M10 | 4 | $13.54 |
| 51987B | MR205902 | BOLT, FR BRAKE | Flange,12x25.5 | 4 | $2.60 |
