Front susp strut & spring
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

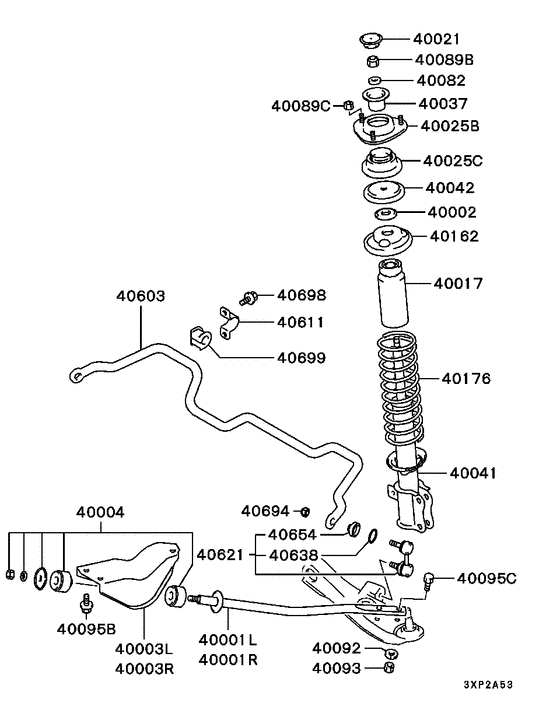

Diagram 7939149
Parts diagram group Front susp strut & spring in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (38 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 40001L | MR150441 | BAR, FR SUSP STRUT, LH | 1 | — | |
| 40001R | MR150442 | BAR, FR SUSP STRUT, RH | 1 | — | |
| 40002 | MR151192 | BEARING, FR SUSP STRUT | 2 | $5.81 | |
| 40003L | MR150453 | BRACKET, FR SUSP STRUT BAR, LH | 1 | $41.44 | |
| 40003R | MR150454 | BRACKET, FR SUSP STRUT BAR, RH | 1 | $53.28 | |
| 40004 | MB912592 | BUSHING KIT, FR SUSP STRUT BAR | 2 | $20.72 | |
| 40004 | MR241573 | BUSHING KIT, FR SUSP STRUT BAR | 2 | $17.10 | |
| 40017 | MR234019 | DAMPER, FR SUSP STRUT | 2 | $15.05 | |
| 40021 | MR210686 | COVER, FR SUSP STRUT | 2 | $4.02 | |
| 40025B | MB844042 | INSULATOR, FR SUSP STRUT | 2 | $45.83 | |
| 40025C | MB633947 | INSULATOR, FR SUSP STRUT | 2 | $50.62 | |
| 40037 | MB349131 | STOPPER, FR SUSP STRUT | 2 | $15.05 | |
| 40041 | MR151190 | STRUT, FR SUSP | 2 | — | |
| 40041 | MR316704 | STRUT, FR SUSP | 2 | $400.40 | |
| 40042 | MB349130 | SUPPORT, FR SUSP STRUT | 2 | $8.88 | |
| 40042 | MB633210 | SUPPORT, FR SUSP STRUT | 2 | $4.70 | |
| 40082 | MB109749 | WASHER, GEARSHIFT LINK | Plain,12.2 | 2 | $2.28 |
| 40089B | MF445243 | NUT, FR AXLE CROSSMEMBER | Self locking,12 | 2 | $6.70 |
| 40089C | MS440503 | NUT | Washer assembled,8 | 6 | $0.64 |
| 40092 | MS450043 | WASHER, ENG RR MOUNTING | Spring,10 | 4 | $1.76 |
| 40093 | MF430122 | NUT, ENG RR MOUNTING | 10 | 4 | $1.07 |
| 40095B | MS240596 | BOLT, GRILLE GUARD | Washer assembled,10x30 | 6 | $1.76 |
| 40095C | MB160664 | BOLT, FR AXLE SHAFT | 10x29 | 4 | $2.65 |
| 40162 | MR151189 | SEAT, FR SUSP SPRING, UPR | 2 | $9.62 | |
| 40176 | MR150201 | SPRING, FR SUSP COIL | 2 | $64.98 | |
| 40603 | MR151589 | BAR, FR SUSP STABILIZER | 23 | 1 | $210.16 |
| 40603 | MR151590 | BAR, FR SUSP STABILIZER | 22 | 1 | $210.16 |
| 40611 | MR133644 | BRACKET, FR SUSP STABILIZER BAR, LWR | 2 | — | |
| 40621 | MB573043 | LINK, FR SUSP STABILIZER | 2 | — | |
| 40621 | 4056A014 | LINK, FR SUSP STABILIZER | 2 | $36.25 | |
| 40638 | MB633060 | RING, FR SUSP STABILIZER LINK DUST COVER | 4 | — | |
| 40638 | MB892989 | RING, SUSP STABILIZER LINK DUST COVER | 4 | $10.81 | |
| 40654 | MB518785 | COVER, FR SUSP STABILIZER LINK BALL JOINT DUST | 4 | $7.86 | |
| 40694 | MB573546 | NUT, FR SUSP STABILIZER | Self locking,10 | 4 | — |
| 40694 | MS440002 | NUT, ENG RR MOUNTING | Self locking,10 | 4 | $1.85 |
| 40698 | MF140223 | BOLT, CYLINDER HEAD | Flange,8x16 | 4 | $1.07 |
| 40699 | MB844456 | BUSHING, FR SUSP STABILIZER | 23 | 2 | $7.04 |
| 40699 | MR102428 | BUSHING, FR SUSP STABILIZER | 22 | 2 | $11.35 |
