Front susp arm & member
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

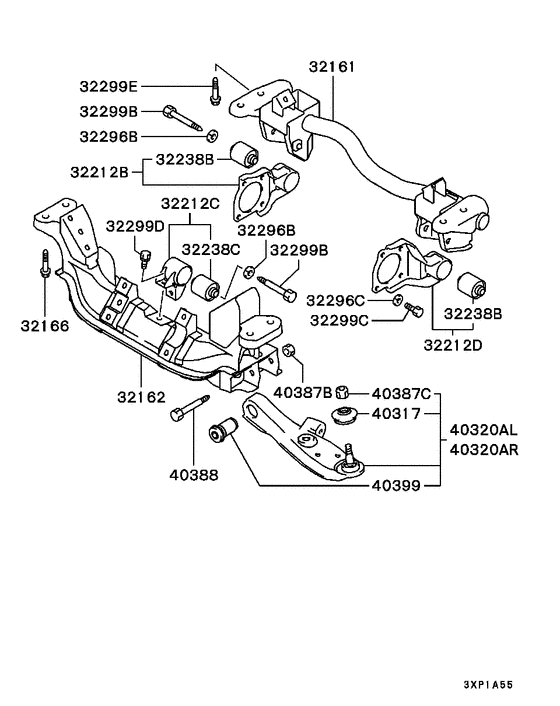

Diagram 7939148
Parts diagram group Front susp arm & member in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (26 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 32161 | MR234023 | CROSSMEMBER, FR DIFF MOUNTING | 1 | $439.71 | |
| 32162 | MR150326 | CROSSMEMBER, FR AXLE, NO.1 | 1 | $732.37 | |
| 32166 | MB338932 | BOLT, INDEPENDENT RR SUSP ARM | Flange,12x60 | 4 | — |
| 32166 | MU140042 | BOLT, FR DIFF MOUNTING | 4 | $6.70 | |
| 32212B | MR150468 | BRACKET, FR DIFF MOUNTING | 1 | $71.14 | |
| 32212C | MR150469 | BRACKET, FR DIFF MOUNTING | 1 | $50.62 | |
| 32212D | MR150467 | BRACKET, FR DIFF MOUNTING | 1 | $77.29 | |
| 32238B | MB672106 | INSULATOR, FR DIFF MOUNTING | 1 | $19.54 | |
| 32238C | MB672106 | INSULATOR, FR DIFF MOUNTING | 1 | $19.54 | |
| 32296B | MS450044 | WASHER, ENG RR MOUNTING | Spring,12 | 3 | $1.42 |
| 32296C | MS450992 | WASHER, FR AXLE | Spring,10 | 8 | $1.87 |
| 32299B | MU101007 | BOLT, ENG RR MOUNTING | Cone point,12x100 | 3 | $6.16 |
| 32299C | MB303549 | BOLT, FR AXLE CROSSMEMBER | 10x20 | 8 | — |
| 32299D | MF241280 | BOLT, RR SEAT | Washer assembled,10x20 | 2 | $0.88 |
| 32299E | MB338932 | BOLT, INDEPENDENT RR SUSP ARM | Flange,12x60 | 4 | — |
| 32299E | MU140042 | BOLT, FR DIFF MOUNTING | 4 | $6.70 | |
| 40317 | MB176047 | COVER, FR SUSP LWR ARM BALL JOINT | 2 | $13.27 | |
| 40320AL | MR179981 | ARM ASSY, FR SUSP, LWR LH | 1 | $264.02 | |
| 40320AR | MR179982 | ARM ASSY, FR SUSP, LWR RH | 1 | $264.02 | |
| 40387B | MB288463 | NUT, FR WHEEL HUB | Flange self locking,12 | 2 | $3.42 |
| 40387C | MS440003 | NUT, FR SUSP STRUT | Self locking,12 | 2 | $2.69 |
| 40388 | MB518942 | BOLT, FR AXLE CROSSMEMBER | Flange,12x90 | 2 | — |
| 40388 | MU140027 | BOLT, FR SUSP LWR ARM | 2 | $5.40 | |
| 40399 | MR210222 | BUSHING, FR SUSP LWR ARM | 2 | — | |
| 40399 | MR319067 | BUSHING, FR SUSP LWR ARM | 2 | $23.83 | |
| 40399 | MR319067 | BUSHING, FR SUSP LWR ARM | 2 | $23.83 |
