Brake master cylinder
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

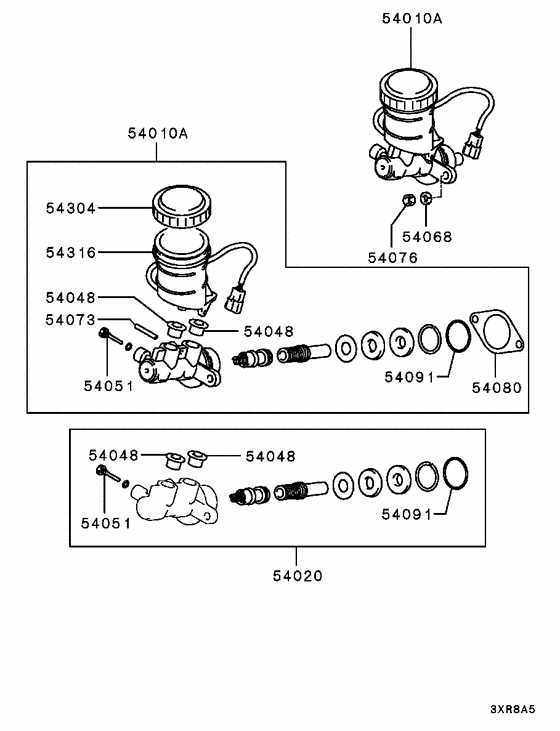

Diagram 7939164
Parts diagram group Brake master cylinder in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54010A | MR128860 | CYLINDER ASSY, BRAKE MASTER | 1 | — | |
| 54010A | MR128861 | CYLINDER ASSY, BRAKE MASTER | 1 | — | |
| 54020 | MR205976 | CYLINDER KIT, BRAKE MASTER | 7/8; | 1 | — |
| 54020 | MR205977 | CYLINDER KIT, BRAKE MASTER | 7/8; | 1 | $126.54 |
| 54048 | MB668587 | SEAL, BRAKE M/CYL TO FLUID RESERVOIR | 2 | $11.49 | |
| 54051 | MB134713 | STOPPER, BRAKE M/CYL SECONDARY PISTON | 1 | $3.40 | |
| 54068 | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 2 | $0.35 |
| 54073 | MB950511 | PIN, BRAKE M/CYL | 1 | $1.78 | |
| 54076 | MF430005 | NUT, ROCKER COVER | 8 | 2 | $0.82 |
| 54080 | MB366659 | GASKET, BRAKE M/CYL INR | 1 | $6.22 | |
| 54091 | MB238958 | O-RING, BRAKE BOOSTER INR | 37.2 | 1 | $2.96 |
| 54304 | MR449319 | CAP, BRAKE FLUID RESERVOIR | 1 | — | |
| 54316 | MR449317 | RESERVOIR, BRAKE FLUID | 1 | $77.70 | |
| 54316 | MR449318 | RESERVOIR, BRAKE FLUID | 1 | $77.70 |

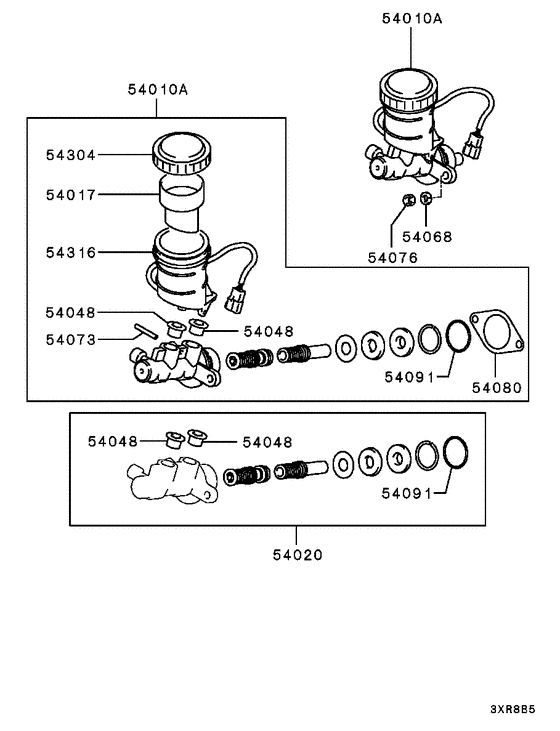

Diagram 7939165
Parts diagram group Brake master cylinder in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54010A | MR128860 | CYLINDER ASSY, BRAKE MASTER | 1 | — | |
| 54010A | MR128861 | CYLINDER ASSY, BRAKE MASTER | 1 | — | |
| 54017 | MR449320 | FILTER, BRAKE FLUID RESERVOIR | 1 | — | |
| 54020 | MR205976 | CYLINDER KIT, BRAKE MASTER | 7/8; | 1 | — |
| 54020 | MR205977 | CYLINDER KIT, BRAKE MASTER | 7/8; | 1 | $126.54 |
| 54048 | MB668587 | SEAL, BRAKE M/CYL TO FLUID RESERVOIR | 2 | $11.49 | |
| 54068 | MF450405 | WASHER, CYLINDER HEAD | Spring,8 | 2 | $0.35 |
| 54073 | MB950511 | PIN, BRAKE M/CYL | 1 | $1.78 | |
| 54076 | MF430005 | NUT, ROCKER COVER | 8 | 2 | $0.82 |
| 54080 | MB366659 | GASKET, BRAKE M/CYL INR | 1 | $6.22 | |
| 54091 | MB238958 | O-RING, BRAKE BOOSTER INR | 37.2 | 1 | $2.96 |
| 54304 | MR449319 | CAP, BRAKE FLUID RESERVOIR | 1 | — | |
| 54316 | MR449317 | RESERVOIR, BRAKE FLUID | 1 | $77.70 | |
| 54316 | MR449318 | RESERVOIR, BRAKE FLUID | 1 | $77.70 |
