Brake line
This EPC family contains 5 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

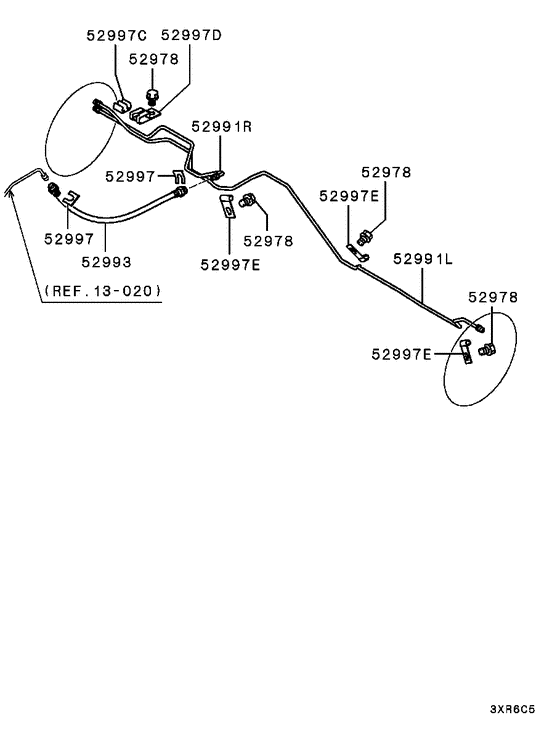

Diagram 7939157
Parts diagram group Brake line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 52978 | MF240049 | BOLT, ENG BREATHER | Washer assembled,8x12 | 4 | $1.07 |
| 52991L | MR128935 | TUBE, RR AXLE BRAKE, LH | 1 | $31.08 | |
| 52991R | MR128936 | TUBE, RR AXLE BRAKE, RH | 1 | $13.91 | |
| 52993 | MR129784 | HOSE, FR BRAKE BODY SIDE | 370 | 1 | $37.62 |
| 52997 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 2 | $1.66 |
| 52997C | MB082164 | CLIP, FUEL RETURN LINE | 4.6 | 1 | $4.24 |
| 52997D | MB133249 | CLIP, RR AXLE BRAKE TUBE | 1/4x2 | 1 | $2.52 |
| 52997E | MB193006 | CLIP, FUEL LINE | D=4.76 | 3 | $3.28 |

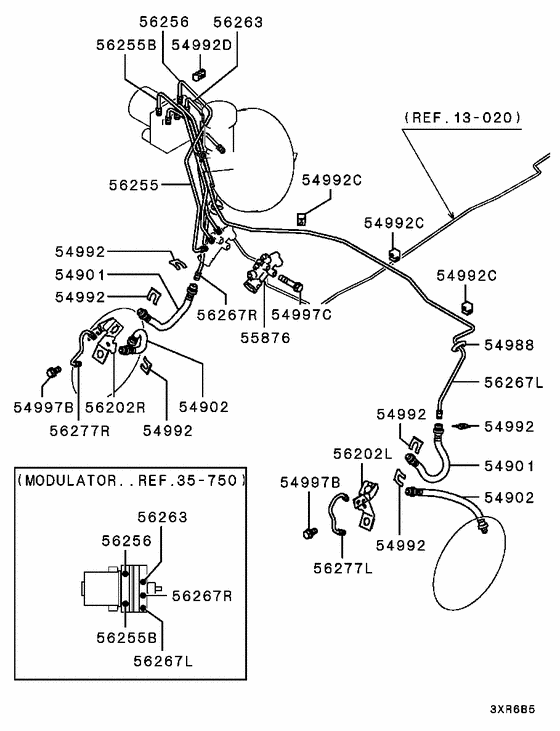

Diagram 7939158
Parts diagram group Brake line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54901 | MR129776 | HOSE, RR BRAKE BODY SIDE | 265 | 2 | — |
| 54901 | MR129777 | HOSE, RR BRAKE BODY SIDE | 265 | 2 | $14.78 |
| 54902 | MR129746 | HOSE, FR BRAKE WHEEL SIDE | 225 | 2 | $21.89 |
| 54988 | MS810053 | GROMMET, FUEL LINE | 6 | 2 | $3.01 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 4 | $1.66 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 6 | $1.66 |
| 54992C | MR129462 | CLIP, RR AXLE BRAKE TUBE | 4.8 | 3 | $4.10 |
| 54992D | MB668684 | CLIP, BRAKE FLUID LINE | 4.7-4.7-4.7 | 1 | $3.28 |
| 54997B | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 2 | $1.09 |
| 54997B | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 2 | $0.82 |
| 54997C | MF240061 | BOLT, THROTTLE BODY | Washer assembled,8x40 | 2 | $2.52 |
| 55876 | MR128891 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $133.20 | |
| 55876 | MR205926 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $164.28 | |
| 56202L | MR235781 | BRACKET, BRAKE HOSE, LH | 1 | $13.17 | |
| 56202L | MR235783 | BRACKET, BRAKE HOSE, LH | 1 | $16.28 | |
| 56202L | MR307956 | BRACKET, BRAKE HOSE, LH | 1 | $2.81 | |
| 56202R | MR235782 | BRACKET, BRAKE HOSE, RH | 1 | $13.17 | |
| 56202R | MR235784 | BRACKET, BRAKE HOSE, RH | 1 | $16.28 | |
| 56202R | MR307957 | BRACKET, BRAKE HOSE, RH | 1 | $2.81 | |
| 56255 | MR128896 | TUBE, BRAKE M/CYL PRIMARY | 1 | $11.40 | |
| 56255B | MR128900 | TUBE, BRAKE M/CYL PRIMARY | 1 | $13.02 | |
| 56256 | MR128897 | TUBE, BRAKE M/CYL SECONDARY | 1 | $9.77 | |
| 56256 | MR128901 | TUBE, BRAKE M/CYL SECONDARY | 1 | $10.66 | |
| 56263 | MR128902 | TUBE, BRAKE MAIN, FR | 1 | $11.40 | |
| 56267L | MR128894 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267L | MR128898 | TUBE, FR BRAKE, LH | 1 | $28.12 | |
| 56267L | MR334701 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267R | MR128895 | TUBE, FR BRAKE, RH | 1 | $10.80 | |
| 56267R | MR128899 | TUBE, FR BRAKE, RH | 1 | $13.91 | |
| 56267R | MR334702 | TUBE, FR BRAKE, RH | 1 | $11.10 | |
| 56277L | MR128903 | TUBE, FR BRAKE WHEEL SIDE, LH | 1 | $7.70 | |
| 56277L | MR235785 | TUBE, FR BRAKE WHEEL SIDE, LH | 1 | $7.25 | |
| 56277R | MR128904 | TUBE, FR BRAKE WHEEL SIDE, RH | 1 | $7.70 | |
| 56277R | MR235786 | TUBE, FR BRAKE WHEEL SIDE, RH | 1 | — |

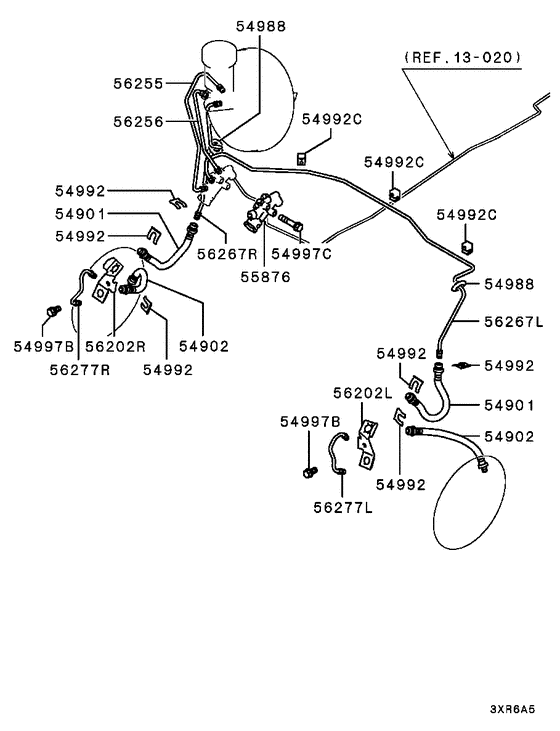

Diagram 7939159
Parts diagram group Brake line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (31 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54901 | MR129776 | HOSE, RR BRAKE BODY SIDE | 265 | 2 | — |
| 54901 | MR129777 | HOSE, RR BRAKE BODY SIDE | 265 | 2 | $14.78 |
| 54902 | MR129746 | HOSE, FR BRAKE WHEEL SIDE | 225 | 2 | $21.89 |
| 54988 | MS810053 | GROMMET, FUEL LINE | 6 | 2 | $3.01 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 4 | $1.66 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 6 | $1.66 |
| 54992C | MR129462 | CLIP, RR AXLE BRAKE TUBE | 4.8 | 3 | $4.10 |
| 54997B | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 2 | $1.09 |
| 54997B | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 2 | $0.82 |
| 54997C | MF240061 | BOLT, THROTTLE BODY | Washer assembled,8x40 | 2 | $2.52 |
| 55876 | MR128891 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $133.20 | |
| 55876 | MR205926 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $164.28 | |
| 56202L | MR235781 | BRACKET, BRAKE HOSE, LH | 1 | $13.17 | |
| 56202L | MR235783 | BRACKET, BRAKE HOSE, LH | 1 | $16.28 | |
| 56202L | MR307956 | BRACKET, BRAKE HOSE, LH | 1 | $2.81 | |
| 56202R | MR235782 | BRACKET, BRAKE HOSE, RH | 1 | $13.17 | |
| 56202R | MR235784 | BRACKET, BRAKE HOSE, RH | 1 | $16.28 | |
| 56202R | MR307957 | BRACKET, BRAKE HOSE, RH | 1 | $2.81 | |
| 56255 | MR128896 | TUBE, BRAKE M/CYL PRIMARY | 1 | $11.40 | |
| 56256 | MR128897 | TUBE, BRAKE M/CYL SECONDARY | 1 | $9.77 | |
| 56256 | MR128901 | TUBE, BRAKE M/CYL SECONDARY | 1 | $10.66 | |
| 56267L | MR128894 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267L | MR128898 | TUBE, FR BRAKE, LH | 1 | $28.12 | |
| 56267L | MR334701 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267R | MR128895 | TUBE, FR BRAKE, RH | 1 | $10.80 | |
| 56267R | MR128899 | TUBE, FR BRAKE, RH | 1 | $13.91 | |
| 56267R | MR334702 | TUBE, FR BRAKE, RH | 1 | $11.10 | |
| 56277L | MR128903 | TUBE, FR BRAKE WHEEL SIDE, LH | 1 | $7.70 | |
| 56277L | MR235785 | TUBE, FR BRAKE WHEEL SIDE, LH | 1 | $7.25 | |
| 56277R | MR128904 | TUBE, FR BRAKE WHEEL SIDE, RH | 1 | $7.70 | |
| 56277R | MR235786 | TUBE, FR BRAKE WHEEL SIDE, RH | 1 | — |

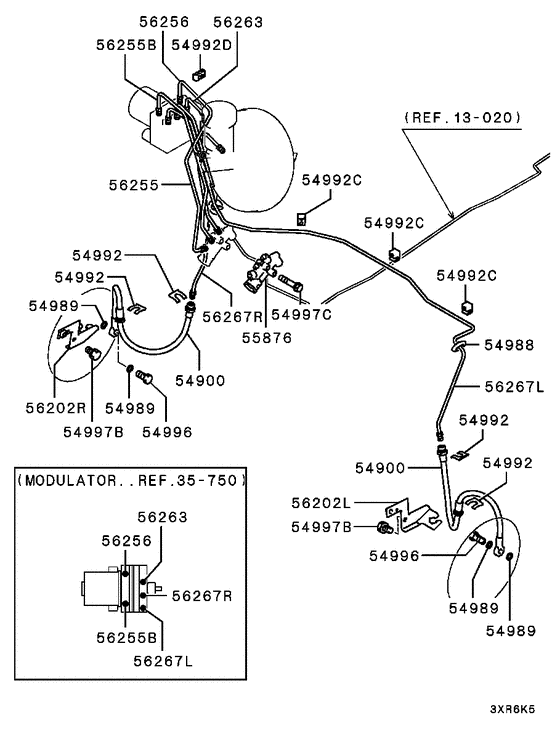

Diagram 7939160
Parts diagram group Brake line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (31 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54900 | MR307797 | HOSE, FR BRAKE | 265+255 | 2 | $19.24 |
| 54988 | MS810053 | GROMMET, FUEL LINE | 6 | 2 | $3.01 |
| 54989 | MA111832 | GASKET, CLUTCH M/CYL | 10.2 | 4 | $0.99 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 4 | $1.66 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 6 | $1.66 |
| 54992C | MR129462 | CLIP, RR AXLE BRAKE TUBE | 4.8 | 3 | $4.10 |
| 54992D | MB668684 | CLIP, BRAKE FLUID LINE | 4.7-4.7-4.7 | 1 | $3.28 |
| 54996 | MR249625 | EYEBOLT, BRAKE FLUID LINE | 10x21 | 2 | — |
| 54996 | MU001458 | EYEBOLT, RR AXLE BRAKE TUBE | 2 | $5.34 | |
| 54997B | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 2 | $1.09 |
| 54997B | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 2 | $0.82 |
| 54997C | MF240061 | BOLT, THROTTLE BODY | Washer assembled,8x40 | 2 | $2.52 |
| 55876 | MR128891 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $133.20 | |
| 55876 | MR205926 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $164.28 | |
| 56202L | MR235781 | BRACKET, BRAKE HOSE, LH | 1 | $13.17 | |
| 56202L | MR235783 | BRACKET, BRAKE HOSE, LH | 1 | $16.28 | |
| 56202L | MR307956 | BRACKET, BRAKE HOSE, LH | 1 | $2.81 | |
| 56202R | MR235782 | BRACKET, BRAKE HOSE, RH | 1 | $13.17 | |
| 56202R | MR235784 | BRACKET, BRAKE HOSE, RH | 1 | $16.28 | |
| 56202R | MR307957 | BRACKET, BRAKE HOSE, RH | 1 | $2.81 | |
| 56255 | MR128896 | TUBE, BRAKE M/CYL PRIMARY | 1 | $11.40 | |
| 56255B | MR128900 | TUBE, BRAKE M/CYL PRIMARY | 1 | $13.02 | |
| 56256 | MR128897 | TUBE, BRAKE M/CYL SECONDARY | 1 | $9.77 | |
| 56256 | MR128901 | TUBE, BRAKE M/CYL SECONDARY | 1 | $10.66 | |
| 56263 | MR128902 | TUBE, BRAKE MAIN, FR | 1 | $11.40 | |
| 56267L | MR128894 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267L | MR128898 | TUBE, FR BRAKE, LH | 1 | $28.12 | |
| 56267L | MR334701 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267R | MR128895 | TUBE, FR BRAKE, RH | 1 | $10.80 | |
| 56267R | MR128899 | TUBE, FR BRAKE, RH | 1 | $13.91 | |
| 56267R | MR334702 | TUBE, FR BRAKE, RH | 1 | $11.10 |

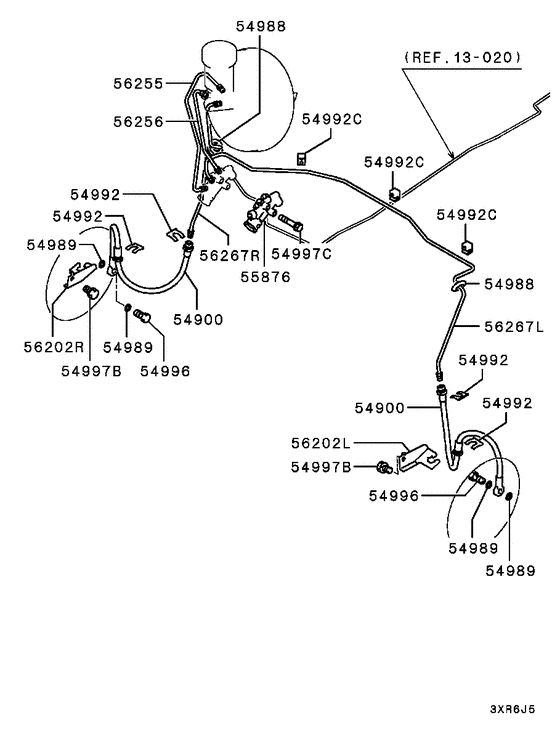

Diagram 7939161
Parts diagram group Brake line in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (28 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 54900 | MR307797 | HOSE, FR BRAKE | 265+255 | 2 | $19.24 |
| 54988 | MS810053 | GROMMET, FUEL LINE | 6 | 2 | $3.01 |
| 54989 | MA111832 | GASKET, CLUTCH M/CYL | 10.2 | 4 | $0.99 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 4 | $1.66 |
| 54992 | MA431825 | CLIP, BRAKE FLUID LINE | 13 | 6 | $1.66 |
| 54992C | MR129462 | CLIP, RR AXLE BRAKE TUBE | 4.8 | 3 | $4.10 |
| 54996 | MR249625 | EYEBOLT, BRAKE FLUID LINE | 10x21 | 2 | — |
| 54996 | MU001458 | EYEBOLT, RR AXLE BRAKE TUBE | 2 | $5.34 | |
| 54997B | MF240050 | BOLT, ROCKER COVER | Washer assembled,8x14 | 2 | $1.09 |
| 54997B | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 2 | $0.82 |
| 54997C | MF240061 | BOLT, THROTTLE BODY | Washer assembled,8x40 | 2 | $2.52 |
| 55876 | MR128891 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $133.20 | |
| 55876 | MR205926 | VALVE, BRAKE FLUID PROPORTIONING | 1 | $164.28 | |
| 56202L | MR235781 | BRACKET, BRAKE HOSE, LH | 1 | $13.17 | |
| 56202L | MR235783 | BRACKET, BRAKE HOSE, LH | 1 | $16.28 | |
| 56202L | MR307956 | BRACKET, BRAKE HOSE, LH | 1 | $2.81 | |
| 56202R | MR235782 | BRACKET, BRAKE HOSE, RH | 1 | $13.17 | |
| 56202R | MR235784 | BRACKET, BRAKE HOSE, RH | 1 | $16.28 | |
| 56202R | MR307957 | BRACKET, BRAKE HOSE, RH | 1 | $2.81 | |
| 56255 | MR128896 | TUBE, BRAKE M/CYL PRIMARY | 1 | $11.40 | |
| 56256 | MR128897 | TUBE, BRAKE M/CYL SECONDARY | 1 | $9.77 | |
| 56256 | MR128901 | TUBE, BRAKE M/CYL SECONDARY | 1 | $10.66 | |
| 56267L | MR128894 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267L | MR128898 | TUBE, FR BRAKE, LH | 1 | $28.12 | |
| 56267L | MR334701 | TUBE, FR BRAKE, LH | 1 | $24.42 | |
| 56267R | MR128895 | TUBE, FR BRAKE, RH | 1 | $10.80 | |
| 56267R | MR128899 | TUBE, FR BRAKE, RH | 1 | $13.91 | |
| 56267R | MR334702 | TUBE, FR BRAKE, RH | 1 | $11.10 |
