Brake & clutch pedal
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

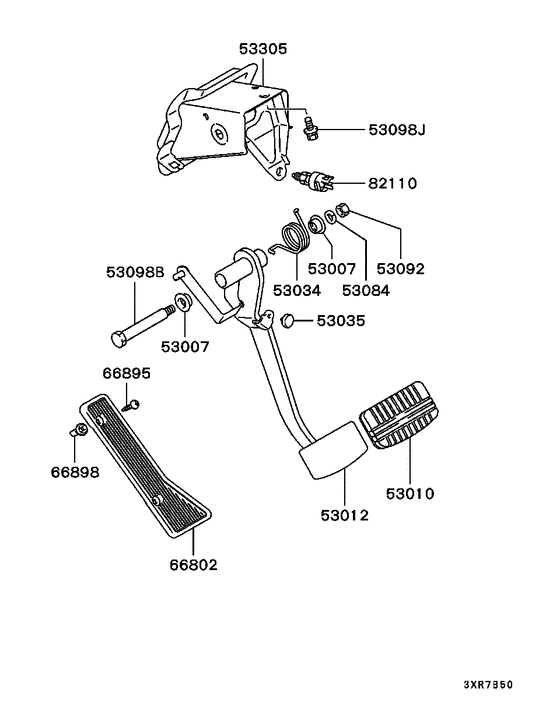

Diagram 7939162
Parts diagram group Brake & clutch pedal in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 53007 | MB316047 | BUSHING, CLUTCH PEDAL | 14x10 | 2 | — |
| 53010 | MA152260 | PAD, BRAKE PEDAL | 61x112 | 1 | $5.01 |
| 53012 | MR150143 | PEDAL, BRAKE | 1 | $99.90 | |
| 53034 | MB366110 | SPRING, BRAKE PEDAL RETURN | 1 | $10.95 | |
| 53035 | MB134911 | STOPPER, BRAKE PEDAL | 1 | — | |
| 53035 | MA306227 | STOPPER, ACCEL PEDAL ARM | 1 | $5.47 | |
| 53084 | MF450406 | WASHER | Spring,10 | 1 | $0.39 |
| 53092 | MF430006 | NUT | 10 | 1 | $1.54 |
| 53098B | MB932520 | BOLT, BRAKE PEDAL | 10x98.5 | 1 | $13.02 |
| 53098J | MS240125 | BOLT, FUEL TANK | Washer assembled,8x20 | 1 | $0.88 |
| 53305 | MR150139 | MEMBER, PEDAL SUPPORT | 1 | $233.84 | |
| 66802 | MR167214 | FOOTREST | 1 | $19.98 | |
| 66895 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 2 | $0.92 |
| 66898 | MU480034 | GROMMET, ABS CONTROL EQUIP | Screw,5 | 2 | $0.86 |
| 82110 | MB229024 | SWITCH, STOP LAMP | 1 | $13.98 |
