Anti-skid brake sensor
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

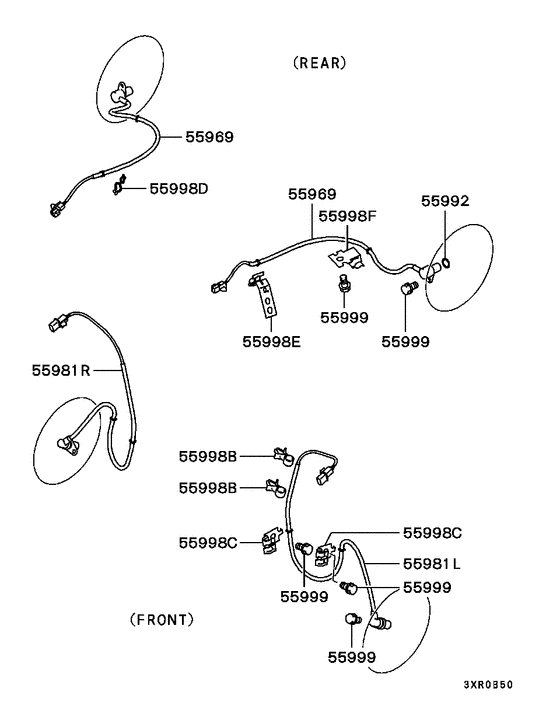

Diagram 7939167
Parts diagram group Anti-skid brake sensor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (11 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 55969 | MR307279 | SENSOR, RR ABS | 2 | $366.91 | |
| 55981L | MR307280 | SENSOR, FR ABS, LH | 1 | $366.91 | |
| 55981R | MR307281 | SENSOR, FR ABS, RH | 1 | $366.91 | |
| 55992 | MB192820 | O-RING, STEERING GEAR INR | 2 | $4.24 | |
| 55998B | MB196151 | CLIP, FUEL LINE | 8 | 4 | $2.60 |
| 55998C | MR249994 | CLIP, ABS EQUIP | 4 | $5.34 | |
| 55998D | MS470375 | CLIP, FUEL VAPOR CONTROL LINE | 6.5-12.5 | 1 | $3.11 |
| 55998E | MR235452 | CLIP, ABS EQUIP | 2 | $3.70 | |
| 55998F | MR235453 | CLIP, ABS EQUIP | 2 | $4.14 | |
| 55999 | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 10 | $0.82 |
| 55999 | MU240147 | BOLT, ABS EQUIP | Washer assembled,8x20 | 1 | — |

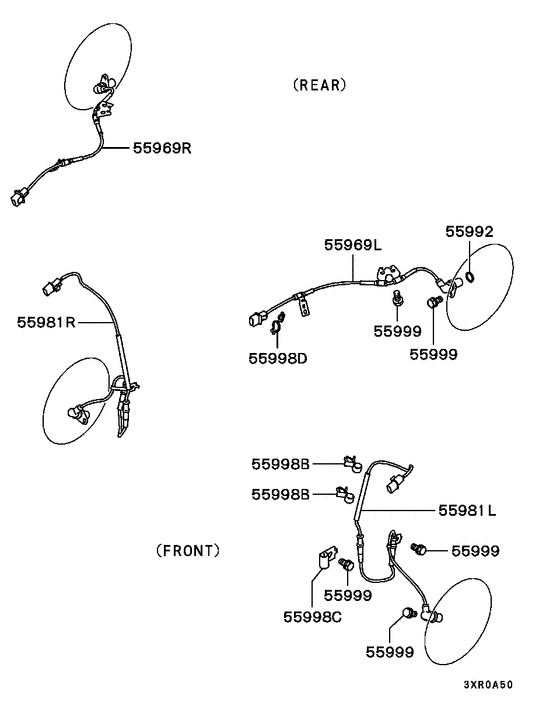

Diagram 7939168
Parts diagram group Anti-skid brake sensor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 55981L | MR307280 | SENSOR, FR ABS, LH | 1 | $366.91 | |
| 55981R | MR307281 | SENSOR, FR ABS, RH | 1 | $366.91 | |
| 55992 | MB192820 | O-RING, STEERING GEAR INR | 2 | $4.24 | |
| 55998B | MB196151 | CLIP, FUEL LINE | 8 | 4 | $2.60 |
| 55998C | MR249994 | CLIP, ABS EQUIP | 4 | $5.34 | |
| 55998D | MS470375 | CLIP, FUEL VAPOR CONTROL LINE | 6.5-12.5 | 1 | $3.11 |
| 55999 | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 10 | $0.82 |
| 55999 | MU240147 | BOLT, ABS EQUIP | Washer assembled,8x20 | 1 | — |
