Wiring & attaching parts
This EPC family contains 5 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

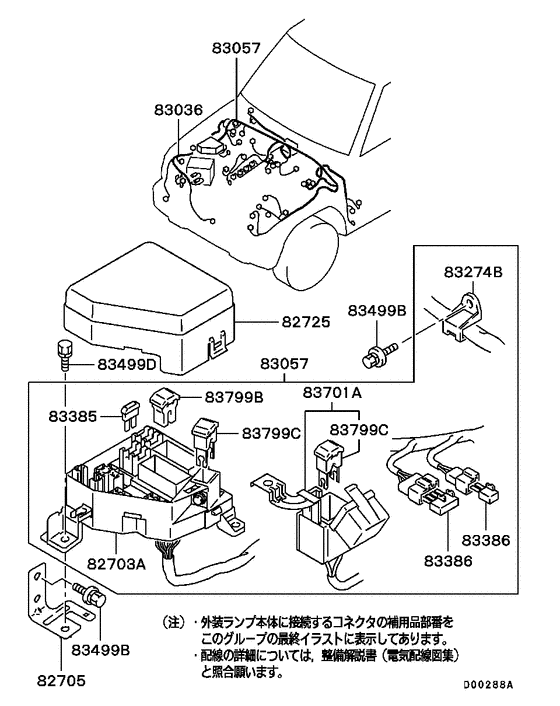

Diagram 7939255
Parts diagram group Wiring & attaching parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (25 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 82703A | MR193626 | BOX ASSY, RELAY | 1 | $96.94 | |
| 82705 | MR182211 | BRACKET, RELAY BOX | 1 | $5.92 | |
| 82705 | MR203486 | BRACKET, RELAY BOX | 1 | $3.70 | |
| 82725 | MR193627 | COVER, RELAY BOX | 1 | — | |
| 83036 | MR277555 | HARNESS, CHASSIS, FR | 1 | $192.40 | |
| 83036 | MR277556 | HARNESS, CHASSIS, FR | 1 | $266.40 | |
| 83057 | MR301802 | HARNESS, ENG | 1 | $1814.40 | |
| 83057 | MR301814 | HARNESS, ENG | 1 | $1872.00 | |
| 83057 | MR409398 | HARNESS, ENG | 1 | $1843.20 | |
| 83274B | MB818619 | CLIP, ENG WIRING | 3 | $3.40 | |
| 83385 | MS810965 | FUSE, SWITCH | Blade type,10a | 1 | $1.23 |
| 83385 | MS810966 | FUSE, BODY WIRING | Blade type,15a | 1 | $2.05 |
| 83386 | MU804010 | DIODE, CHASSIS WIRING | 1.5a,4p | 1 | $42.92 |
| 83386 | MU804011 | DIODE, INSTRUMENT PANEL WIRING | 1.5a,2p | 1 | — |
| 83386 | MU804024 | DIODE, CHASSIS WIRING | 2p | 1 | $7.52 |
| 83499B | MF240025 | BOLT, ENG OIL PUMP INR | Washer assembled,6x16 | 5 | $1.92 |
| 83499B | MS240122 | BOLT, ENG FR MOUNTING | Washer assembled,6x20 | 3 | $0.92 |
| 83499D | MF240025 | BOLT, ENG OIL PUMP INR | Washer assembled,6x16 | 2 | $1.92 |
| 83499D | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
| 83701A | MB894000 | BOX ASSY, FUSIBLE LINK | 60a | 1 | $96.20 |
| 83799B | MU840014 | FUSIBLE LINK | 20a,conn type | 1 | $4.38 |
| 83799B | MU840015 | FUSIBLE LINK | 30a,conn type | 2 | $8.21 |
| 83799B | MU840016 | FUSIBLE LINK | 40a,conn type | 1 | $6.36 |
| 83799C | MU840020 | FUSIBLE LINK | 60a,screw up type | 2 | $7.23 |
| 83799C | MU840021 | FUSIBLE LINK | 80a,screw up type | 1 | $7.90 |

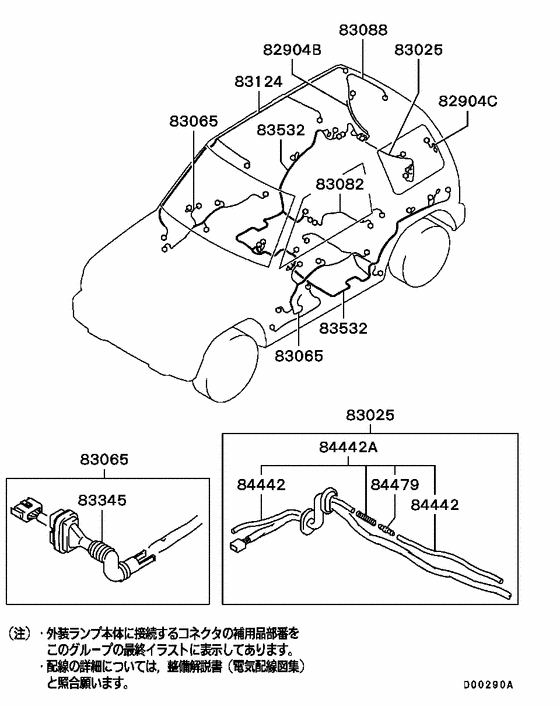

Diagram 7939256
Parts diagram group Wiring & attaching parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (17 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 82904B | MR182214 | CABLE, DEFOGGER | (+) | 1 | $13.02 |
| 82904C | MB314249 | CABLE, DEFOGGER | (-),100 | 1 | $5.62 |
| 83025 | MR193405 | HARNESS, TAILGATE | 1 | $126.54 | |
| 83065 | MR193418 | HARNESS, FR DOOR | Driver side | 1 | $153.92 |
| 83065 | MR193424 | HARNESS, FR DOOR | Passenger side | 1 | $148.00 |
| 83082 | MR182210 | HARNESS, FUEL GAUGE UNIT | 1 | $68.08 | |
| 83124 | MR193429 | HARNESS, ROOM LAMP | 1 | $71.78 | |
| 83345 | MB954882 | GROMMET, DOOR WIRING | 60.5x22 | 2 | $18.50 |
| 83532 | MR301743 | HARNESS, BODY MAIN, RR | 1 | $464.46 | |
| 83532 | MR362284 | HARNESS, BODY MAIN, RR | 1 | $854.67 | |
| 83532 | MR409382 | HARNESS, BODY MAIN, RR | 1 | $848.85 | |
| 84442 | MB140830 | TUBE, BODY WIRING | Rubber,4x10000 | 1 | $45.14 |
| 84442 | MR155358 | TUBE, RR WINDOW WASHER | 4x500 | 1 | $11.54 |
| 84442A | MB113986 | TUBE, BODY WIRING | Rubber,4x1400 | 1 | $7.40 |
| 84442A | MR155364 | TUBE ASSY, RR WINDOW WASHER | 4x3650 | 1 | $11.40 |
| 84479 | MB083730 | JOINT, RR WINDOW WASHER | 1 | $0.60 | |
| 84479 | MB083730 | JOINT, RR WINDOW WASHER | 2 | $0.60 |

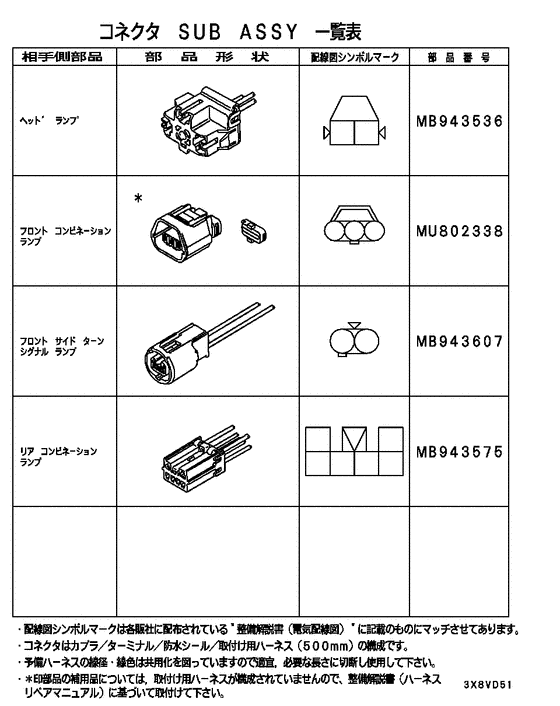

Diagram 7939257
Parts diagram group Wiring & attaching parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list
No part rows were exposed on the catalog page at scrape time — use the live diagram link above.

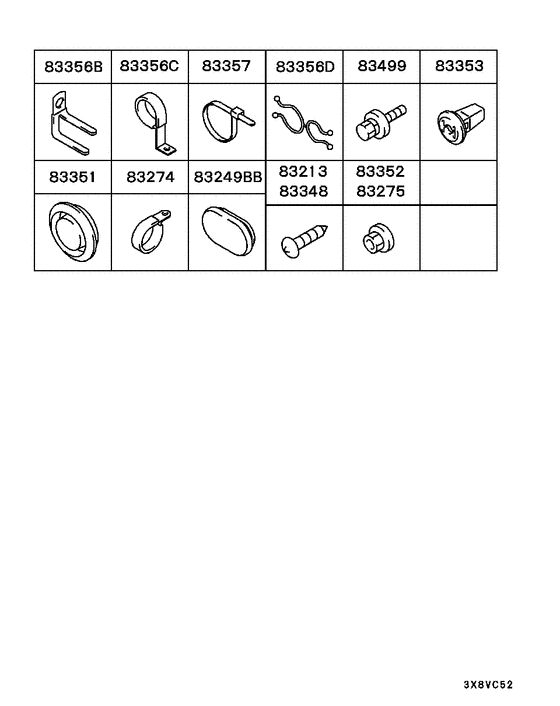

Diagram 7939258
Parts diagram group Wiring & attaching parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (23 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 83213 | MF453091 | SCREW, FUEL FILLER LID LOCKING | 1 | $2.74 | |
| 83249BB | MR182219 | GROMMET, ABS CONTROL EQUIP | 1 | $9.77 | |
| 83274 | MF477029 | CLIP, ENG AIR INTAKE LINE | D=25 | 1 | $1.78 |
| 83274 | MF477030 | CLIP, EMISSION CONTROL EQUIP | D=30 | 1 | $2.96 |
| 83275 | MU431008 | NUT, FR DOOR LOCKING | Washer assembled,6 | 1 | $0.30 |
| 83348 | MF453031 | SCREW 5x12 | Tapping,5x12 | 3 | $0.92 |
| 83348 | MF453045 | SCREW, FUEL FILLER LID LOCKING | Washer assembled,6x12 | 4 | $2.19 |
| 83351 | MU670036 | PLUG, FR DOOR | Plastic,35 | 1 | $4.24 |
| 83352 | MS440502 | NUT, FUEL TANK | Washer assembled,6 | 1 | $0.92 |
| 83352 | MS440512 | NUT, AIR SPOILER | Washer assembled,6 | 1 | $2.46 |
| 83353 | MU480034 | GROMMET, ABS CONTROL EQUIP | Screw,5 | 3 | $0.86 |
| 83356B | MB113038 | CLIP, EMISSION VACUUM CONTROL EQUIP | 6.6-40/55 | 1 | $3.97 |
| 83356C | MF477028 | CLIP, FUEL LINE | D=20 | 1 | $3.01 |
| 83356C | MF477029 | CLIP, ENG AIR INTAKE LINE | D=25 | 1 | $1.78 |
| 83356D | MS470366 | CLIP, FUEL VAPOR CONTROL LINE | 11-15 | 1 | $2.66 |
| 83357 | MB249338 | BAND, ROCKER COVER | L=129.5 | 1 | $2.87 |
| 83357 | MB249339 | BAND, ENG BREATHER | L=169.5 | 1 | $3.83 |
| 83499 | MB133272 | BOLT, ENG BREATHER | Washer assembled,6x12 | 1 | $2.37 |
| 83499 | MB133273 | BOLT, FUEL LINE | Washer assembled,6x16 | 1 | $3.01 |
| 83499 | MF140002 | BOLT, ROCKER COVER | Flange,6x10 | 2 | $1.09 |
| 83499 | MF140202 | BOLT, FLANGE (6x10) | Flange,6x10 | 2 | $1.42 |
| 83499 | MF240025 | BOLT, ENG OIL PUMP INR | Washer assembled,6x16 | 1 | $1.92 |
| 83499 | MU241013 | BOLT, FR SEAT BELT | Washer assembled,6x10 | 1 | $2.37 |

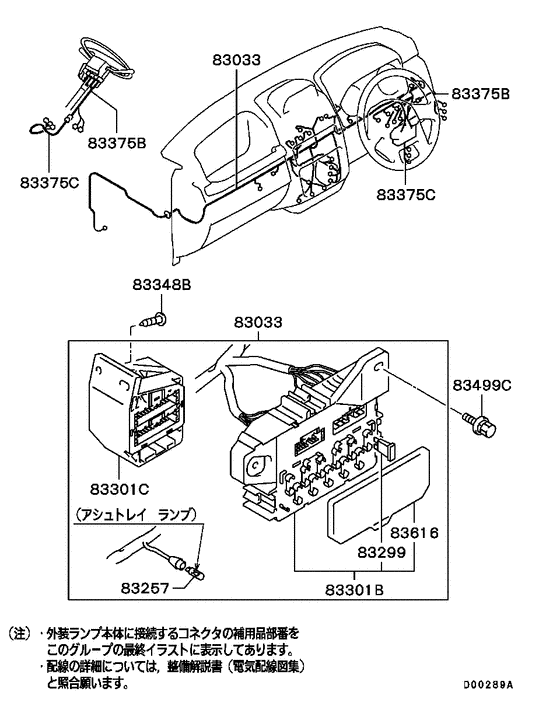

Diagram 7939259
Parts diagram group Wiring & attaching parts in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 83033 | MR277524 | HARNESS, BODY MAIN | 1 | $1198.29 | |
| 83033 | MR277527 | HARNESS, BODY MAIN | 1 | $963.87 | |
| 83033 | MR362241 | HARNESS, BODY MAIN | 1 | $952.22 | |
| 83257 | MS820083 | BULB, GEARSHIFT LINK | 1 | $2.87 | |
| 83299 | MS810965 | FUSE, SWITCH | Blade type,10a | 4 | $1.23 |
| 83299 | MS810966 | FUSE, BODY WIRING | Blade type,15a | 9 | $2.05 |
| 83301B | MR123508 | BLOCK, CHASSIS HARNESS JUNCTION | 1 | $182.04 | |
| 83301C | MR123509 | BLOCK, CHASSIS HARNESS JUNCTION | 1 | $155.40 | |
| 83348B | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 2 | $1.56 |
| 83375B | MR158618 | HARNESS, STEERING WHEEL REMOTE CONTROL | 1 | $133.20 | |
| 83375C | MR158619 | HARNESS, STEERING WHEEL REMOTE CONTROL | 1 | $54.02 | |
| 83375C | MR368462 | HARNESS, STEERING WHEEL REMOTE CONTROL | 1 | $58.46 | |
| 83499C | MB330946 | BOLT, FUEL LINE | Washer assembled,6x20 | 1 | $1.92 |
| 83616 | MB943032 | COVER, FUSE BOX | 1 | $10.95 |
