Windshield wiper & washer
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

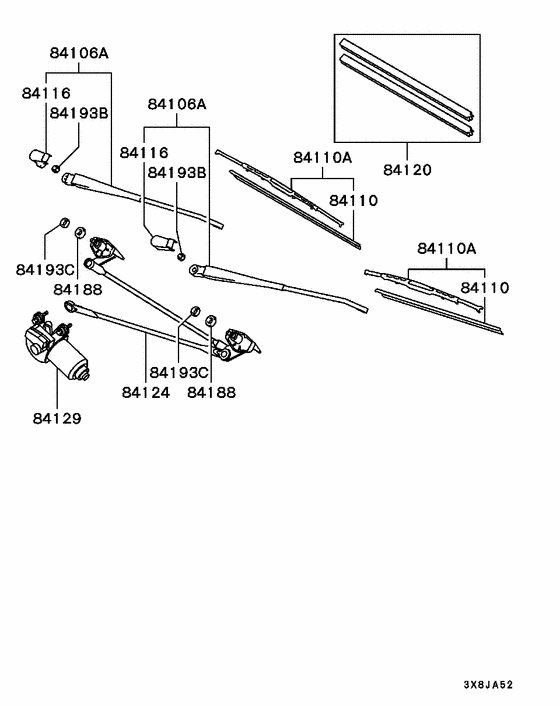

Diagram 7939237
Parts diagram group Windshield wiper & washer in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (20 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 84106A | MR155391 | ARM ASSY, WINDSHIELD WIPER, RH | 1 | $46.62 | |
| 84106A | MR155392 | ARM ASSY, WINDSHIELD WIPER, LH | 1 | $46.62 | |
| 84110 | MB381934 | BLADE, WINDSHIELD WIPER | 450 | 1 | $9.18 |
| 84110 | MR155395 | BLADE, WINDSHIELD WIPER | 400 | 1 | $7.99 |
| 84110 | MR275301 | BLADE, WINDSHIELD WIPER | 450 | 1 | $10.21 |
| 84110 | MR339833 | BLADE, WINDSHIELD WIPER | 400 | 1 | $9.77 |
| 84110A | MB929957 | BLADE ASSY, WINDSHIELD WIPER | 450 | 1 | $44.40 |
| 84110A | MR155393 | BLADE ASSY, WINDSHIELD WIPER, LH | 400 | 1 | $36.26 |
| 84110A | MR339831 | BLADE ASSY, WINDSHIELD WIPER | 400 | 1 | $36.26 |
| 84110A | MR339832 | BLADE ASSY, WINDSHIELD WIPER | 450 | 1 | $44.40 |
| 84110A | MR416760 | BLADE ASSY, WINDSHIELD WIPER | 450 | 1 | $44.40 |
| 84116 | MR221651 | COVER, RR WINDOW WIPER ARM HEAD | 2 | $7.93 | |
| 84120 | MR241438 | BLADE SET, WINDSHIELD WIPER | 1 | $15.73 | |
| 84120 | MR344722 | BLADE SET, WINDSHIELD WIPER | 1 | $17.02 | |
| 84124 | MR155344 | LINK, WINDSHIELD WIPER | 1 | $77.70 | |
| 84129 | MR155342 | MOTOR, WINDSHIELD WIPER | 1 | $314.50 | |
| 84129 | MR155343 | MOTOR, WINDSHIELD WIPER | 1 | $314.50 | |
| 84188 | MB530390 | WASHER, WINDSHIELD WIPER | With/packing,34 | 2 | $15.73 |
| 84193B | MF430005 | NUT, ROCKER COVER | 8 | 2 | $0.82 |
| 84193C | MB261530 | NUT, WINDSHIELD WIPER | Special,18 | 2 | $3.69 |

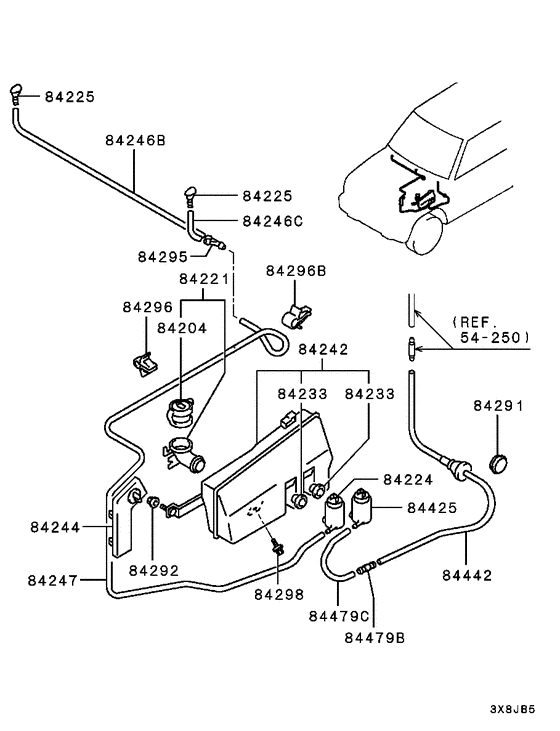

Diagram 7939238
Parts diagram group Windshield wiper & washer in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (25 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 84204 | MB952838 | CAP, WINDSHIELD WASHER TANK FILLER | 1 | — | |
| 84221 | MB929934 | HOSE, WINDSHIELD WASHER TANK FILLER | 1 | $8.44 | |
| 84224 | MB286961 | MOTOR, WINDSHIELD WASHER | 1 | $49.28 | |
| 84224 | 0602101480 | MOTOR, WINDSHIELD WASHER | 1 | — | |
| 84225 | MB615637 | NOZZLE, WINDSHIELD WASHER | 2 | $7.84 | |
| 84233 | MB617937 | GASKET, RR WINDOW WASHER TANK | 2 | — | |
| 84233 | MC845482 | GASKET, WINDSHIELD WASHER MOTOR | 2 | $0.96 | |
| 84242 | MR154276 | TANK, WINDSHIELD WASHER | 1 | $82.88 | |
| 84244 | MU481235 | HOLDER, WINDSHIELD WASHER TUBE | 1 | $1.78 | |
| 84246B | MB084759 | TUBE, WINDSHIELD WASHER MOTOR SIDE | Rubber,4x2000 | 1 | $17.04 |
| 84246C | MB084759 | TUBE, WINDSHIELD WASHER MOTOR SIDE | Rubber,4x2000 | 1 | $17.04 |
| 84247 | MR155357 | TUBE, WINDSHIELD WASHER MOTOR SIDE | Soft vinyl,4x7x1310 | 1 | $10.95 |
| 84292 | MS440502 | NUT, FUEL TANK | Washer assembled,6 | 1 | $0.92 |
| 84295 | MB084419 | JOINT, CHASSIS WIRING | 1 | $1.03 | |
| 84296 | MU481009 | CLIP, WINDSHIELD WASHER | 8 | 1 | $2.60 |
| 84296B | MU481009 | CLIP, WINDSHIELD WASHER | 8 | 1 | $2.60 |
| 84296B | MU481163 | CLIP, WINDSHIELD WASHER | 7 | 1 | $3.15 |
| 84298 | MS240141 | BOLT, FUEL FILLER LID PANEL | Washer assembled,6x16 | 2 | $1.07 |
| 84425 | MB286961 | MOTOR, WINDSHIELD WASHER | 1 | $49.28 | |
| 84425 | 0602101480 | MOTOR, WINDSHIELD WASHER | 1 | — | |
| 84442 | MB140830 | TUBE, BODY WIRING | Rubber,4x10000 | 1 | $45.14 |
| 84442 | MR155358 | TUBE, RR WINDOW WASHER | 4x500 | 1 | $11.54 |
| 84479B | MB083730 | JOINT, RR WINDOW WASHER | 1 | $0.60 | |
| 84479C | MC899203 | JOINT, WINDSHIELD WASHER | 1 | — | |
| 84479C | MR221562 | JOINT, RR WINDOW WASHER | 1 | $2.37 |
