Switch & cigar lighter
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

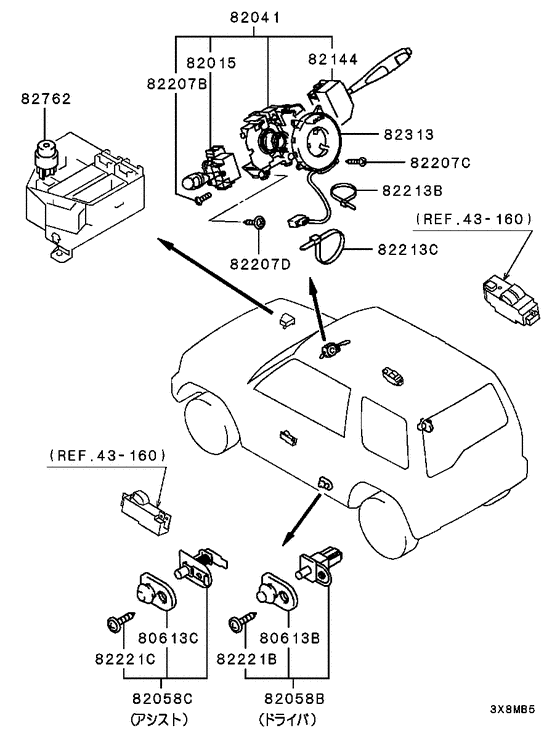

Diagram 7939244
Parts diagram group Switch & cigar lighter in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (19 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 80613B | MB628452 | CAP, DOOR LAMP SWITCH | 1 | $6.29 | |
| 80613C | MB921445 | CAP, DOOR LAMP SWITCH | 1 | $3.85 | |
| 82015 | MR277096 | SWITCH, WINDSHIELD WIPER & WINDSHIELD WASHER | 1 | $155.40 | |
| 82041 | MR194708 | SWITCH, STEERING COLUMN | 1 | $358.18 | |
| 82058B | MB698713 | SWITCH KIT, DOOR LAMP | 1-connector(2p) | 1 | $12.03 |
| 82058C | MB818520 | SWITCH KIT, DOOR LAMP | 1 | $10.12 | |
| 82144 | MR277093 | SWITCH, TURN SIGNAL LAMP & LIGHTING | 1 | $155.95 | |
| 82144 | MR309686 | SWITCH, TURN SIGNAL LAMP & LIGHTING | 1 | $109.44 | |
| 82207B | MF456805 | SCREW, CONSOLE METER | Tapping,3x12 | 4 | $1.25 |
| 82207B | MS200123 | SCREW, ROOM LAMP | Machine tapping,4x16 | 4 | $2.07 |
| 82207C | MF456805 | SCREW, CONSOLE METER | Tapping,3x12 | 4 | $1.25 |
| 82207D | MS350047 | SCREW, STEERING COLUMN COVER | Washer assembled,5x25 | 3 | $2.07 |
| 82213B | MB249338 | BAND, ROCKER COVER | L=129.5 | 1 | $2.87 |
| 82213B | MB249340 | BAND, FUEL TANK PROTECTOR | L=219.5 | 1 | $2.74 |
| 82213C | MB249340 | BAND, FUEL TANK PROTECTOR | L=219.5 | 1 | $2.74 |
| 82221B | MB383490 | SCREW, RR PILLAR GARNISH | Tapping,5x14 | 1 | $2.60 |
| 82221C | MB383490 | SCREW, RR PILLAR GARNISH | Tapping,5x14 | 1 | $2.60 |
| 82313 | MB852973 | RING, STEERING COLUMN SWITCH SLIP | 1 | $195.62 | |
| 82762 | MB084670 | RELAY, ENG CONTROL EQUIP | 1 | $23.44 |

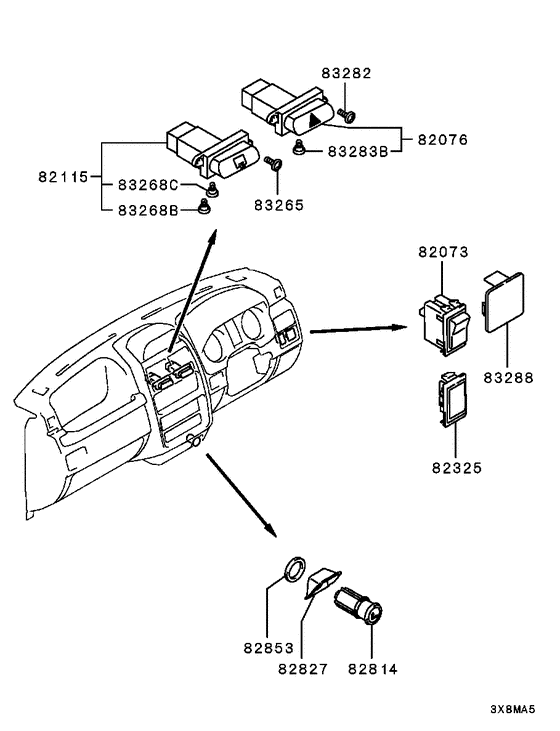

Diagram 7939245
Parts diagram group Switch & cigar lighter in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (12 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 82073 | MB604499 | SWITCH, FR FOG LAMP | 1 | — | |
| 82076 | MR206095 | SWITCH, HAZARD WARNING LAMP | 1 | $52.54 | |
| 82115 | MR216494 | SWITCH, RR WINDOW DEFOGGER | 1 | $52.54 | |
| 82325 | MB170289 | COVER, RR WINDOW DEFOGGER SWITCH BLIND | 1 | $5.32 | |
| 82814 | MB357424 | CIGAR LIGHTER, INSTRUMENT PANEL | 1 | $40.36 | |
| 82827 | MB562544 | PROTECTOR, CIGAR LIGHTER | 1 | $10.67 | |
| 82853 | MT365613 | WASHER, CIGAR LIGHTER | Plain,25 | 1 | $3.56 |
| 83265 | MB409435 | SCREW, INSTRUMENT PANEL | Tapping,4x10 | 2 | $3.28 |
| 83268B | MR480300 | BULB, RR WINDOW DEFOGGER WIRING | 12v-0.98w | 1 | $2.81 |
| 83268C | MR480299 | BULB, RR WINDOW DEFOGGER WIRING | 12v-0.42w | 1 | $2.81 |
| 83282 | MB409435 | SCREW, INSTRUMENT PANEL | Tapping,4x10 | 2 | $3.28 |
| 83283B | MR480297 | BULB, HAZARD LAMP WIRING | 14v-0.56w | 1 | $2.81 |
