Speaker
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

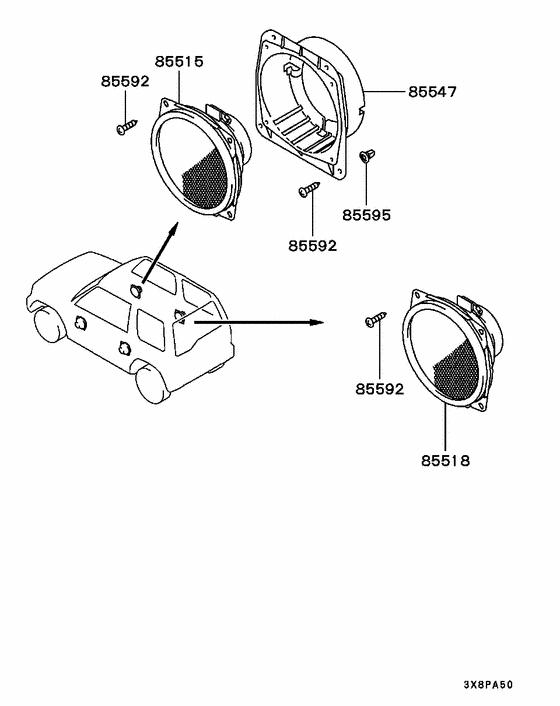

Diagram 7939249
Parts diagram group Speaker in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 85515 | MR172419 | SPEAKER, FR DOOR | 15w,16cm | 2 | $104.34 |
| 85518 | MR142014 | SPEAKER, RR SHELF | 15w,16cm | 2 | $136.12 |
| 85547 | MR159749 | COVER, FR DOOR SPEAKER | 2 | $19.24 | |
| 85592 | MF453031 | SCREW 5x12 | Tapping,5x12 | 24 | $0.92 |
| 85595 | MU480034 | GROMMET, ABS CONTROL EQUIP | Screw,5 | 8 | $0.86 |
