Room lamp
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

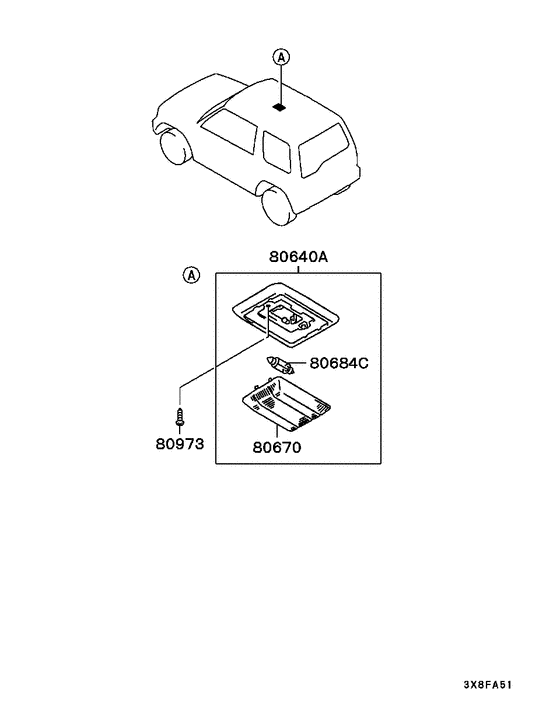

Diagram 7939236
Parts diagram group Room lamp in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 80640A | MR720757 | LAMP ASSY, ROOM, FR | Lens sw,12v-8w | 1 | $38.48 |
| 80670 | MB337964 | LENS, ROOM LAMP | Lens sw | 1 | $8.70 |
| 80684C | MF820512 | BULB, OVERHEAD CONSOLE | 12v-10w | 1 | $2.85 |
| 80684C | MF820513 | BULB, ROOM LAMP | 1 | $3.04 | |
| 80973 | MS450928 | SCREW, ROOM LAMP | Tapping,5x16 | 2 | $3.56 |
