Relay,flasher & sensor
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

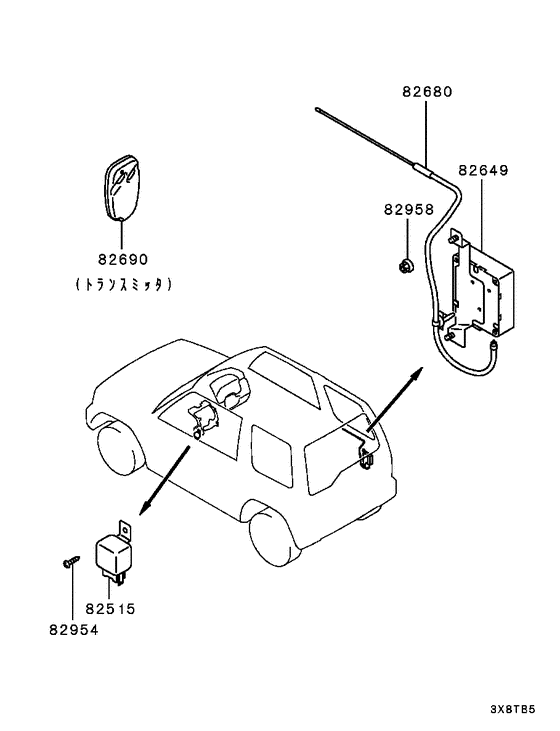

Diagram 7939252
Parts diagram group Relay,flasher & sensor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 82515 | MB685019 | CONTROL UNIT, DOOR | G8d-114m-2b | 1 | $162.79 |
| 82649 | MR318459 | RECEIVER, KEYLESS ENTRY | 1 | $516.88 | |
| 82680 | MR213529 | ANTENNA, KEYLESS ENTRY RECEIVER | 1 | $79.18 | |
| 82954 | MF453031 | SCREW 5x12 | Tapping,5x12 | 1 | $0.92 |
| 82958 | MS440522 | NUT, FUEL TANK | Washer assembled,6 | 2 | $0.84 |

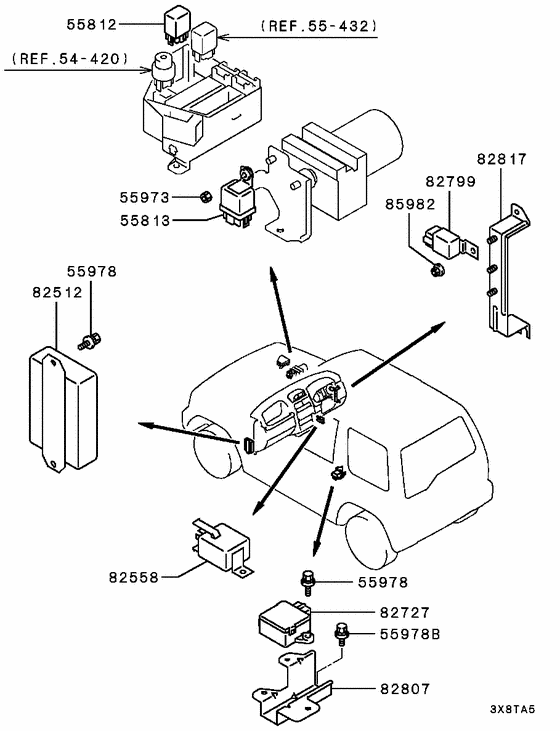

Diagram 7939253
Parts diagram group Relay,flasher & sensor in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 55812 | MB183865 | RELAY | 20a/12v,g8ms-1a24t-r-f13 | 1 | $35.65 |
| 55813 | MB184198 | RELAY, ENG CONTROL EQUIP | 056700-5431 | 1 | $43.09 |
| 55973 | MS440502 | NUT, FUEL TANK | Washer assembled,6 | 1 | $0.92 |
| 55978 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 4 | $1.31 |
| 55978B | MF243623 | BOLT, FLYWHEEL HOUSING | Washer assembled,6x14 | 2 | $2.74 |
| 82512 | MR289899 | CONTROL UNIT, ABS | 1 | $1886.40 | |
| 82512 | MR307256 | CONTROL UNIT, ABS | 0deaa8 | 1 | $1944.00 |
| 82558 | MB627892 | FLASHER UNIT, HAZARD & TURN SIGNAL LAMP | 1 | — | |
| 82558 | MB627891 | FLASHER UNIT, HAZARD & TURN SIGNAL LAMP | 1 | $41.72 | |
| 82727 | MR228716 | G-SENSOR | 1 | $340.70 | |
| 82799 | MB627895 | RELAY | G8ms-1a24t-r-n20 | 2 | $23.94 |
| 82799 | MB629081 | RELAY | 1 | — | |
| 82807 | MR182152 | BRACKET, G-SENSOR | 1 | $11.69 | |
| 82817 | MB628497 | BRACKET, AUTO DOOR LOCK RELAY | 1 | $6.81 | |
| 85982 | MS440522 | NUT, FUEL TANK | Washer assembled,6 | 2 | $0.84 |
