Rear window wiper & washer
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

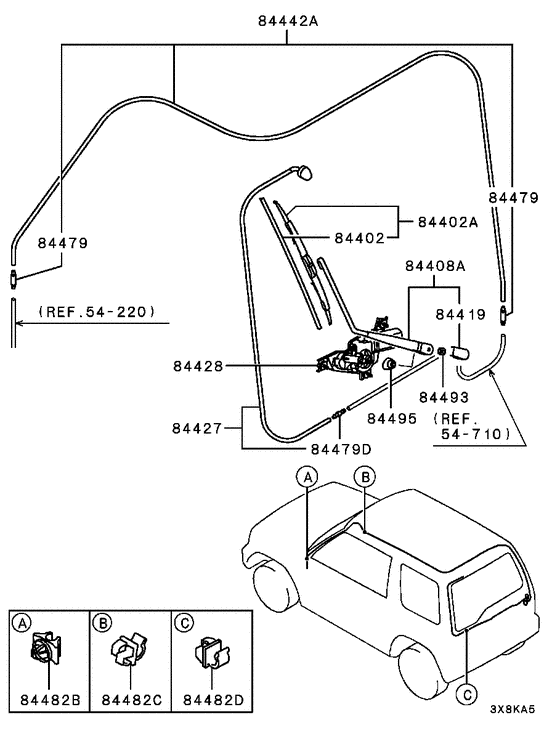

Diagram 7939239
Parts diagram group Rear window wiper & washer in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 84402 | MB639957 | BLADE, RR WINDOW WIPER | 350 | 1 | — |
| 84402A | MR154352 | BLADE ASSY, WINDSHIELD WIPER | 350 | 1 | $26.68 |
| 84408A | MR155390 | ARM ASSY, RR WINDOW WIPER | 1 | $51.98 | |
| 84419 | MB330448 | COVER, RR WINDOW WIPER ARM HEAD | 1 | $5.06 | |
| 84427 | MR155363 | NOZZLE, RR WINDOW WASHER | 1 | — | |
| 84428 | MR155349 | MOTOR, RR WINDOW WIPER | 1 | $307.22 | |
| 84442A | MB113986 | TUBE, BODY WIRING | Rubber,4x1400 | 1 | $7.40 |
| 84442A | MR155364 | TUBE ASSY, RR WINDOW WASHER | 4x3650 | 1 | $11.40 |
| 84479 | MB083730 | JOINT, RR WINDOW WASHER | 1 | $0.60 | |
| 84479 | MB083730 | JOINT, RR WINDOW WASHER | 2 | $0.60 | |
| 84479D | MB171570 | JOINT, RR WINDOW WASHER | 1 | $5.06 | |
| 84482B | MB952475 | CLIP, WINDSHIELD WASHER | 7 | 1 | $3.11 |
| 84482D | MU481009 | CLIP, WINDSHIELD WASHER | 8 | 1 | $2.60 |
| 84493 | MF430004 | NUT, ENG OIL PAN | 6 | 1 | $0.98 |
| 84495 | MB623536 | GROMMET, RR WINDOW WIPER | 8 | 1 | $8.89 |
