Rear exterior lamp
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

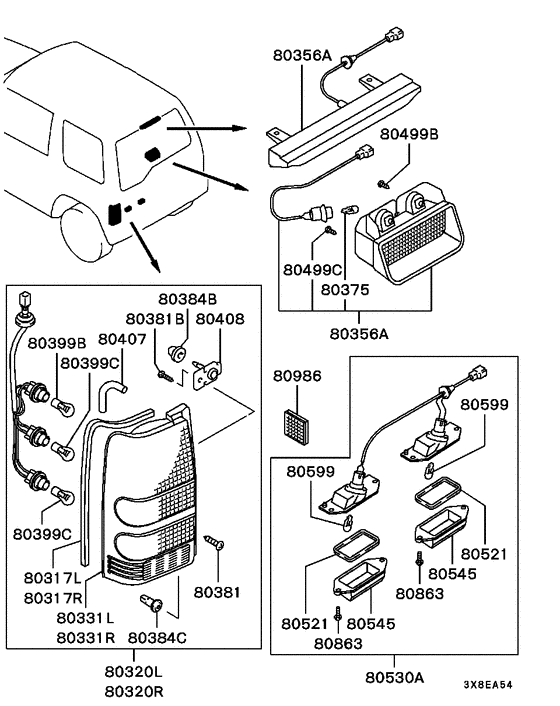

Diagram 7939235
Parts diagram group Rear exterior lamp in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (24 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 80317L | MR221897 | GASKET, RR COMBINATION LAMP, LH | 1 | $7.70 | |
| 80317R | MR221898 | GASKET, RR COMBINATION LAMP, RH | 1 | — | |
| 80320L | MR179989 | LAMP KIT, COMBINATION, RR LH | 12v-21/5w,21w | 1 | $261.29 |
| 80320R | MR179990 | LAMP KIT, COMBINATION, RR RH | 12v-21/5w,21w | 1 | $261.29 |
| 80331L | MR221895 | LAMP UNIT, COMBINATION, RR LH | 1 | $202.76 | |
| 80331R | MR221896 | LAMP UNIT, COMBINATION, RR RH | 1 | $202.76 | |
| 80356A | MR155340 | LAMP ASSY, HIGH MOUNTED STOP | Led | 1 | $307.22 |
| 80381 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 4 | $0.92 |
| 80381B | MR155404 | SCREW, TAIL LAMP | 4 | $1.63 | |
| 80384B | MB622930 | GROMMET, FOG LAMP | 14 | 4 | $4.92 |
| 80384C | MU480022 | GROMMET, QTR TRIM | 5 | 4 | $2.57 |
| 80399B | MS820038 | BULB, RR END PANEL GARNISH | 12v-21/5w | 2 | $3.28 |
| 80399C | MS820044 | BULB, RR END PANEL GARNISH | 12v-21w | 4 | — |
| 80399C | MS820046 | BULB, FR LAMP | 12v-21w | 4 | $3.78 |
| 80407 | MR155405 | TUBE, RR COMBINATION LAMP | 2 | $3.70 | |
| 80408 | MR155403 | PIN, TAIL LAMP | 4 | $5.92 | |
| 80499B | MS350143 | SCREW, PARKING BRAKE LEVER | Washer assembled,6x16 | 2 | $2.74 |
| 80499C | MR221852 | SCREW, STOP LAMP | 4x12 | 2 | $1.63 |
| 80521 | MB596502 | GASKET, LICENSE PLATE LAMP LENS | 2 | $1.23 | |
| 80530A | MR155337 | LAMP ASSY, LICENSE PLATE | 12v-5w | 1 | $73.26 |
| 80545 | MB596500 | LENS, LICENSE PLATE LAMP | 2 | $2.42 | |
| 80599 | MS820090 | BULB (12V, 5W) | 12v-5w | 2 | $2.59 |
| 80863 | MF200547 | SCREW, LICENSE PLATE LAMP | 4x12 | 4 | $1.63 |
| 80986 | MR155387 | REFLECTOR | 1 | $8.58 |
