Radio & audio accessories
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

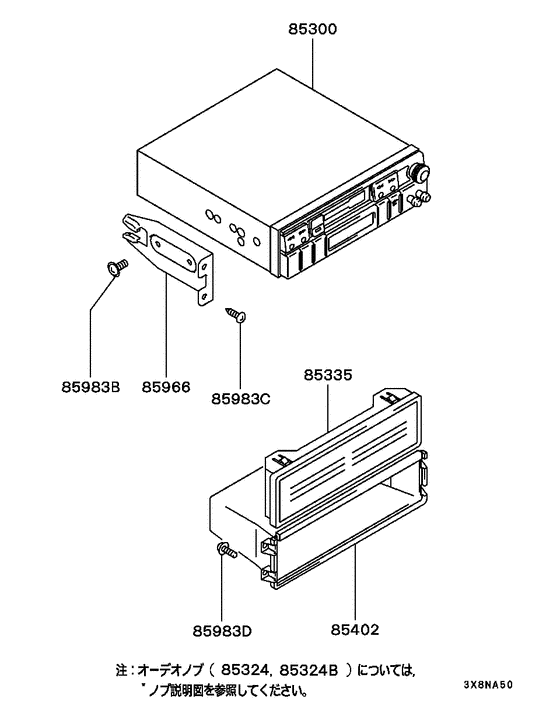

Diagram 7939246
Parts diagram group Radio & audio accessories in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 85300 | MR173090 | RADIO | Am/fm,etr,cas,1din | 1 | — |
| 85324 | MB942690 | KNOB, AUDIO EQUIP | Small,bal/bas/tre | 2 | — |
| 85324 | MB942691 | KNOB, AUDIO EQUIP | Main,vol | 1 | — |
| 85966 | MR168851 | BRACKET, RADIO | 2 | $10.66 | |
| 85983B | MS200329 | SCREW, ENG CONTROL EQUIP | Machine flange,5x8 | 4 | $2.26 |
| 85983C | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 4 | $1.56 |
| 85983D | MB409435 | SCREW, INSTRUMENT PANEL | Tapping,4x10 | 4 | $3.28 |

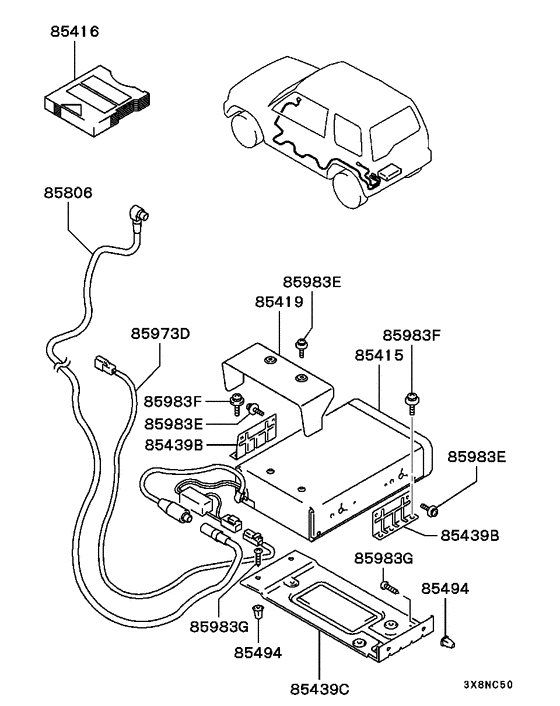

Diagram 7939247
Parts diagram group Radio & audio accessories in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (3 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 85983E | MF350984 | SCREW, STEERING WHEEL | Washer assembled,4t,4x10 | 6 | $1.04 |
| 85983F | MS200322 | SCREW, RADIATOR GRILLE | Machine flange,6x16 | 3 | $2.05 |
| 85983G | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 4 | $0.92 |

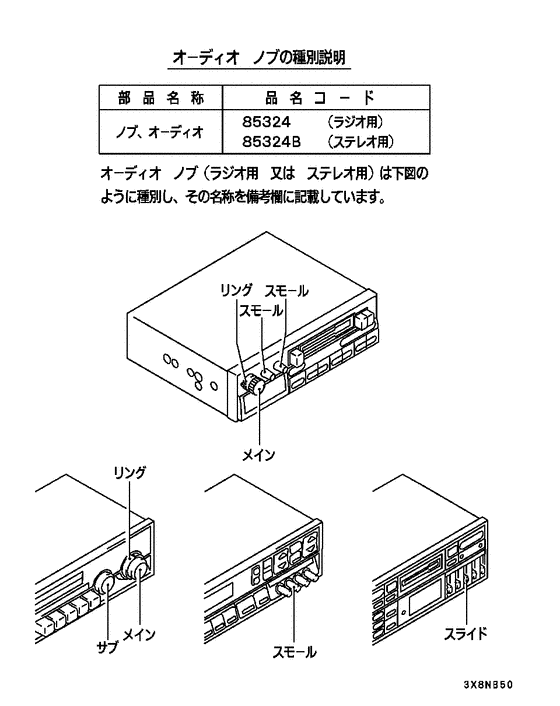

Diagram 7939248
Parts diagram group Radio & audio accessories in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (2 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 85324 | MB942690 | KNOB, AUDIO EQUIP | Small,bal/bas/tre | 2 | — |
| 85324 | MB942691 | KNOB, AUDIO EQUIP | Main,vol | 1 | — |
