Horn & buzzer
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

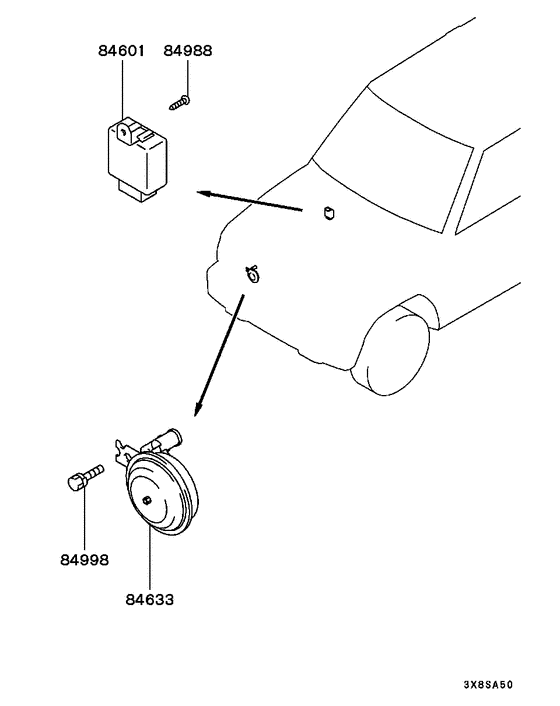

Diagram 7939251
Parts diagram group Horn & buzzer in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 84601 | MR122744 | BUZZER, ELECTRIC | 1 | $108.78 | |
| 84633 | MB530842 | HORN | Low tone | 1 | $72.52 |
| 84633 | MB530850 | HORN | Low tone | 1 | — |
| 84633 | MB881530 | HORN | 1 | $73.19 | |
| 84633 | MB881522 | HORN | Low tone | 1 | $57.46 |
| 84988 | MF453031 | SCREW 5x12 | Tapping,5x12 | 1 | $0.92 |
| 84998 | MS240085 | BOLT, ENG OIL LINE | Washer assembled,8x20 | 1 | $0.99 |
| 84998 | MS240568 | BOLT, BRAKE FLUID LINE | Washer assembled,8x20 | 1 | $2.46 |
