Headlamp
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

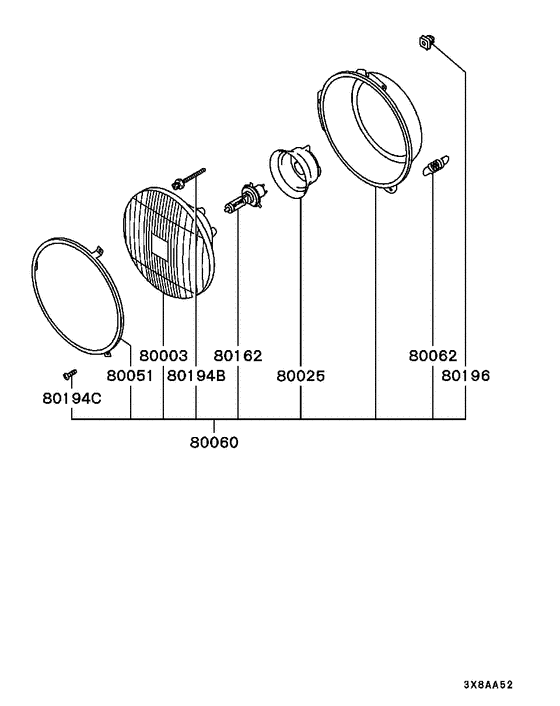

Diagram 7939233
Parts diagram group Headlamp in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 80003 | MR300170 | BODY, HEADLAMP | 2 | — | |
| 80003 | MR387824 | BODY, HEADLAMP | 2 | $145.78 | |
| 80025 | MR300633 | COVER, HEADLAMP BULB SOCKET | 2 | $13.47 | |
| 80051 | MB037821 | RING, HEADLAMP RETAINING | 2 | — | |
| 80060 | MR273698 | HEADLAMP KIT | 12v-60/55w,halogen | 2 | $268.13 |
| 80060 | MR485300 | HEADLAMP KIT | 12v-60/55w,halogen | 2 | $208.68 |
| 80062 | MA198254 | SPRING, HEADLAMP EXTENSION | 2 | $3.56 | |
| 80162 | MS820962 | BULB, HEADLAMP | 12v-60/55w,h4(hb2) | 2 | — |
| 80162 | MZ414275 | BLUB 12VH4 | 2 | $24.62 | |
| 80162 | MS820968 | BULB, HEADLAMP | 12v-60/55w,h4(hb2) | 2 | $21.39 |
| 80194B | MB623200 | SCREW, HEADLAMP | 4 | $4.51 | |
| 80194C | MB414629 | SCREW, HEADLAMP | Machine,4x8 | 6 | $3.83 |
| 80196 | MB196738 | GROMMET, ENG IDLE CONTROL EQUIP | 5 | 4 | $2.32 |
| 80196 | MS480002 | GROMMET, HOOD LOCKING | Screw,5 | 4 | $1.19 |
