Front exterior lamp
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

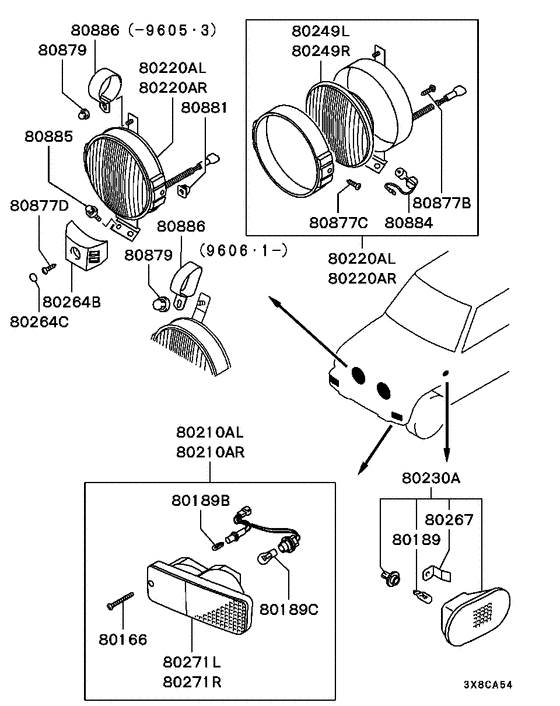

Diagram 7939234
Parts diagram group Front exterior lamp in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (26 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 80166 | MR221903 | SCREW, FR LAMP | 2 | — | |
| 80189 | MS820090 | BULB (12V, 5W) | 12v-5w | 2 | $2.59 |
| 80189B | MS820087 | BULB, HEADLAMP | 12v-5w | 2 | — |
| 80189B | MS820090 | BULB (12V, 5W) | 12v-5w | 2 | $2.59 |
| 80189C | MS820044 | BULB, RR END PANEL GARNISH | 12v-21w | 2 | — |
| 80189C | MS820046 | BULB, FR LAMP | 12v-21w | 2 | $3.78 |
| 80210AL | MR155329 | LAMP ASSY, COMBINATION, FR LH | 12v-21w,5w | 1 | $119.70 |
| 80210AR | MR155330 | LAMP ASSY, COMBINATION, FR RH | 12v-21w,5w | 1 | $102.12 |
| 80220AL | MR300095 | LAMP ASSY, FOG, FR LH | 12v-35w | 1 | $330.51 |
| 80220AR | MR300096 | LAMP ASSY, FOG, FR RH | 12v-35w | 1 | $330.51 |
| 80230A | MB821171 | LAMP ASSY, SIDE TURN SIGNAL, FR | 12v-5w | 2 | $34.88 |
| 80249L | MR221849 | LAMP UNIT, FOG, FR LH | 1 | $177.60 | |
| 80249R | MR221849 | LAMP UNIT, FOG, FR LH | 1 | $177.60 | |
| 80264B | MR155335 | COVER, FR FOG LAMP | 2 | $12.58 | |
| 80267 | MB859363 | HOOK, CORNERING LAMP | 2 | $4.44 | |
| 80271L | MR155385 | LAMP UNIT, COMBINATION, FR LH | 1 | $85.50 | |
| 80271R | MR155386 | LAMP UNIT, COMBINATION, FR RH | 1 | $85.50 | |
| 80877B | MF455499 | SCREW, ROOF LID | Tapping,4x16 | 4 | $2.81 |
| 80877C | MR221820 | SCREW, FOG LAMP | 4 | $2.52 | |
| 80877D | MF455140 | SCREW, RADIATOR GRILLE | Tapping,4x20 | 2 | $2.52 |
| 80879 | MU431001 | NUT, STOP LAMP | Flange cap,6 | 2 | $4.24 |
| 80881 | MS480001 | GROMMET | 4,HOLE=6.7X6.7 | 2 | $1.25 |
| 80884 | MB605858 | BULB, FR LAMP | 12v-35w,w/harness | 2 | $25.16 |
| 80885 | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 4 | $1.31 |
| 80886 | MR300097 | BAND, FOG LAMP | 1 | $13.91 | |
| 80886 | MR300098 | BAND, FOG LAMP | 1 | $13.91 |
