Battery cable & bracket
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

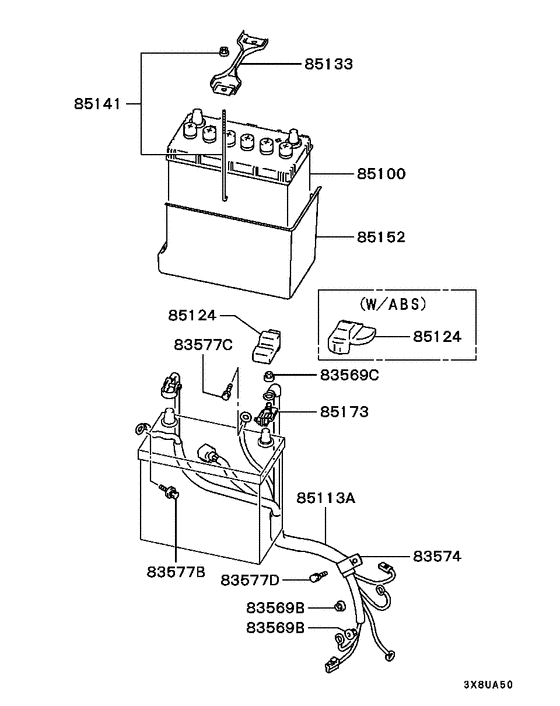

Diagram 7939254
Parts diagram group Battery cable & bracket in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (18 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 83569B | MS440503 | NUT | Washer assembled,8 | 2 | $0.64 |
| 83569C | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 83569C | MU430010 | NUT, BATTERY WIRING | Spring,8 | 1 | $3.56 |
| 83574 | MF477029 | CLIP, ENG AIR INTAKE LINE | D=25 | 1 | $1.78 |
| 83577B | MB239844 | BOLT, RADIATOR | Washer(22) assembled,8x20 | 1 | $3.11 |
| 83577C | MF240022 | BOLT, ROCKER COVER | Washer assembled,6x10 | 1 | $2.05 |
| 83577D | MF240623 | BOLT, AIR CLEANER | Washer assembled,6x12 | 1 | $2.07 |
| 85100 | MA600040 | BATTERY | 46b24r | 1 | — |
| 85100 | MR142810 | BATTERY | 28b17r | 1 | — |
| 85113A | MR182206 | CABLE, BATTERY WIRING | 1 | — | |
| 85124 | MB921699 | CAP, BATTERY TERMINAL | 1 | $8.58 | |
| 85124 | MB954889 | CAP, BATTERY TERMINAL | 1 | $8.58 | |
| 85133 | MT416980 | HOLDER, BATTERY | 185 | 1 | $26.68 |
| 85141 | MB598211 | L-BOLT KIT, BATTERY | 6x187 | 1 | $8.29 |
| 85141 | MR179991 | L-BOLT KIT, BATTERY | 6x233 | 1 | $8.73 |
| 85152 | MB572800 | SEAT, BATTERY | 1 | $22.94 | |
| 85152 | MR158427 | SEAT, BATTERY | 1 | $28.86 | |
| 85173 | MU800966 | TERMINAL, BATTERY | (+),r | 1 | — |
