Antenna & condenser
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

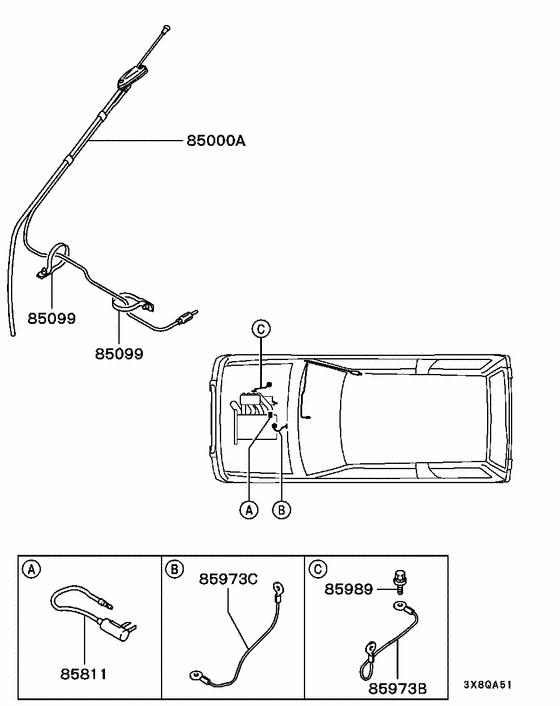

Diagram 7939250
Parts diagram group Antenna & condenser in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 85000A | MR182207 | ANTENNA ASSY | 1 | $84.36 | |
| 85099 | MS470402 | CLIP, WIRING, NO.2 | 2 | $2.87 | |
| 85811 | MS870003 | CONDENSER, NOISE | Connector insert,100 | 1 | — |
| 85973B | MB649566 | CABLE, AUDIO EQUIP | L=250 | 1 | $6.07 |
| 85973C | MB262141 | CABLE, ENG WIRING | L=300 | 1 | $5.33 |
| 85989 | MB133272 | BOLT, ENG BREATHER | Washer assembled,6x12 | 1 | $2.37 |
| 85989 | MB330946 | BOLT, FUEL LINE | Washer assembled,6x20 | 1 | $1.92 |
