Starter
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

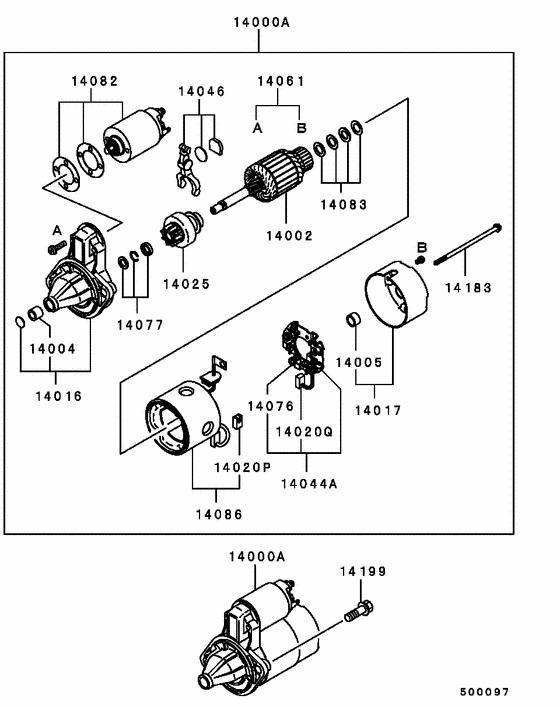

Diagram 7939085
Parts diagram group Starter in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (29 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 14000A | MD180238 | STARTER ASSY | 0.7kw | 1 | $499.41 |
| 14000A | MD192227 | STARTER ASSY | 0.9kw | 1 | $547.56 |
| 14002 | MD618445 | ARMATURE, STARTER | 1 | — | |
| 14002 | MD618595 | ARMATURE, STARTER | 1 | — | |
| 14004 | MD607892 | BEARING, STARTER ARMATURE, FR | 1 | $2.79 | |
| 14005 | MD607903 | BEARING, STARTER ARMATURE, RR | 1 | $2.52 | |
| 14016 | MD618608 | BRACKET, STARTER, FR | 1 | — | |
| 14016 | MD618726 | BRACKET, STARTER, FR | 1 | — | |
| 14017 | MD607927 | BRACKET, STARTER, RR | 1 | — | |
| 14017 | MD611047 | BRACKET, STARTER, RR | 1 | — | |
| 14020P | MD607554 | BRUSH, STARTER | 2 | — | |
| 14020Q | MD607556 | BRUSH, STARTER | 1 | $6.83 | |
| 14025 | MD611372 | CLUTCH, STARTER OVERRUNNING | 1 | $112.98 | |
| 14044A | MD607926 | HOLDER ASSY, STARTER BRUSH | 1 | $23.26 | |
| 14044A | M649T02272 | HOLDER ASSY, STARTER BRUSH | 1 | $23.26 | |
| 14046 | MD607888 | LEVER KIT, STARTER PINION SHIFT | 1 | — | |
| 14046 | MD607921 | LEVER KIT, STARTER PINION SHIFT | 1 | — | |
| 14061 | MD607887 | SCREW SET, STARTER INR | 1 | — | |
| 14076 | MD602210 | SPRING, STARTER BRUSH | 3 | — | |
| 14077 | MD607893 | STOPPER KIT, STARTER PINION | 1 | — | |
| 14082 | MD618543 | SWITCH KIT, STARTER MAGNETIC | 1 | — | |
| 14082 | MD618613 | SWITCH KIT, STARTER MAGNETIC | 1 | — | |
| 14082 | MD618728 | SWITCH KIT, STARTER MAGNETIC | 1 | $116.92 | |
| 14083 | MD607896 | WASHER SET, STARTER ARMATURE, RR | 1 | — | |
| 14086 | MD611366 | YOKE, STARTER | 1 | — | |
| 14086 | MD618609 | YOKE, STARTER | 1 | — | |
| 14183 | MD607922 | BOLT, STARTER INR | 2 | — | |
| 14183 | MD611176 | BOLT, STARTER INR | 2 | — | |
| 14199 | MF140269 | BOLT, ENG RR PLATE | Flange,10x55 | 2 | $2.44 |
