Spark plug,cable & coil
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

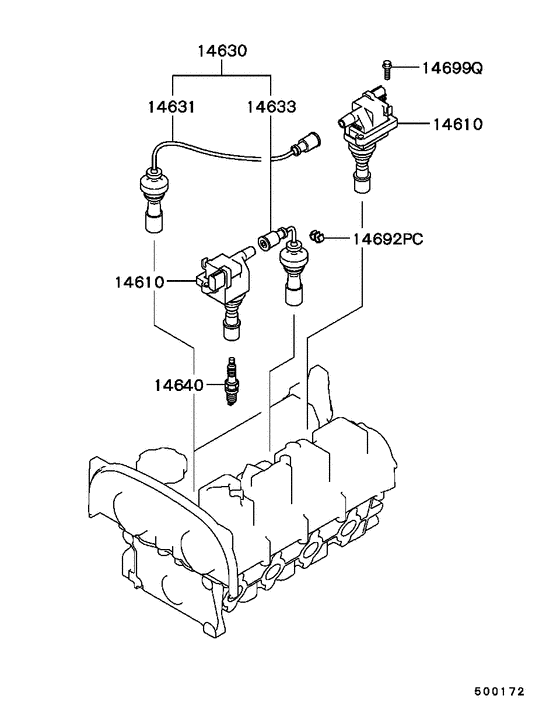

Diagram 7939088
Parts diagram group Spark plug,cable & coil in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (11 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 14610 | MD338017 | COIL, IGNITION | 2 | $240.77 | |
| 14630 | MD311402 | CABLE SET, SPARK PLUG | 1 | $69.08 | |
| 14630 | MD345570 | CABLE SET, SPARK PLUG | 1 | $93.02 | |
| 14631 | MD194606 | CABLE, SPARK PLUG, NO.1 | 1 | $51.98 | |
| 14631 | MD344561 | CABLE, SPARK PLUG, NO.1 | 1 | $58.14 | |
| 14633 | MD194607 | CABLE, SPARK PLUG, NO.3 | 1 | $39.67 | |
| 14633 | MD344562 | CABLE, SPARK PLUG, NO.3 | 1 | $46.51 | |
| 14640 | MS851317 | SPARK PLUG (NGK DCPR7E) | DCPR7E | 4 | $11.76 |
| 14640 | MS851487 | SPARK PLUG (Denso XU22EPR-U) | XU22EPR-U | 1 | — |
| 14692PC | MD197917 | CLAMP, SPARK PLUG CABLE | 1 | — | |
| 14699Q | MF140207 | BOLT, ROCKER COVER | Flange,6x20 | 4 | $0.66 |
