Electrical control
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

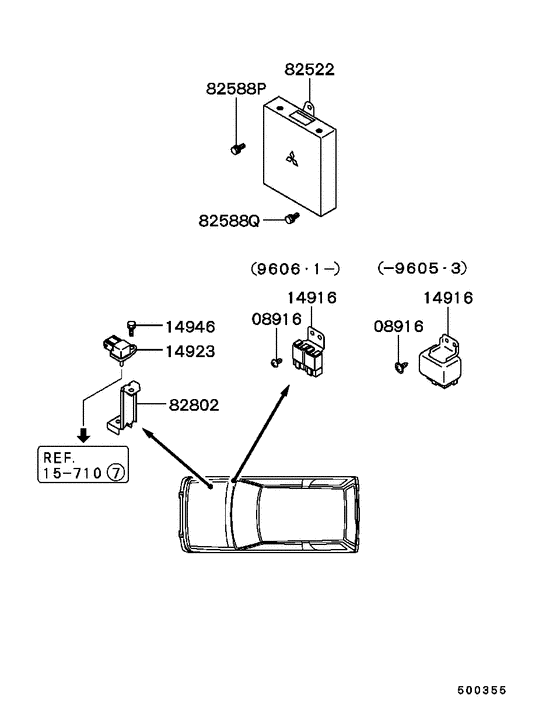

Diagram 7939089
Parts diagram group Electrical control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (11 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 08916 | MF453031 | SCREW 5x12 | Tapping,5x12 | 2 | $0.92 |
| 14916 | MD175834 | RELAY, ENG CONTROL | 1 | $120.38 | |
| 14916 | MR224159 | RELAY, ENG CONTROL | 1 | $48.56 | |
| 14923 | MD190996 | SENSOR, ENG CONTROL BOOST | 1 | $176.12 | |
| 14946 | MS240081 | BOLT, FUEL RETURN LINE | Washer assembled,6x16 | 1 | $3.01 |
| 82522 | MR314087 | CONTROL UNIT, ENG | 1 | $1243.42 | |
| 82522 | MR314749 | CONTROL UNIT, ENG | 1 | $1243.42 | |
| 82588P | MS240141 | BOLT, FUEL FILLER LID PANEL | Washer assembled,6x16 | 1 | $1.07 |
| 82588Q | MB133272 | BOLT, ENG BREATHER | Washer assembled,6x12 | 1 | $2.37 |
| 82588Q | MB330946 | BOLT, FUEL LINE | Washer assembled,6x20 | 1 | $1.92 |
| 82802 | MD323950 | BRACKET, BOOST SENSOR | 1 | $8.44 |

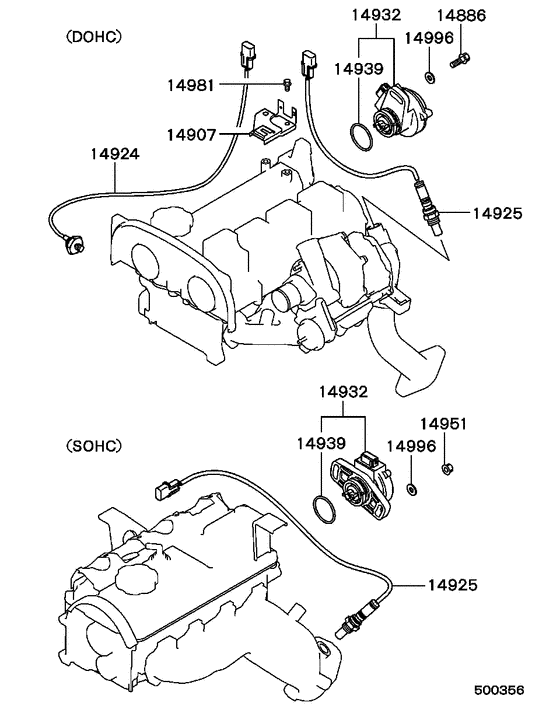

Diagram 7939090
Parts diagram group Electrical control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (9 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 14886 | MF140227 | BOLT, ROCKER COVER | Flange,8x25 | 1 | $0.82 |
| 14907 | MD315595 | BRACKET, OXYGEN SENSOR CONNECTOR | 1 | $19.98 | |
| 14924 | MD190467 | SENSOR, ENG CONTROL KNOCK | 1 | $128.76 | |
| 14925 | MD322498 | SENSOR, ENG CONTROL OXYGEN | 1 | $556.19 | |
| 14932 | MD332280 | SENSOR, ENG CRANK ANGLE | 1 | $910.00 | |
| 14939 | MD611750 | O-RING, DISTRIBUTOR | 1 | — | |
| 14951 | MF434104 | NUT, ROCKER COVER | Flange,8 | 2 | $0.25 |
| 14981 | MF140203 | BOLT, ACCEL CABLE SUPPORT | Flange,6x12 | 1 | $0.64 |
| 14996 | MD308145 | WASHER, DISTRIBUTOR | Plain,8 | 2 | $2.22 |
