Alternator & vacuum pump
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.
Diagram 7939086

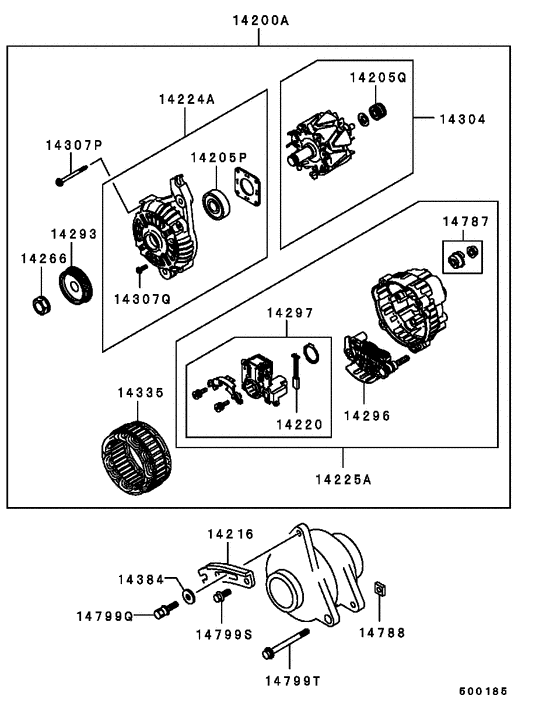

Parts diagram group Alternator & vacuum pump in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 14200A | MD319575 | ALTERNATOR ASSY | 70a | 1 | — |
| 14200A | MD321899 | ALTERNATOR ASSY | 60a | 1 | — |
| 14200A | MD354795 | ALTERNATOR ASSY | 70a | 1 | — |
| 14205P | MD618679 | BEARING, ALTERNATOR ROTOR | 1 | — | |
| 14205P | S930P18870 | Подшипник генератора | 1 | — | |
| 14205Q | MD611928 | BEARING, ALTERNATOR ROTOR | 1 | $13.40 | |
| 14205Q | S930P63670 | Подшипник генератора | 1 | — | |
| 14216 | MD315790 | BRACE, ALTERNATOR ADJUSTING | 1 | — | |
| 14220 | MD618689 | BRUSH, ALTERNATOR | 2 | $13.75 | |
| 14220 | A647X50870 | Brush,alternator | 2 | — | |
| 14224A | MD618853 | BRACKET ASSY, ALTERNATOR, FR | 1 | — | |
| 14225A | MD619133 | BRACKET ASSY, ALTERNATOR, RR | 1 | — | |
| 14225A | MD619134 | BRACKET ASSY, ALTERNATOR, RR | 1 | — | |
| 14225A | MD619493 | BRACKET ASSY, ALTERNATOR, RR | 1 | — | |
| 14266 | MD618927 | NUT KIT, ALTERNATOR PULLEY | 1 | — | |
| 14293 | MD618865 | PULLEY, ALTERNATOR | 1 | — | |
| 14296 | MD618844 | RECTIFIER, ALTERNATOR | 1 | — | |
| 14296 | MD618863 | RECTIFIER, ALTERNATOR | 1 | — | |
| 14296 | MD619494 | RECTIFIER, ALTERNATOR | 1 | — | |
| 14297 | MD618845 | REGULATOR, ALTERNATOR | 1 | — | |
| 14297 | A866X26172 | Alternator Voltage Regulator | 1 | $164.16 | |
| 14297 | MD619491 | REGULATOR, ALTERNATOR | 1 | — | |
| 14304 | MD618841 | ROTOR KIT, ALTERNATOR | 1 | — | |
| 14304 | MD618931 | ROTOR KIT, ALTERNATOR | 1 | — | |
| 14307P | MD611556 | SCREW SET, ALTERNATOR INR | 1 | $4.60 | |
| 14307Q | MD611558 | SCREW SET, ALTERNATOR INR | 1 | $4.17 | |
| 14335 | MD618842 | STATOR, ALTERNATOR | 1 | — | |
| 14335 | MD618932 | STATOR, ALTERNATOR | 1 | — | |
| 14384 | MD001521 | WASHER, TIMING BELT TRAIN | Plain,8.5 | 1 | $3.01 |
| 14787 | MD618749 | NUT, ALTERNATOR INR | 1 | — | |
| 14788 | MD168328 | NUT, ALTERNATOR | Square,8 | 1 | $1.92 |
| 14799Q | MD141329 | BOLT, ALTERNATOR | Flange,8x25 | 1 | — |
| 14799S | MF140225 | BOLT, ENG WATER COOLER | Flange,8x20 | 1 | $0.82 |
| 14799T | MF244869 | BOLT, A/C COMPRESSOR | Washer assembled,8x90 | 1 | $4.10 |
