Ventilation & duct
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

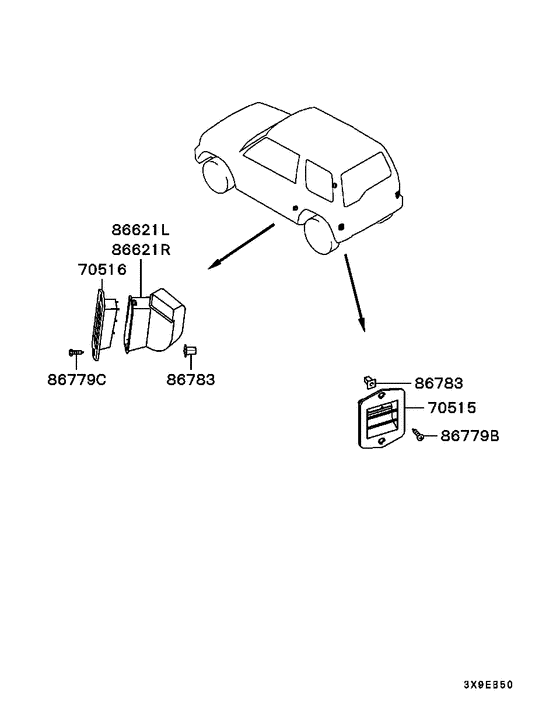

Diagram 7939264
Parts diagram group Ventilation & duct in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 70515 | MR175216 | GARNISH, QTR AIR OUTLET, RR | 2 | $17.02 | |
| 70516 | MR175215 | GARNISH, QTR AIR OUTLET, FR | 2 | $11.54 | |
| 86621L | MR175219 | DUCT, RR VENTILATOR, UPR LH | 1 | $12.88 | |
| 86621R | MR175220 | DUCT, RR VENTILATOR, UPR RH | 1 | $12.88 | |
| 86779B | MF453031 | SCREW 5x12 | Tapping,5x12 | 4 | $0.92 |
| 86779C | MF453685 | SCREW, GLOVEBOX | Tapping,5x12 | 4 | $1.64 |
| 86783 | MU480022 | GROMMET, QTR TRIM | 5 | 8 | $2.57 |

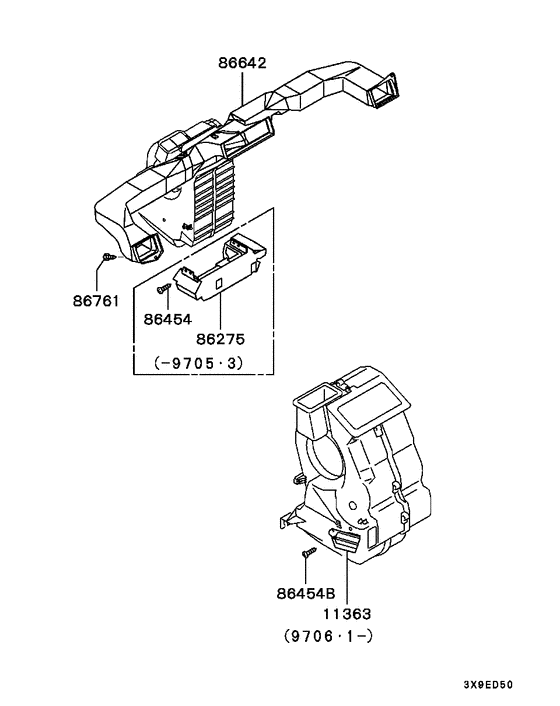

Diagram 7939265
Parts diagram group Ventilation & duct in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (9 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 11363 | MR315811 | PLATE, AIR GUIDE | 1 | $13.62 | |
| 86275 | MR175224 | DUCT, FOOT HEATER | 1 | $33.30 | |
| 86454 | MF453033 | SCREW, TAPPING, 5x16 | Tapping,5x16 | 4 | $1.56 |
| 86454 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 4 | $0.92 |
| 86454B | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 1 | $1.50 |
| 86454B | MF453030 | SCREW, ENG CONTROL EQUIP | Tapping,5x10 | 1 | $0.16 |
| 86642 | MR175223 | DUCT, VENTILATOR AIR DISTRIBUTION | 1 | $71.04 | |
| 86761 | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 4 | $1.50 |
| 86761 | MF453031 | SCREW 5x12 | Tapping,5x12 | 4 | $0.92 |
