Heater unit & piping
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

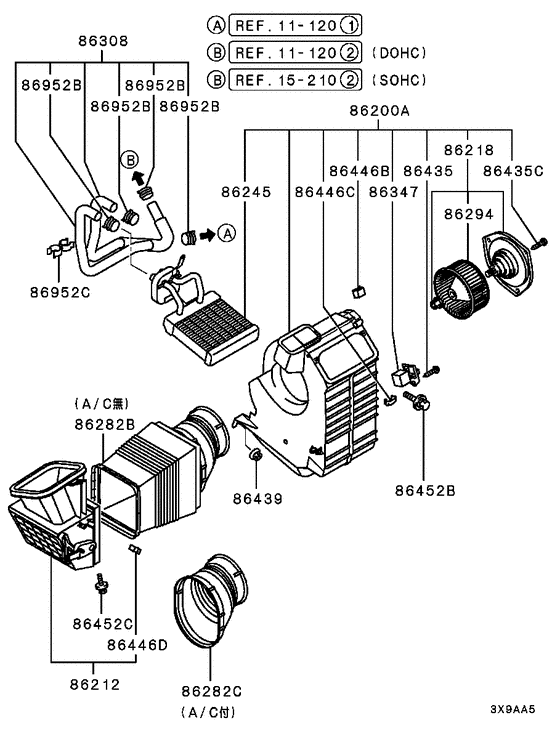

Diagram 7939260
Parts diagram group Heater unit & piping in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (27 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 86200A | MR175200 | HEATER ASSY | 1 | — | |
| 86200A | MR175201 | HEATER ASSY | 1 | $352.35 | |
| 86200A | MR315885 | HEATER ASSY | 1 | $369.82 | |
| 86200A | MR315886 | HEATER ASSY | 1 | $380.02 | |
| 86212 | MB938738 | BOX, HEATER AIR INTAKE | 1 | $125.06 | |
| 86218 | MB878306 | FAN & MOTOR KIT, HEATER | 1 | — | |
| 86218 | MR315394 | FAN & MOTOR KIT, HEATER | 1 | — | |
| 86245 | MR175229 | CORE, HEATER | 1 | — | |
| 86245 | MR175230 | CORE, HEATER | 1 | — | |
| 86245 | MR315888 | CORE, HEATER | 1 | — | |
| 86245 | MR315889 | CORE, HEATER | 1 | — | |
| 86282C | MR175203 | DUCT, HEATER AIR INTAKE | 1 | $14.21 | |
| 86294 | MB938920 | FAN, HEATER BLOWER | 1 | — | |
| 86308 | MR179988 | HOSE KIT, HEATER WATER | 1 | $40.70 | |
| 86347 | MR240349 | RESISTOR, HEATER | 1 | — | |
| 86347 | MR315395 | RESISTOR, HEATER | 1 | — | |
| 86435 | MF453317 | SCREW, RR SIDE TRIM | Tapping,4x12 | 1 | $2.07 |
| 86435C | MF205004 | SCREW, HEATER | Machine cone point,4x16 | 3 | $1.63 |
| 86439 | MS440503 | NUT | Washer assembled,8 | 2 | $0.64 |
| 86439 | MS440513 | NUT, FR SEAT | Washer assembled,8 | 2 | $2.19 |
| 86446B | MR116199 | CLIP, HEATER | 2 | $2.13 | |
| 86446C | MB081308 | CLIP, RR HEATER | 8 | — | |
| 86446D | MB657037 | CLIP, HEATER | 1 | $3.26 | |
| 86452B | MF243649 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x16 | 1 | $0.45 |
| 86452C | MS240142 | BOLT, FUEL TANK | Washer assembled,6x20 | 1 | $0.98 |
| 86952B | MU660002 | CLIP, RR HEATER PIPING | 17.8 | 4 | $2.19 |
| 86952C | MU481250 | CLIP, HEATER PIPING | 20.2 | 1 | $2.37 |

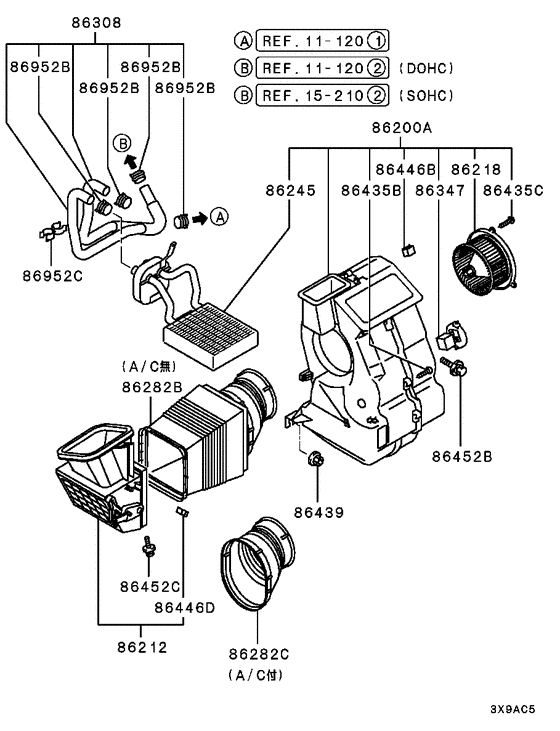

Diagram 7939261
Parts diagram group Heater unit & piping in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (25 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 86200A | MR175200 | HEATER ASSY | 1 | — | |
| 86200A | MR175201 | HEATER ASSY | 1 | $352.35 | |
| 86200A | MR315885 | HEATER ASSY | 1 | $369.82 | |
| 86200A | MR315886 | HEATER ASSY | 1 | $380.02 | |
| 86212 | MB938738 | BOX, HEATER AIR INTAKE | 1 | $125.06 | |
| 86218 | MB878306 | FAN & MOTOR KIT, HEATER | 1 | — | |
| 86218 | MR315394 | FAN & MOTOR KIT, HEATER | 1 | — | |
| 86245 | MR175229 | CORE, HEATER | 1 | — | |
| 86245 | MR175230 | CORE, HEATER | 1 | — | |
| 86245 | MR315888 | CORE, HEATER | 1 | — | |
| 86245 | MR315889 | CORE, HEATER | 1 | — | |
| 86282C | MR175203 | DUCT, HEATER AIR INTAKE | 1 | $14.21 | |
| 86308 | MR179988 | HOSE KIT, HEATER WATER | 1 | $40.70 | |
| 86347 | MR240349 | RESISTOR, HEATER | 1 | — | |
| 86347 | MR315395 | RESISTOR, HEATER | 1 | — | |
| 86435B | MB899699 | SCREW, A/C | 4x16 | 10 | $0.60 |
| 86435C | MF205004 | SCREW, HEATER | Machine cone point,4x16 | 3 | $1.63 |
| 86439 | MS440503 | NUT | Washer assembled,8 | 2 | $0.64 |
| 86439 | MS440513 | NUT, FR SEAT | Washer assembled,8 | 2 | $2.19 |
| 86446B | MR116199 | CLIP, HEATER | 2 | $2.13 | |
| 86446D | MB657037 | CLIP, HEATER | 1 | $3.26 | |
| 86452B | MF243649 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x16 | 1 | $0.45 |
| 86452C | MS240142 | BOLT, FUEL TANK | Washer assembled,6x20 | 1 | $0.98 |
| 86952B | MU660002 | CLIP, RR HEATER PIPING | 17.8 | 4 | $2.19 |
| 86952C | MU481250 | CLIP, HEATER PIPING | 20.2 | 1 | $2.37 |
