Heater control
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

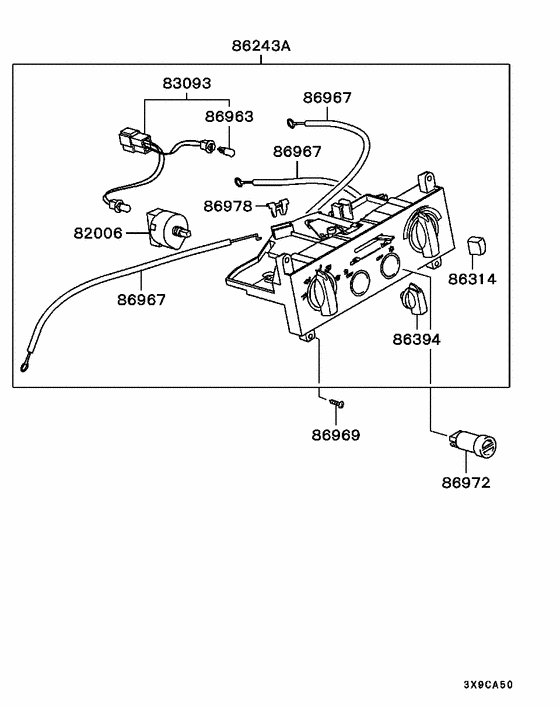

Diagram 7939262
Parts diagram group Heater control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 82006 | MR175228 | SWITCH, HEATER BLOWER | 1 | $36.25 | |
| 83093 | MR175239 | HARNESS, INSTRUMENT PANEL PILOT LAMP | 1 | $14.36 | |
| 86243A | MR175210 | CONTROLLER ASSY, HEATER | 1 | $171.68 | |
| 86243A | MR315311 | CONTROLLER ASSY, HEATER | 1 | $165.76 | |
| 86243A | MR315877 | CONTROLLER ASSY, HEATER | 1 | $170.20 | |
| 86314 | MR240144 | KNOB, HEATER CONTROL LEVER | 1 | $5.03 | |
| 86394 | MR175237 | KNOB, HEATER CONTROL LEVER | 1 | $4.92 | |
| 86963 | MR240145 | BULB, HEATER CONTROL EQUIP | W/blue cap | 2 | $6.02 |
| 86967 | MR175225 | WIRE, HEATER CONTROL EQUIP | Mode,321 | 1 | $7.40 |
| 86967 | MR175226 | WIRE, HEATER CONTROL EQUIP | Temp,299 | 1 | $6.66 |
| 86967 | MR175227 | WIRE, HEATER CONTROL EQUIP | Outside-inside,528 | 1 | $8.88 |
| 86967 | MR315879 | WIRE, HEATER CONTROL EQUIP | Mode,399 | 1 | $7.55 |
| 86967 | MR315880 | WIRE, HEATER CONTROL EQUIP | Temp,374 | 1 | $7.40 |
| 86969 | MB409438 | SCREW, STEERING COLUMN COVER | Tapping,5x16 | 4 | $2.83 |
| 86978 | MB298639 | CLIP, FR CTR VENTILATION | 5.2 | 3 | $1.50 |
