Defroster nozzle & duct
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

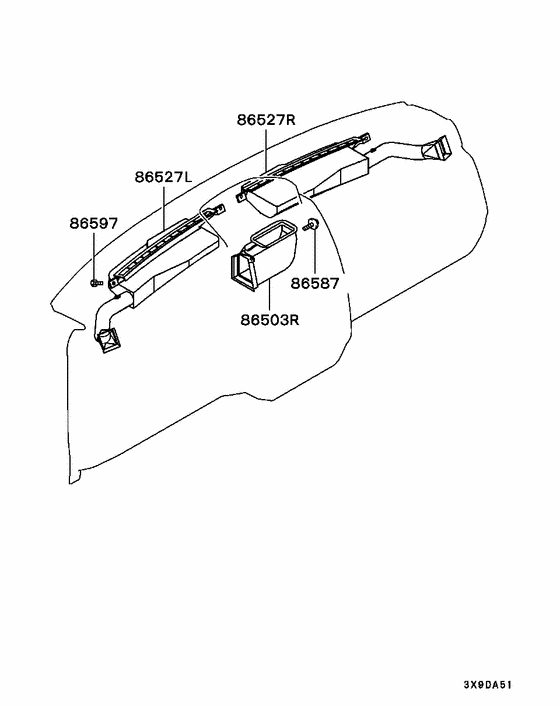

Diagram 7939263
Parts diagram group Defroster nozzle & duct in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 86503R | MR175214 | DUCT, DEFROSTER, RH | 1 | $20.72 | |
| 86527L | MR175211 | NOZZLE, DEFROSTER, LH | 1 | $44.40 | |
| 86527R | MR175212 | NOZZLE, DEFROSTER, RH | 1 | $44.40 | |
| 86587 | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 2 | $1.50 |
| 86587 | MB409438 | SCREW, STEERING COLUMN COVER | Tapping,5x16 | 2 | $2.83 |
| 86597 | MB409437 | SCREW, STEERING COLUMN COVER | Tapping,5x12 | 6 | $1.50 |
| 86597 | MF453031 | SCREW 5x12 | Tapping,5x12 | 6 | $0.92 |
