A/c unit(manual:a)
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

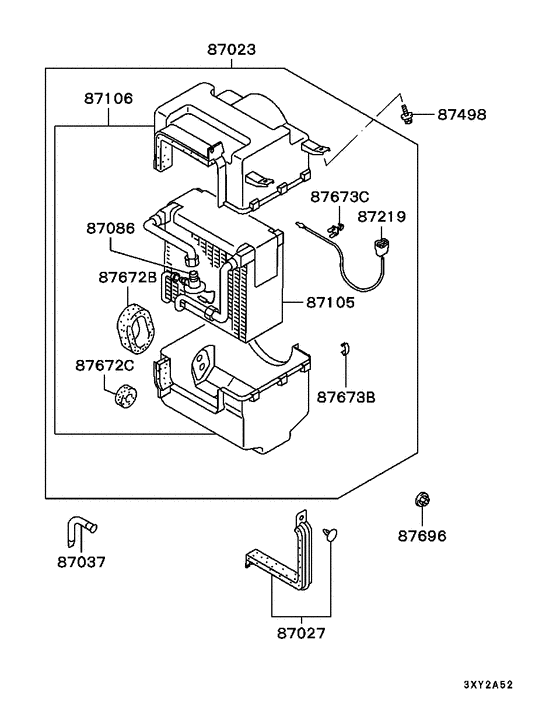

Diagram 7939266
Parts diagram group A/c unit(manual:a) in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (16 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 87023 | MR175150 | COOLING UNIT, A/C | 1 | — | |
| 87027 | MR175174 | DUCT, A/C JOINT | 1 | — | |
| 87037 | MB568711 | HOSE, A/C EVAPORATOR DRAIN | 1 | — | |
| 87037 | MR298852 | HOSE, A/C EVAPORATOR DRAIN | 1 | — | |
| 87086 | MB938878 | VALVE, A/C EXPANSION | 1 | — | |
| 87105 | MR240151 | EVAPORATOR, A/C | 1 | — | |
| 87106 | MR240150 | CASE, A/C | 1 | — | |
| 87219 | MB879575 | SENSOR, A/C AIR INLET | 1 | — | |
| 87498 | MS240145 | BOLT, ENG CONTROL EQUIP | Washer assembled,8x20 | 2 | $1.21 |
| 87672B | MR240152 | GROMMET, A/C | 1 | — | |
| 87672C | MR240153 | GROMMET, A/C | 1 | — | |
| 87673B | MB081308 | CLIP, RR HEATER | 6 | — | |
| 87673B | MR270770 | CLIP, RR HEATER | 6 | $1.78 | |
| 87673C | MB899521 | CLIP, HEATER CONTROL EQUIP | 1 | $3.56 | |
| 87696 | MS440513 | NUT, FR SEAT | Washer assembled,8 | 1 | $2.19 |
| 87696 | MS440523 | NUT, FUEL TANK | Washer assembled,8 | 1 | $2.57 |
