A/c cond, piping(manual:a)
This EPC family contains 5 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

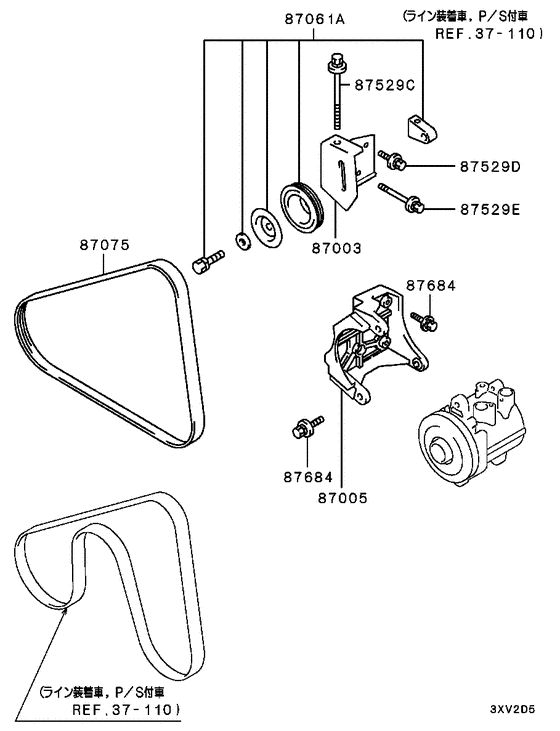

Diagram 7939267
Parts diagram group A/c cond, piping(manual:a) in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 87005 | MR175166 | BRACKET, A/C COMPRESSOR | 1 | — | |
| 87529C | MU240142 | BOLT, A/C DRIVING | 1 | — | |
| 87529D | MF241253 | BOLT, CRANKCASE | Washer assembled,8x20 | 2 | $2.60 |
| 87529E | MF241268 | BOLT, ENG OIL PAN | Washer assembled,8x75 | 1 | $1.37 |
| 87684 | MF244855 | BOLT, COOLING FAN | Washer assembled,8x30 | 7 | $2.87 |

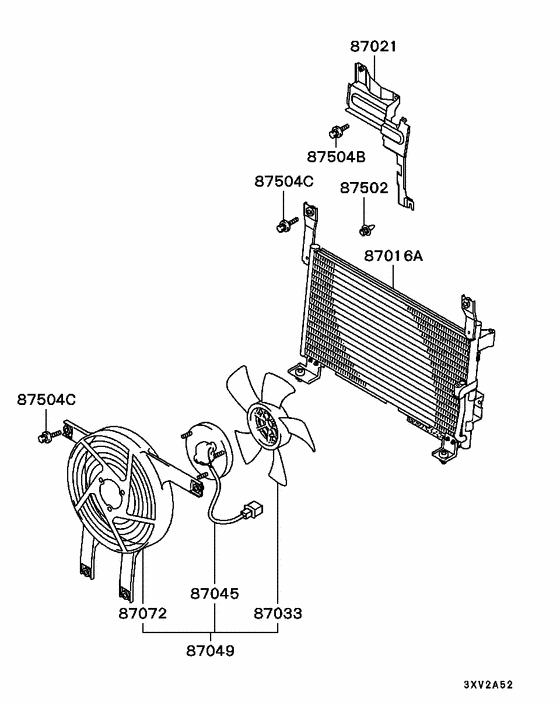

Diagram 7939268
Parts diagram group A/c cond, piping(manual:a) in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (9 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 87016A | MR175151 | CONDENSER ASSY, A/C REFRIGERANT | 1 | — | |
| 87021 | MR117679 | BRACKET, A/C CONDENSER | 1 | $13.32 | |
| 87033 | MR206785 | FAN, A/C CONDENSER | 1 | — | |
| 87045 | MR240149 | MOTOR, A/C CONDENSER FAN | 1 | — | |
| 87049 | MR270391 | MOTOR & SHROUD, A/C CONDENSER FAN | 1 | $459.00 | |
| 87072 | MR270392 | SHROUD, A/C CONDENSER FAN | 1 | — | |
| 87502 | MR108632 | CLIP, AIR SPOILER | 6 | 1 | $1.48 |
| 87504B | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 2 | $1.31 |
| 87504C | MS240603 | BOLT, RR BUMPER | Washer assembled,6x25 | 6 | $2.74 |

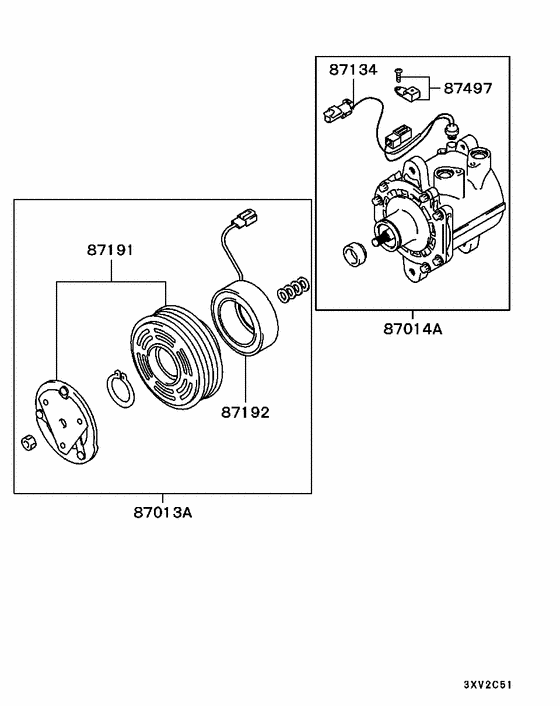

Diagram 7939269
Parts diagram group A/c cond, piping(manual:a) in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (6 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 87013A | MR298554 | CLUTCH ASSY, A/C COMPRESSOR | 1 | — | |
| 87014A | MB938870 | COMPRESSOR ASSY, A/C | 1 | $1910.48 | |
| 87134 | MR308322 | THERMOSTAT, A/C | 1 | — | |
| 87191 | MR308325 | ROTOR & ARMATURE KIT, A/C COMPRESSOR | 1 | — | |
| 87192 | MR308323 | COIL, A/C COMPRESSOR | 1 | — | |
| 87497 | MR308321 | BRACKET, A/C | 1 | — |

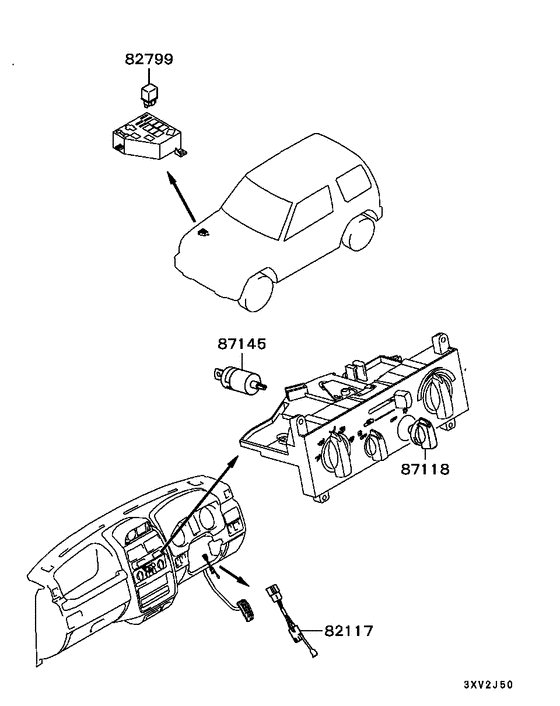

Diagram 7939270
Parts diagram group A/c cond, piping(manual:a) in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (4 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 82799 | MB627895 | RELAY | G8ms-1a24t-r-n20 | 2 | $23.94 |
| 82799 | MB629081 | RELAY | 1 | — | |
| 87118 | MR175237 | KNOB, HEATER CONTROL LEVER | 1 | $4.92 | |
| 87145 | MR175169 | SWITCH, A/C | 1 | — |

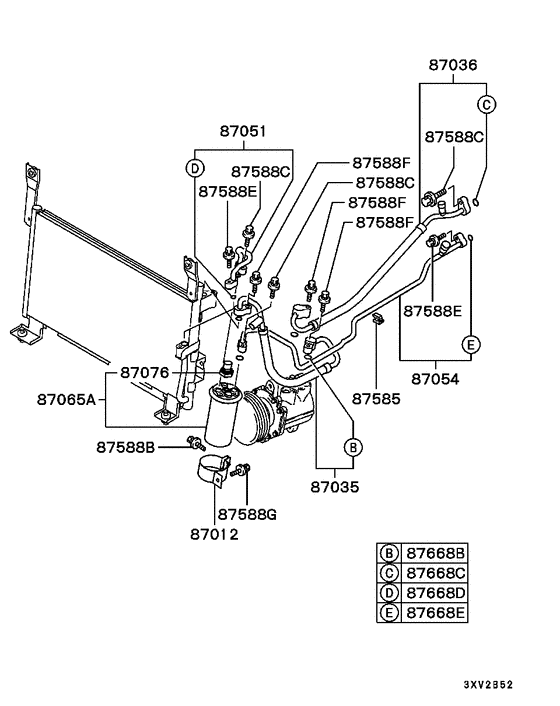

Diagram 7939271
Parts diagram group A/c cond, piping(manual:a) in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (18 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 87012 | MR175157 | BRACKET, A/C RECEIVER | 1 | — | |
| 87035 | MR175158 | HOSE, A/C COMPRESSOR DISCHARGE | 1 | — | |
| 87036 | MR250973 | HOSE, A/C COMPRESSOR SUCTION | 1 | — | |
| 87051 | MR175160 | PIPE, A/C CONDENSER OUTLET | 1 | — | |
| 87054 | MR175162 | PIPE, A/C RECEIVER OUTLET | 1 | — | |
| 87065A | MR250138 | RECEIVER ASSY, A/C | 1 | — | |
| 87076 | MB276842 | SWITCH, A/C REFRIGERANT PIPE PRESSURE | 2 | — | |
| 87585 | MU481044 | CLIP, WINDSHIELD WASHER | 8 | 1 | $1.62 |
| 87588B | MF243626 | BOLT, ENG WIRING | Washer assembled,6x20 | 1 | $3.42 |
| 87588B | MF244228 | BOLT, A/C PIPING | Washer assembled,6x25 | 1 | $1.92 |
| 87588C | MF243628 | BOLT, CONNROD | Washer assembled,6x25 | 4 | $0.55 |
| 87588E | MF243655 | BOLT, ROCKER COVER | Washer assembled,8x30 | 2 | $0.74 |
| 87588F | MF243657 | BOLT, TIMING POWER TRAIN CASE | Washer assembled,8x35 | 2 | $0.82 |
| 87588G | MS240121 | BOLT, CONNROD | Washer assembled,6x16 | 1 | $1.31 |
| 87668B | MB946605 | O-RING, RR A/C | 1/2 | 2 | $1.37 |
| 87668C | MR146634 | O-RING, A/C PIPING | 5/8 | 2 | $0.88 |
| 87668D | MB946604 | O-RING, RR A/C | 2 | $1.01 | |
| 87668E | MB946604 | O-RING, RR A/C | 2 | $1.01 |
