Turbocharger & supercharger
This EPC family contains 3 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

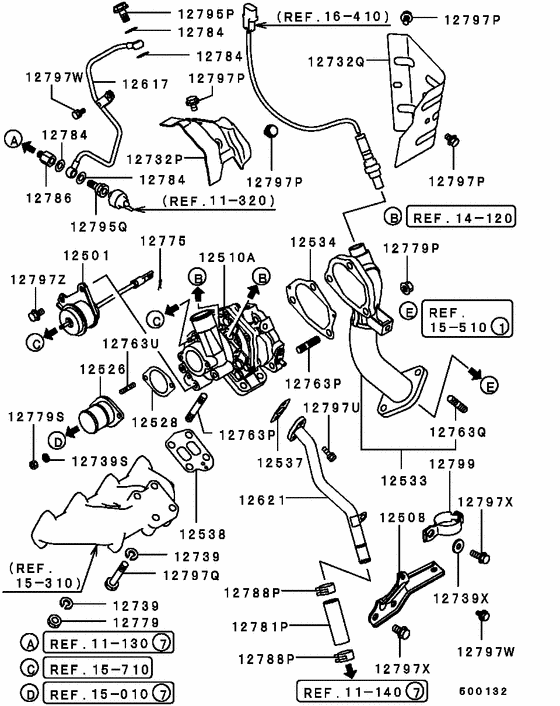

Diagram 7939076
Parts diagram group Turbocharger & supercharger in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (37 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 12501 | MR323354 | ACTUATOR, T/C WASTE GATE | 1 | $242.72 | |
| 12508 | MR160975 | BRACKET, T/C OIL RETURN TUBE SUPPORT | 1 | $17.02 | |
| 12510A | MR312650 | TURBOCHARGER SUB ASSY | 1 | $3312.00 | |
| 12526 | MR188662 | FITTING, T/C AIR INLET | 1 | $28.86 | |
| 12528 | MD308425 | GASKET, T/C AIR INLET FITTING | 1 | $2.85 | |
| 12533 | MR188663 | FITTING, T/C EXHAUST OUTLET | 1 | $236.80 | |
| 12534 | MR464019 | GASKET, T/C EXHAUST OUTLET FITTING | 1 | $8.50 | |
| 12537 | MD151499 | GASKET, T/C OIL RETURN TUBE, CTR | 1 | $3.69 | |
| 12538 | MR431200 | GASKET, T/C EXHAUST GAS INLET HOLE | 1 | $13.68 | |
| 12617 | MD300548 | TUBE, T/C OIL FEED | 1 | $40.70 | |
| 12621 | MD300549 | TUBE, T/C OIL RETURN | 1 | $59.20 | |
| 12732P | MD301284 | PROTECTOR, T/C | 1 | $31.08 | |
| 12732Q | MR188666 | PROTECTOR, T/C | 1 | $10.80 | |
| 12739 | MD050076 | WASHER, EXHAUST MANIFOLD | Plain,10 | 4 | $1.07 |
| 12739S | MF450404 | WASHER, ENG OIL PAN | Spring,6 | 2 | $0.62 |
| 12739X | MF450154 | WASHER, ENG FR MOUNTING | Plain,8 | 1 | $0.66 |
| 12763P | MD143890 | STUD, T/C | 10x12 | 3 | $6.66 |
| 12763Q | MD143890 | STUD, T/C | 10x12 | 2 | $6.66 |
| 12763U | MS401402 | STUD, T/C INR | 6x16 | 2 | $1.78 |
| 12775 | MF472303 | PIN, HOIST CONTROL LINK | Snap,6x21.2 | 1 | $1.03 |
| 12779 | MD050073 | NUT, EXHAUST MANIFOLD | Jam,10 | 2 | $4.29 |
| 12779P | MD132930 | NUT, T/C | Flange,10 | 3 | $4.10 |
| 12779S | MF430004 | NUT, ENG OIL PAN | 6 | 2 | $0.98 |
| 12781P | MD012433 | HOSE, T/C | 15.5x70 | 1 | $10.81 |
| 12784 | MF660063 | GASKET, CYLINDER HEAD PLUG | D=10 | 4 | $0.43 |
| 12786 | MR212765 | JOINT, T/C | 1 | $9.92 | |
| 12788P | MS660172 | CLIP, ENG OIL PAN | D=23 | 2 | $1.13 |
| 12795P | MD199686 | EYEBOLT, T/C | 10x20 | 1 | $6.66 |
| 12795Q | MD196129 | EYEBOLT, T/C | 10x20 | 1 | $6.66 |
| 12797P | MD067956 | BOLT, EXHAUST MANIFOLD | Flange,8x12 | 4 | $1.42 |
| 12797Q | MD302754 | BOLT, T/C | 10x58 | 2 | $3.70 |
| 12797U | MF241225 | BOLT, ROCKER COVER | Washer assembled,6x16 | 2 | $1.01 |
| 12797W | MF140204 | BOLT, ACCEL CABLE SUPPORT | Flange,6x14 | 2 | $0.62 |
| 12797X | MD079009 | BOLT, CATALYTIC CONVERTER | Flange,8x25 | 1 | $2.37 |
| 12797X | MF140257 | BOLT, M/T CASE | Flange,10x18 | 2 | $0.92 |
| 12797Z | MF240051 | BOLT, ROCKER COVER | Washer assembled,8x16 | 2 | $0.82 |
| 12799 | MD195263 | CLAMP, T/C | 1 | $10.80 |

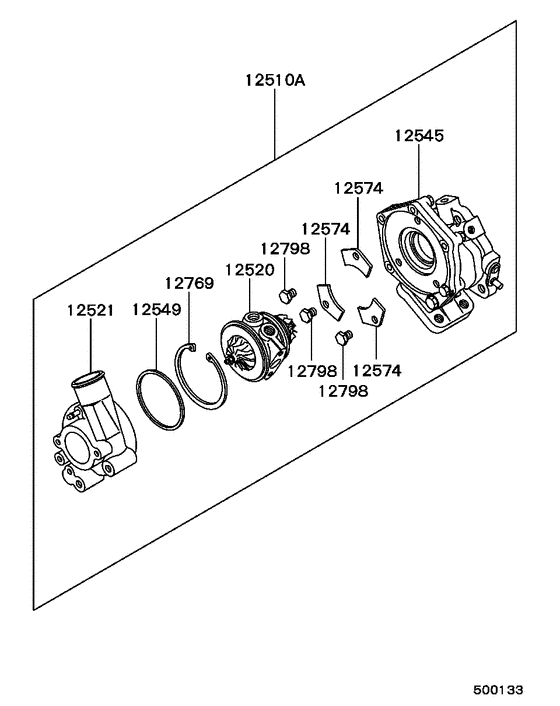

Diagram 7939077
Parts diagram group Turbocharger & supercharger in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 12510A | MR312650 | TURBOCHARGER SUB ASSY | 1 | $3312.00 | |
| 12520 | MD613083 | CARTRIDGE, T/C | 1 | $1800.00 | |
| 12521 | MD613044 | COVER, T/C COMPRESSOR | 1 | $499.41 | |
| 12545 | MD613064 | HOUSING, T/C TURBINE | 1 | $988.62 | |
| 12549 | MD613031 | SHIM, T/C CARTRIDGE | 1 | $6.84 | |
| 12574 | MD613037 | PLATE, T/C BOLT LOCK | 3 | $46.62 | |
| 12769 | MD613032 | SNAP RING, T/C INR | 1 | $56.77 | |
| 12798 | MD613036 | BOLT, T/C INR | 3 | $38.48 |

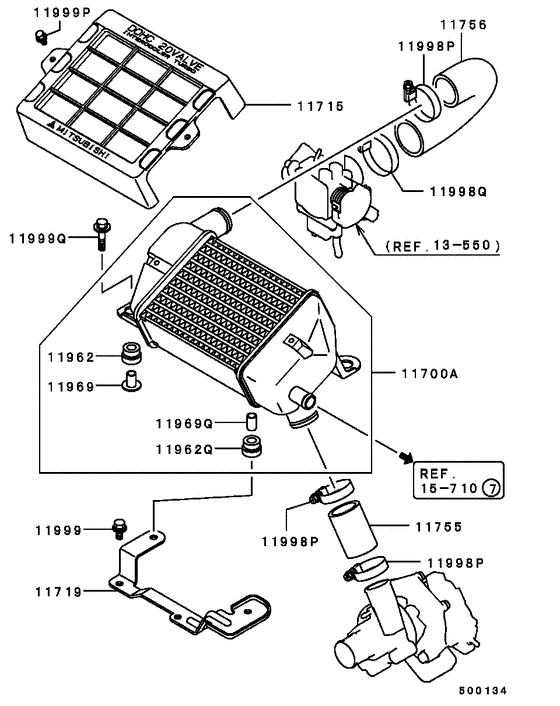

Diagram 7939078
Parts diagram group Turbocharger & supercharger in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 11700A | MR204571 | INTER COOLER ASSY | 1 | $875.06 | |
| 11715 | MR239053 | COVER, INTER COOLER | 1 | $54.76 | |
| 11719 | MR187186 | BRACKET, INTER COOLER | 1 | $65.86 | |
| 11755 | MR187183 | HOSE, INTER COOLER INTAKE AIR | 1 | $23.26 | |
| 11756 | MR187184 | HOSE, INTER COOLER OUTLET AIR | 1 | $59.51 | |
| 11962 | MR239515 | INSULATOR, ENG AIR INTAKE LINE | 2 | $9.03 | |
| 11962Q | MD081488 | CUSHION, INTER COOLER BRACKET | 1 | $4.38 | |
| 11969 | MR239516 | COLLAR, ENG AIR INTAKE LINE | 2 | $5.18 | |
| 11969Q | MD081525 | COLLAR, INTER COOLER BRACKET | 1 | $9.99 | |
| 11998P | MD133956 | CLAMP, ENG AIR INTAKE LINE | 50 | 3 | $10.40 |
| 11998Q | MD140823 | CLAMP, ENG AIR INTAKE LINE | 58 | 1 | $3.90 |
| 11999 | MF243649 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x16 | 2 | $0.45 |
| 11999P | MR481475 | BOLT, ENG AIR INTAKE LINE | Washer assembled | 2 | $4.10 |
| 11999Q | MF247257 | BOLT, FUEL LINE | Washer assembled,8x35 | 3 | $2.60 |
