Exhaust pipe & muffler
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

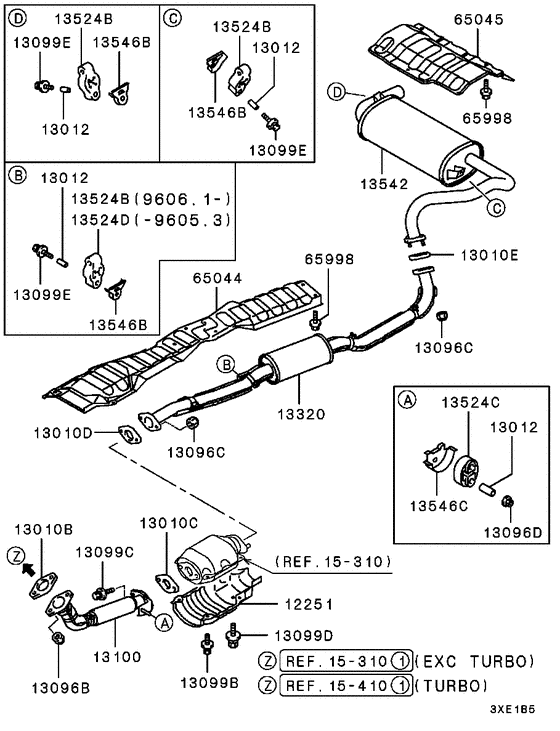

Diagram 7939079
Parts diagram group Exhaust pipe & muffler in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (32 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 12251 | MB611795 | PROTECTOR, CATALYTIC CONVERTER | 1 | $31.82 | |
| 13010B | MD151502 | GASKET, CATALYTIC CONVERTER | 1 | $10.53 | |
| 13010C | MB687000 | GASKET, EXHAUST PIPE | 1 | $6.03 | |
| 13010D | MB687000 | GASKET, EXHAUST PIPE | 1 | $6.03 | |
| 13010E | MB687000 | GASKET, EXHAUST PIPE | 1 | $6.03 | |
| 13012 | MB059938 | COLLAR, EXHAUST PIPE | 4 | $3.01 | |
| 13096B | MB059333 | NUT, EXHAUST PIPE | Self locking,10 | 2 | $5.34 |
| 13096C | MB313077 | NUT, EXHAUST PIPE | Self locking,8 | 4 | $4.51 |
| 13096D | MS440503 | NUT | Washer assembled,8 | 1 | $0.64 |
| 13099B | MF240024 | BOLT, FUEL TANK | Washer assembled,6x14 | 4 | $2.60 |
| 13099C | MF241257 | BOLT, CRANKCASE | Washer assembled,8x30 | 2 | $1.64 |
| 13099D | MF243649 | BOLT, FLYWHEEL HOUSING | Washer assembled,8x16 | 1 | $0.45 |
| 13099E | MF243659 | BOLT, INTER COOLER | Washer assembled,8x40 | 3 | — |
| 13099E | MF244859 | BOLT, A/C COMPRESSOR | Washer assembled,8x40 | 3 | $4.38 |
| 13100 | MR204609 | PIPE, EXHAUST, FR | 1 | $499.41 | |
| 13320 | MR204610 | PIPE, EXHAUST, CTR | 1 | $423.70 | |
| 13320 | MR239197 | PIPE, EXHAUST, CTR | 1 | — | |
| 13320 | MR404619 | PIPE, EXHAUST, CTR | 1 | $509.70 | |
| 13320 | MR404619 | PIPE, EXHAUST, CTR | 1 | $509.70 | |
| 13524B | MB514063 | HANGER, EXHAUST MUFFLER | 2 | — | |
| 13524B | MR281858 | HANGER, EXHAUST MUFFLER | 2 | $11.22 | |
| 13524B | MR281858 | HANGER, EXHAUST MUFFLER | 2 | $11.22 | |
| 13524B | MR281858 | HANGER, EXHAUST MUFFLER | 3 | $11.22 | |
| 13524C | MB906130 | HANGER, EXHAUST MUFFLER | 1 | — | |
| 13524D | MR212307 | HANGER, EXHAUST MUFFLER | 1 | — | |
| 13542 | MR188402 | MUFFLER, EXHAUST MAIN | 1 | $414.96 | |
| 13546B | MB313866 | PROTECTOR, EXHAUST MUFFLER HANGER | 3 | $16.28 | |
| 13546C | MB687527 | PROTECTOR, EXHAUST MUFFLER HANGER | 1 | $8.21 | |
| 65044 | MR138991 | PROTECTOR, UNDER FLOOR HEAT, FR | 1 | $29.60 | |
| 65045 | MR138993 | PROTECTOR, UNDER FLOOR HEAT, RR | 1 | $19.98 | |
| 65998 | MS100221 | BOLT, RADIATOR SHROUD | Flange,6x12 | 9 | $0.45 |
| 65998 | MS100223 | BOLT, BODY | Flange,6x10 | 9 | $2.74 |
