Exhaust manifold
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

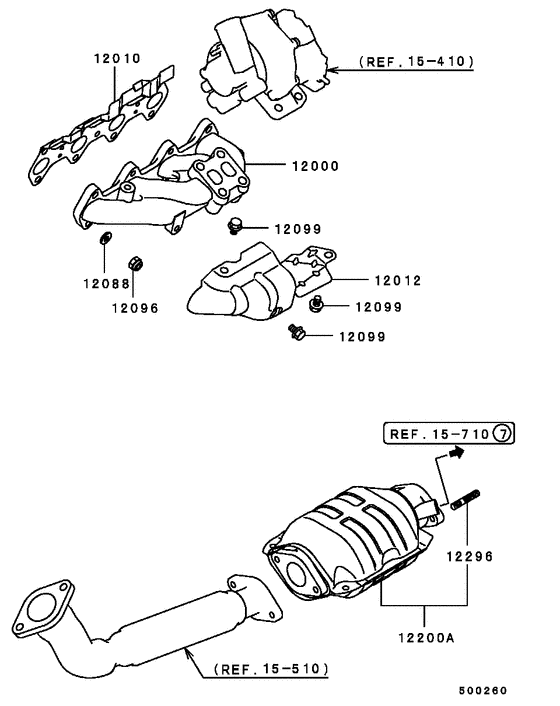

Diagram 7939075
Parts diagram group Exhaust manifold in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (11 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 12000 | MR212738 | MANIFOLD, EXHAUST | 1 | $398.94 | |
| 12010 | MD301285 | GASKET, EXHAUST MANIFOLD | 1 | — | |
| 12010 | MR431169 | GASKET, EXHAUST MANIFOLD | 1 | $31.46 | |
| 12010 | MR431169 | GASKET, EXHAUST MANIFOLD | 1 | $31.46 | |
| 12012 | MR266030 | COVER, EXHAUST MANIFOLD | 1 | $53.28 | |
| 12088 | MD041192 | WASHER, EXHAUST MANIFOLD | Plain,8 | 8 | $1.44 |
| 12096 | MR212302 | NUT, EXHAUST MANIFOLD | Flange,8 | 8 | $1.31 |
| 12099 | MD067956 | BOLT, EXHAUST MANIFOLD | Flange,8x12 | 3 | $1.42 |
| 12200A | MR161807 | CONVERTER ASSY, CATALYTIC | 1 | $1124.03 | |
| 12200A | MR404617 | CONVERTER ASSY, CATALYTIC | 1 | $1124.03 | |
| 12296 | MD041236 | STUD, CATALYTIC CONVERTER | 8x25 | 2 | $5.88 |
