Emission control
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

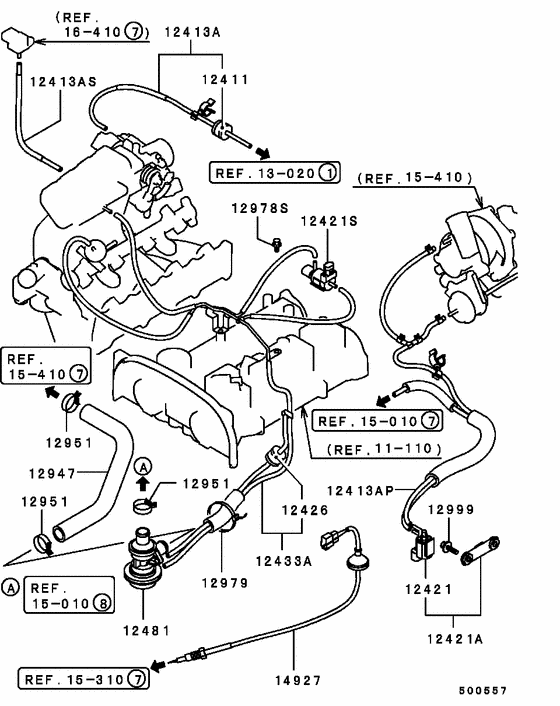

Diagram 7939082
Parts diagram group Emission control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (17 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 12411 | MD041839 | CHECK VALVE, EMISSION CONTROL | 1 | $20.72 | |
| 12413A | MR188304 | HOSE ASSY, EMISSION VACUUM CONTROL | 1 | $40.70 | |
| 12413AP | MR160706 | HOSE ASSY, EMISSION VACUUM CONTROL | 1 | $57.72 | |
| 12413AS | MR224795 | HOSE ASSY, EMISSION VACUUM CONTROL | 1 | $5.92 | |
| 12421 | MD145201 | VALVE, EMISSION SOLENOID | 1 | $82.76 | |
| 12421A | MR258674 | VALVE ASSY, EMISSION SOLENOID | 1 | $96.94 | |
| 12421S | MR212715 | VALVE, EMISSION SOLENOID | 1 | $84.36 | |
| 12426 | MD017917 | VALVE, EMISSION CONTROL DELAY | 1 | $20.72 | |
| 12433A | MR224092 | HOSE & PIPE ASSY, EMISSION CONTROL | 1 | $125.06 | |
| 12481 | MR188694 | VALVE, EMISSION CONTROL RELIEF | 1 | $173.16 | |
| 12947 | MR188695 | HOSE, EMISSION VACUUM CONTROL EQUIP | 1 | $65.86 | |
| 12951 | MS660170 | CLIP, ENG BREATHER | D=26 | 3 | $3.42 |
| 12978S | MF140202 | BOLT, FLANGE (6x10) | Flange,6x10 | 1 | $1.42 |
| 12979 | MB249339 | BAND, ENG BREATHER | L=169.5 | 1 | $3.83 |
| 12999 | MS240142 | BOLT, FUEL TANK | Washer assembled,6x20 | 2 | $0.98 |
| 12999 | MS240144 | BOLT, FUEL LINE | Washer assembled,6x30 | 2 | $2.07 |
| 14927 | MR188349 | SENSOR, EXHAUST HIGH TEMPERATURE | 1 | $297.44 |

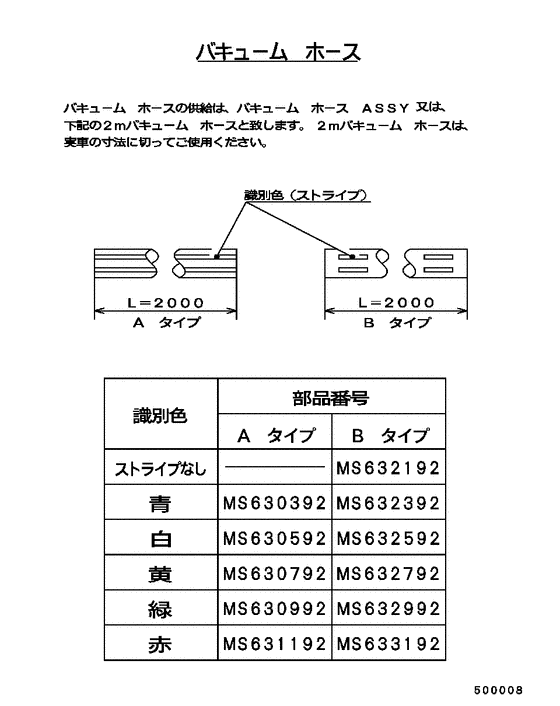

Diagram 7939084
Parts diagram group Emission control in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list
No part rows were exposed on the catalog page at scrape time — use the live diagram link above.
