Windshield glass & moulding
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

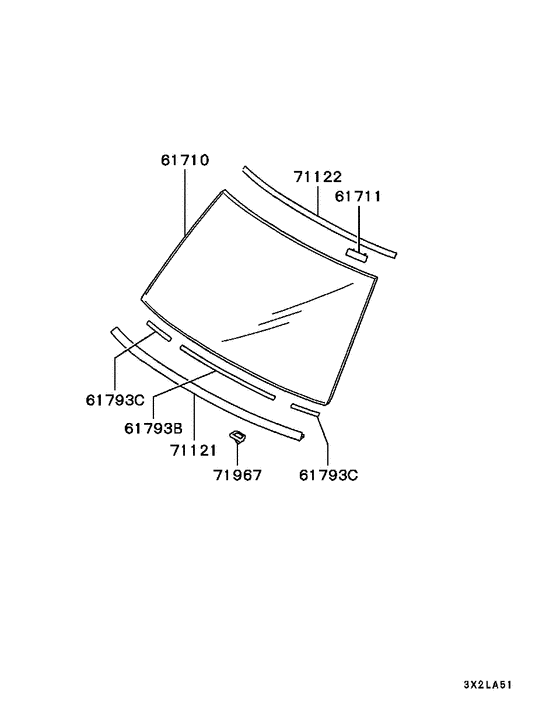

Diagram 7939191
Parts diagram group Windshield glass & moulding in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (11 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 61710 | MR155281 | GLASS, WINDSHIELD | 1 | — | |
| 61710 | MR274133 | GLASS, WINDSHIELD | 1 | $794.98 | |
| 61710 | MR274133 | GLASS, WINDSHIELD | 1 | $794.98 | |
| 61711 | MR191745 | STOPPER, WINDSHIELD GLASS | 2 | $3.83 | |
| 61793B | MB952747 | SPACER, RR WINDOW | 450 | 1 | $3.26 |
| 61793C | MR108290 | SPACER, WINDSHIELD | L=1500 | 2 | — |
| 61793C | MB419223 | SPACER, WINDSHIELD | 2800 | 2 | $7.29 |
| 61793C | MR154285 | SPACER, WINDSHIELD | 1400 | 2 | $6.29 |
| 71121 | MR155302 | MOULDING, WINDSHIELD, LWR | 1 | $45.83 | |
| 71122 | MR155301 | MOULDING, WINDSHIELD, UPR | 1 | $28.73 | |
| 71967 | MR155309 | CLIP, WINDSHIELD MOULDING | 6 | $3.42 |
