Side structure
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

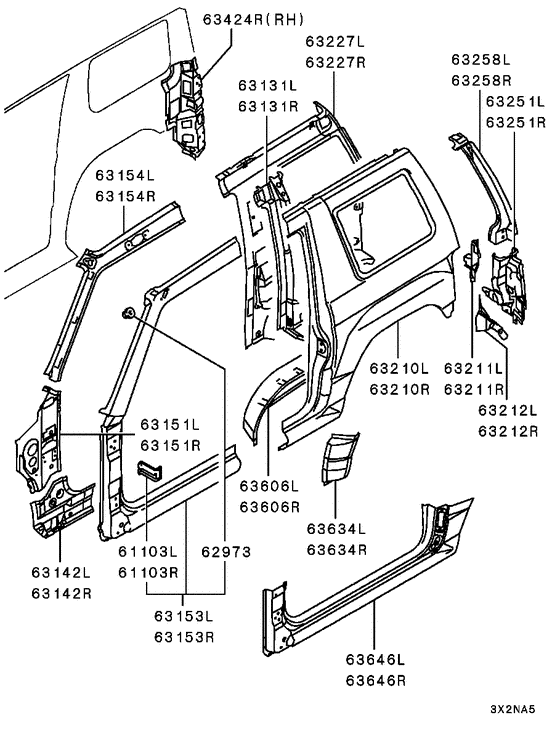

Diagram 7939193
Parts diagram group Side structure in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (34 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 61103L | MR208045 | BRACKET, FR FENDER, RR LH | 1 | $7.84 | |
| 61103R | MR208046 | BRACKET, FR FENDER, RR RH | 1 | $7.84 | |
| 62973 | MB291893 | NUT, FR SIDE STRUCTURE | 5 | 2 | $2.37 |
| 63131L | MR208063 | REINFORCEMENT, CTR PILLAR, LH | 1 | $177.60 | |
| 63131R | MR208064 | REINFORCEMENT, CTR PILLAR, RH | 1 | $177.60 | |
| 63142L | MR208043 | EXTENSION, FR PILLAR, INR LH | 1 | $74.00 | |
| 63142R | MR208044 | EXTENSION, FR PILLAR, INR RH | 1 | $74.00 | |
| 63151L | MR208041 | PILLAR, FR LWR INR LH | 1 | $116.92 | |
| 63151R | MR208042 | PILLAR, FR LWR INR RH | 1 | $116.92 | |
| 63153L | MR208049 | PILLAR, FR OTR LH | 1 | $576.58 | |
| 63153R | MR208050 | PILLAR, FR OTR RH | 1 | $576.58 | |
| 63154L | MR208039 | PILLAR, FR UPR INR LH | 1 | $104.34 | |
| 63154R | MR208040 | PILLAR, FR UPR INR RH | 1 | $126.54 | |
| 63210L | MR325159 | PANEL, QTR, OTR LH | 1 | $633.36 | |
| 63210R | MR325160 | PANEL, QTR, OTR RH | 1 | $633.36 | |
| 63211L | MR208065 | EXTENSION, QTR PANEL, INR LH | 1 | $29.60 | |
| 63211R | MR208066 | EXTENSION, QTR PANEL, INR RH | 1 | $29.60 | |
| 63212L | MR208061 | EXTENSION, QTR PANEL, LWR INR LH | 1 | $48.10 | |
| 63212R | MR208062 | EXTENSION, QTR PANEL, LWR INR RH | 1 | $48.10 | |
| 63227L | MR208053 | PANEL, QTR, INR LH | 1 | $362.54 | |
| 63227L | MR208929 | PANEL, QTR, INR LH | 1 | $356.72 | |
| 63227R | MR208054 | PANEL, QTR, INR RH | 1 | $362.54 | |
| 63227R | MR208930 | PANEL, QTR, INR RH | 1 | $356.72 | |
| 63251L | MR208069 | EXTENSION, QTR PANEL, LWR OTR LH | 1 | $170.20 | |
| 63251R | MR208070 | EXTENSION, QTR PANEL, LWR OTR RH | 1 | $170.20 | |
| 63258L | MR208067 | EXTENSION, QTR PANEL, UPR OTR LH | 1 | $80.66 | |
| 63258R | MR208068 | EXTENSION, QTR PANEL, UPR OTR RH | 1 | $100.64 | |
| 63424R | MR208072 | REINFORCEMENT, RR PILLAR, LWR RH | 1 | $155.40 | |
| 63606L | MR208057 | PANEL, RR WHEELHOUSE, INR LH | 1 | $259.00 | |
| 63606R | MR208058 | PANEL, RR WHEELHOUSE, INR RH | 1 | $259.00 | |
| 63634L | MR208059 | PLATE, SIDE SILL RR END, LH | 1 | $59.20 | |
| 63634R | MR208060 | PLATE, SIDE SILL RR END, RH | 1 | — | |
| 63646L | MR208963 | SIDE SILL, FR FLOOR, OTR LH | 1 | $493.58 | |
| 63646R | MR208964 | SIDE SILL, FR FLOOR, OTR RH | 1 | $493.58 |
