Side garnish & moulding
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

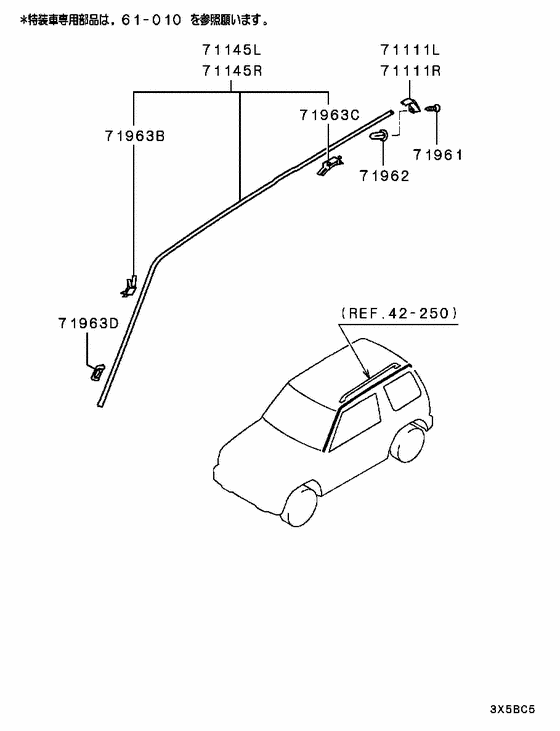

Diagram 7939210
Parts diagram group Side garnish & moulding in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 71145L | MR155303 | MOULDING, DRIP, LH | 1 | — | |
| 71145R | MR155304 | MOULDING, DRIP, RH | 1 | $120.62 | |
| 71961 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 2 | $0.92 |
| 71962 | MB696509 | GROMMET, DRIP MOULDING | 4 | 2 | $1.07 |
| 71963B | MR155308 | CLIP, DRIP MOULDING | 6 | $6.70 | |
| 71963C | MR155367 | CLIP, DRIP MOULDING | 14 | $6.70 | |
| 71963D | MB880455 | CLIP, DRIP MOULDING | 8 | $3.22 |
