Roof & lid
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

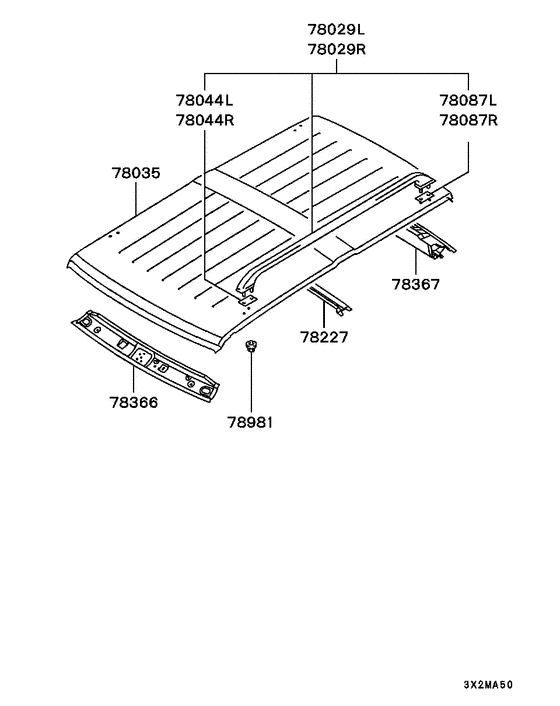

Diagram 7939192
Parts diagram group Roof & lid in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (13 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 78029L | MR365095 | RACK, ROOF, LH | 1 | $687.23 | |
| 78029L | MR393835 | RACK, ROOF, LH | 1 | $687.23 | |
| 78029R | MR365096 | RACK, ROOF, RH | 1 | $687.23 | |
| 78029R | MR393836 | RACK, ROOF, RH | 1 | $687.23 | |
| 78035 | MR208080 | PANEL, ROOF | 1 | $819.73 | |
| 78044L | MR199205 | SEAL, ROOF RACK, FR LH | 1 | — | |
| 78044R | MR199206 | SEAL, ROOF RACK, FR RH | 1 | — | |
| 78087L | MR199213 | SEAL, ROOF RACK, RR LH | 1 | — | |
| 78087R | MR199214 | SEAL, ROOF RACK, RR RH | 1 | — | |
| 78227 | MR208082 | BOW, ROOF | 1 | $48.84 | |
| 78366 | MR208081 | RAIL, ROOF, FR | 1 | $86.58 | |
| 78367 | MR208083 | RAIL, ROOF, RR | 1 | $164.28 | |
| 78981 | MB288461 | NUT, ENG OIL COOLER LINE | Flange self locking,8 | 8 | $2.37 |
