Rear garnish & moulding
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

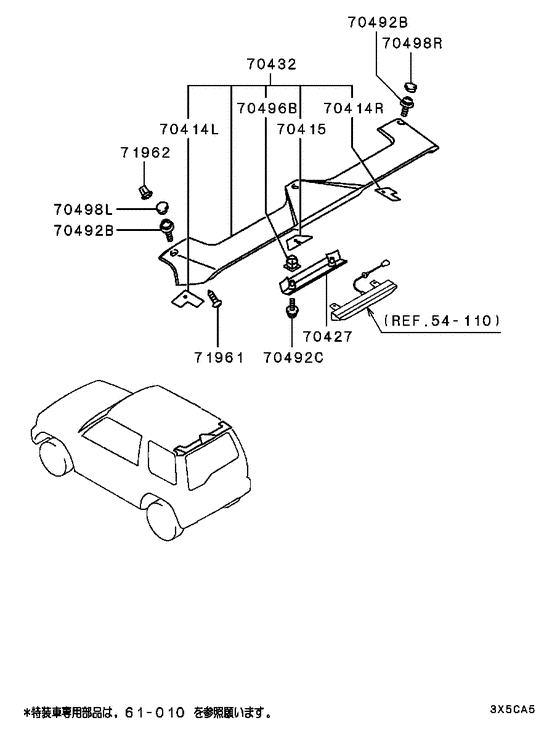

Diagram 7939211
Parts diagram group Rear garnish & moulding in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (15 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 70414L | MR180559 | GASKET, AIR SPOILER SIDE, LH | 1 | $5.75 | |
| 70414R | MR180560 | GASKET, AIR SPOILER SIDE, RH | 1 | $5.75 | |
| 70415 | MR180558 | GASKET, AIR SPOILER, CTR | 1 | $6.36 | |
| 70427 | MR180951 | PLATE, ROOF SPOILER MOUNTING | 1 | $14.36 | |
| 70432 | MR766251 | AIR SPOILER, ROOF | 1 | $1211.39 | |
| 70432 | MR769197 | AIR SPOILER, ROOF | 1 | $1211.39 | |
| 70492B | MF351034 | SCREW, RR END PANEL GARNISH | Washer assembled,6x20 | 3 | $4.92 |
| 70492C | MF351014 | SCREW, PARTITION BAR | Washer assembled,5x25 | 2 | $1.78 |
| 70496B | MS480002 | GROMMET, HOOD LOCKING | Screw,5 | 2 | $1.19 |
| 70498L | MR766245 | CAP, AIR SPOILER, LH | 1 | $13.02 | |
| 70498L | MR769193 | CAP, AIR SPOILER, LH | 1 | $13.02 | |
| 70498R | MR766248 | CAP, AIR SPOILER, RH | 1 | $13.02 | |
| 70498R | MR769195 | CAP, AIR SPOILER, RH | 1 | $13.02 | |
| 71961 | MF453093 | SCREW, FUEL FILLER LID LOCKING | Tapping,5x16 | 2 | $0.92 |
| 71962 | MB696509 | GROMMET, DRIP MOULDING | 4 | 2 | $1.07 |
