Radiator grille,headlamp bezel
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

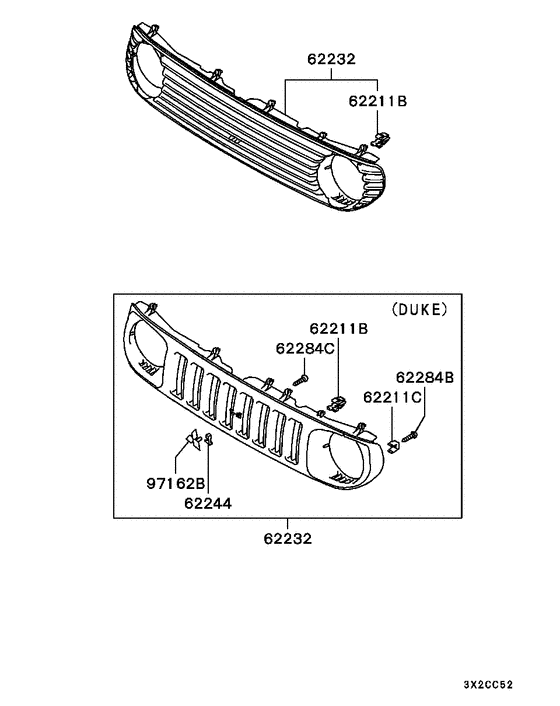

Diagram 7939184
Parts diagram group Radiator grille,headlamp bezel in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (6 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 62211B | MB153825 | CLIP, RADIATOR GRILLE | 12 | $0.99 | |
| 62232 | MR155299 | GRILLE, RADIATOR | 1 | $425.88 | |
| 62232 | MR441375 | GRILLE, RADIATOR | 1 | $365.46 | |
| 62232 | MR441376 | GRILLE, RADIATOR | 1 | $365.46 | |
| 62284B | MR416863 | SCREW, RADIATOR GRILLE | 6 | $2.52 | |
| 62284C | MR416864 | SCREW, RADIATOR GRILLE | 2 | $2.52 |
