Qtr window glass & moulding
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

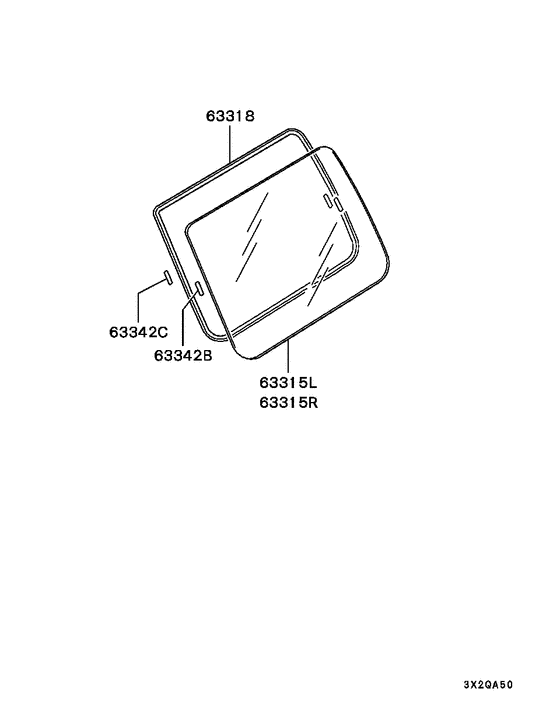

Diagram 7939195
Parts diagram group Qtr window glass & moulding in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (12 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 63315L | MR155287 | GLASS, QTR WINDOW, LH | 1 | — | |
| 63315L | MR274131 | GLASS, QTR WINDOW, LH | 1 | — | |
| 63315L | MR313363 | GLASS, QTR WINDOW, LH | 1 | — | |
| 63315R | MR155288 | GLASS, QTR WINDOW, RH | 1 | — | |
| 63315R | MR274132 | GLASS, QTR WINDOW, RH | 1 | $169.63 | |
| 63315R | MR313364 | GLASS, QTR WINDOW, RH | 1 | $245.68 | |
| 63318 | MR155295 | DAM, QTR WINDOW | LEFT | 1 | $28.04 |
| 63318 | MR155296 | DAM, QTR WINDOW | RIGHT | 1 | $28.04 |
| 63342B | MB881195 | FASTENER, WINDSHIELD | 4 | — | |
| 63342B | MB344738 | FASTENER, BACK DOOR | 4 | $3.00 | |
| 63342C | MB881195 | FASTENER, WINDSHIELD | 4 | — | |
| 63342C | MB344738 | FASTENER, BACK DOOR | 4 | $3.00 |
