Plugs,covers & shield
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

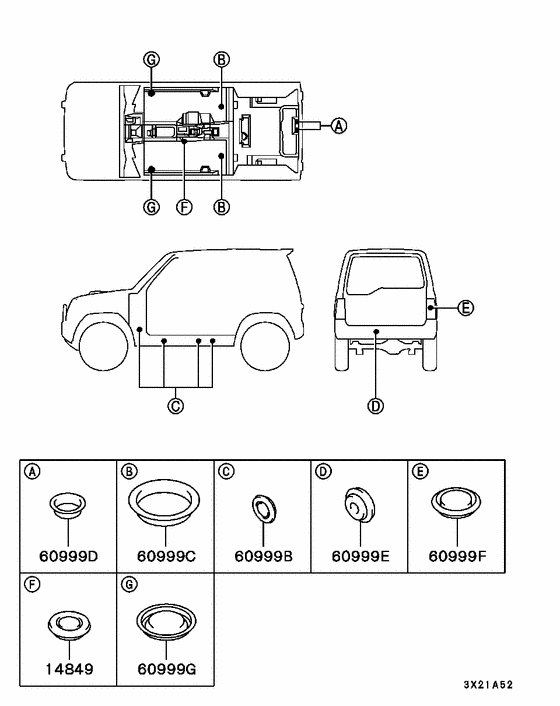

Diagram 7939198
Parts diagram group Plugs,covers & shield in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (7 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 14849 | MU670024 | PLUG, BODY | 25 | 1 | $4.24 |
| 60999B | MU670023 | PLUG,CHASSIS FRAME | Rubber,20 | 8 | $4.24 |
| 60999C | MT384360 | PLUG, BODY | 50.5 | 2 | $4.24 |
| 60999D | MT134301 | PLUG, BODY | 24.1 | 2 | $3.83 |
| 60999E | MU670024 | PLUG, BODY | 25 | 1 | $4.24 |
| 60999F | MU670036 | PLUG, FR DOOR | Plastic,35 | 1 | $4.24 |
| 60999G | MB575310 | PLUG, FLOOR | 70 | 2 | $6.26 |

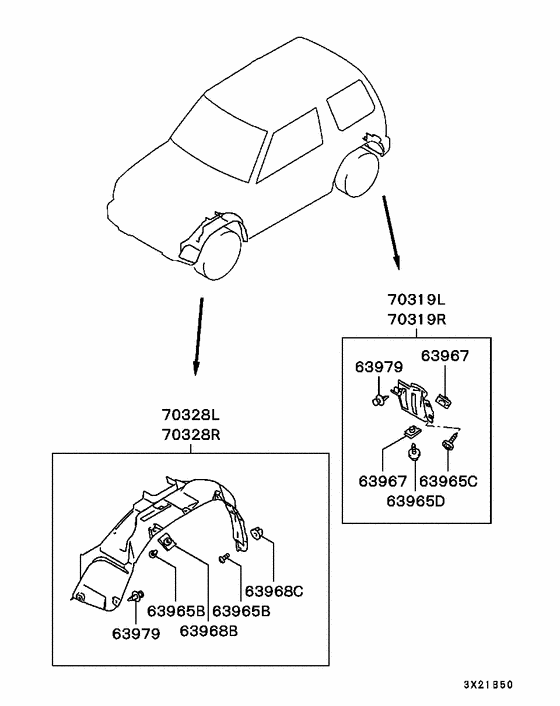

Diagram 7939199
Parts diagram group Plugs,covers & shield in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 63965B | MF453108 | SCREW, ACCEL CONTROL EQUIP | Tapping,6x20 | 12 | $0.88 |
| 63965B | MS452348 | SCREW, STEERING COLUMN | 6 | $2.34 | |
| 63965C | MS350145 | SCREW, BACK DOOR LOCKING | Washer assembled,6x20 | 4 | $2.74 |
| 63965D | MS350180 | SCREW, FOOTREST | Washer assembled,6x20 | 4 | $3.83 |
| 63965D | MS350181 | SCREW, SPLASH SHIELD | Washer assembled 6x25 | 8 | $2.96 |
| 63965D | MS452397 | SCREW, FR MUD GUARD | Tapping,6x20 | 6 | $2.20 |
| 63967 | MS440192 | NUT, RADIATOR SHROUD | Spring,6 | 8 | $3.55 |
| 63968B | MB481588 | GROMMET, FR BUMPER | Screw .,6 | 6 | $2.30 |
| 63968C | MS480003 | GROMMET, FUEL FILLER LID PANEL | Screw,6 | 6 | $0.88 |
| 63979 | MB253964 | CLIP, FR BUMPER | 18 | $1.44 | |
| 70319L | MR179985 | SHIELD KIT, SPLASH, RR LH | 1 | $35.52 | |
| 70319R | MR179986 | SHIELD KIT, SPLASH, RR RH | 1 | $35.52 | |
| 70328L | MR179983 | SHIELD KIT, SPLASH, FR LH | 1 | $80.66 | |
| 70328R | MR179984 | SHIELD KIT, SPLASH, FR RH | 1 | $80.66 |
