Plate & label
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

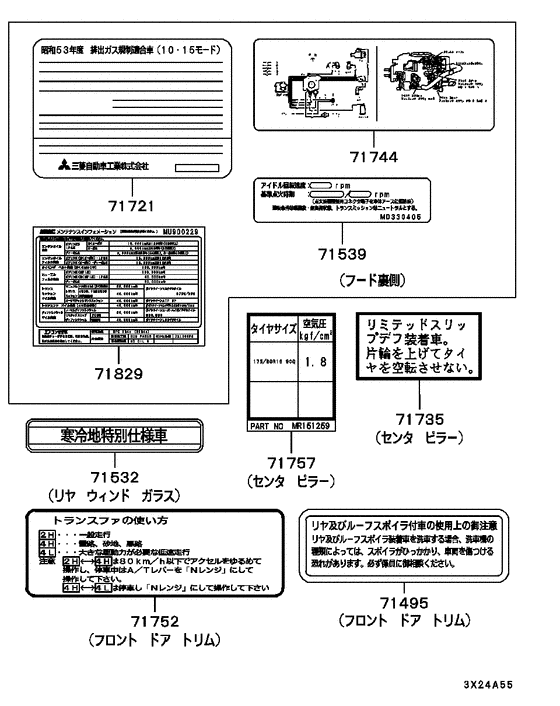

Diagram 7939201
Parts diagram group Plate & label in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (8 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 71495 | MB696041 | LABEL, AIR SPOILER CAUTION (Japanese) | For japanese | 1 | $4.66 |
| 71532 | MB174627 | LABEL, COLD AREA | 1 | $8.48 | |
| 71539 | MD330406 | LABEL, ENG IDLE CAUTION | 1 | $3.70 | |
| 71752 | MR195082 | LABEL, T/F CAUTION | 1 | — | |
| 71757 | MR151259 | LABEL, TIRE PRESSURE | 1 | — | |
| 71757 | MR510182 | LABEL, TIRE PRESSURE | 1 | $5.75 | |
| 71829 | MU900229 | LABEL, VEHICLE MAINTENANCE INFORMATION | 1 | — | |
| 71829 | MU900351 | LABEL, VEHICLE MAINTENANCE INFORMATION | 1 | — |
