Outside rear view mirror
This EPC family contains 2 catalog variations for the VIN-confirmed Pajero Mini H56A catalog.

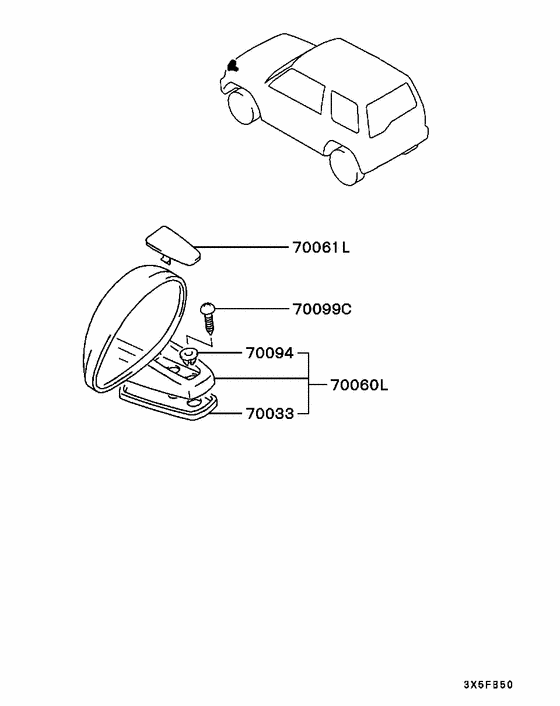

Diagram 7939215
Parts diagram group Outside rear view mirror in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (17 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 70033 | MR155372 | GASKET, RR VIEW MIRROR STAY | 1 | $6.22 | |
| 70060L | MR738701 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70060L | MR745518 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70060L | MR745519 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70060L | MR766239 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70060L | MR766240 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70060L | MR766241 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70060L | MR769179 | MIRROR, FR UNDER VIEW, LH | 1 | $250.12 | |
| 70061L | MB944909 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.91 | |
| 70061L | MB944911 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.00 | |
| 70061L | MR735547 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.91 | |
| 70061L | MR749171 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.91 | |
| 70061L | MR766237 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.91 | |
| 70061L | MR766238 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.91 | |
| 70061L | MR769177 | COVER, FR UNDER VIEW MIRROR, LH | 1 | $13.91 | |
| 70094 | MR108984 | GROMMET, RR VIEW MIRROR | 2 | $2.33 | |
| 70099C | MS450936 | SCREW, FR DOOR ARMREST | Tapping,6x25 | 2 | $1.92 |

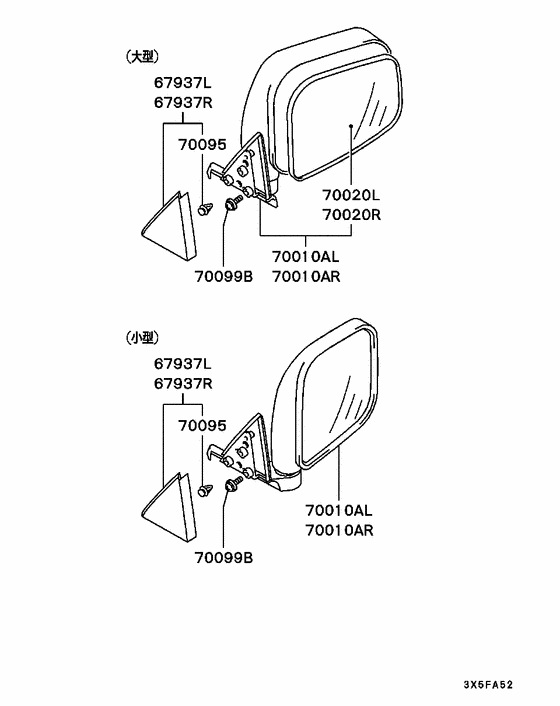

Diagram 7939216
Parts diagram group Outside rear view mirror in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (10 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 67937L | MR155325 | COVER, DOOR MIRROR DELTA, INR LH | 1 | $11.69 | |
| 67937R | MR155326 | COVER, DOOR MIRROR DELTA, INR RH | 1 | $11.69 | |
| 70010AL | MR339845 | MIRROR ASSY, DOOR, LH | Manual | 1 | $287.12 |
| 70010AL | MR361295 | MIRROR ASSY, DOOR, LH | Manual | 1 | $292.66 |
| 70010AR | MR339846 | MIRROR ASSY, DOOR, RH | Manual | 1 | $287.12 |
| 70010AR | MR361296 | MIRROR ASSY, DOOR, RH | Manual | 1 | $292.66 |
| 70020L | MR275453 | MIRROR & HOLDER, DOOR, LH | Aspheric | 1 | $53.28 |
| 70020R | MR275454 | MIRROR & HOLDER, DOOR, RH | Aspheric | 1 | $53.28 |
| 70095 | MR190683 | CLIP, GATE PILLAR TRIM | 4 | $4.38 | |
| 70099B | MS350129 | SCREW, FUEL TANK | Washer assembled,6x16 | 6 | $4.24 |
