Ornament,mark & emblem
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

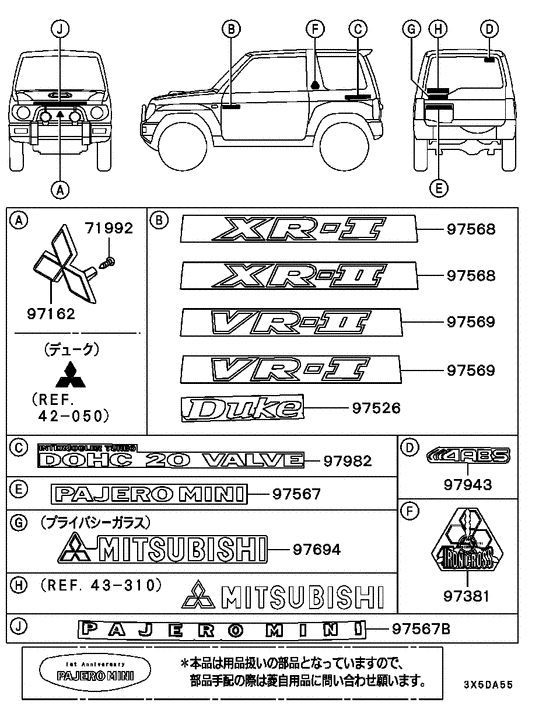

Diagram 7939212
Parts diagram group Ornament,mark & emblem in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (10 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 71992 | MF453017 | SCREW | Tapping,4x12 | 2 | $3.01 |
| 97162 | MB619207 | MARK, THREE-DIA | 1 | $36.94 | |
| 97567 | MR221579 | DECAL, PAJERO MINI | 1 | $36.94 | |
| 97567 | MR361944 | DECAL, PAJERO MINI | 1 | — | |
| 97567B | MR361942 | DECAL, PAJERO MINI | 1 | $102.12 | |
| 97569 | MR221660 | DECAL, VR | <vr-2> | 2 | $45.14 |
| 97694 | MR108568 | DECAL, THREE-DIA MITSUBISHI | 1 | $50.62 | |
| 97694 | MR108569 | DECAL, THREE-DIA MITSUBISHI | 1 | $43.09 | |
| 97943 | MR275982 | DECAL, 4 ABS | 1 | — | |
| 97982 | MR221652 | DECAL, DOHC 20VALVE | 2 | $70.45 |
