Mud guard,shield & stone guard
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

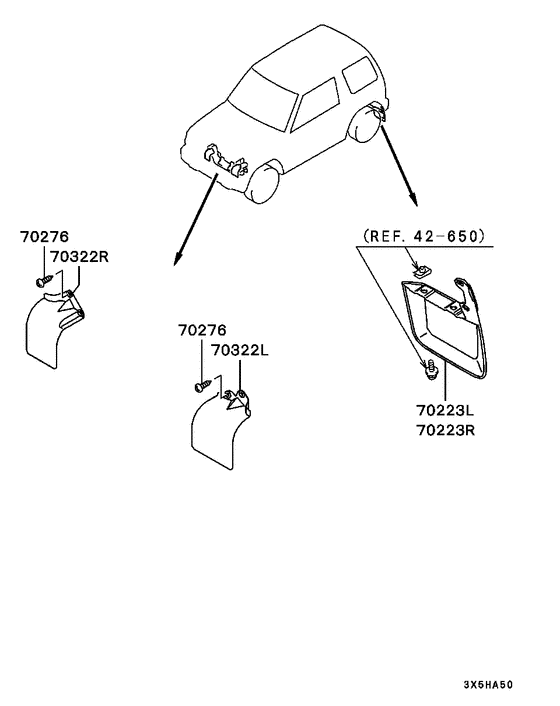

Diagram 7939217
Parts diagram group Mud guard,shield & stone guard in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (5 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 70223L | MR180735 | MUD GUARD, RR LH | 1 | — | |
| 70223R | MR180736 | MUD GUARD, RR RH | 1 | — | |
| 70276 | MF350790 | SCREW, HAND STARTING EQUIP | Washer assembled,6x12 | 4 | $1.07 |
| 70322L | MR210171 | SHIELD, FR FENDER SPLASH, LH | 1 | $7.52 | |
| 70322R | MR210172 | SHIELD, FR FENDER SPLASH, RH | 1 | $7.52 |
