Loose panel
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

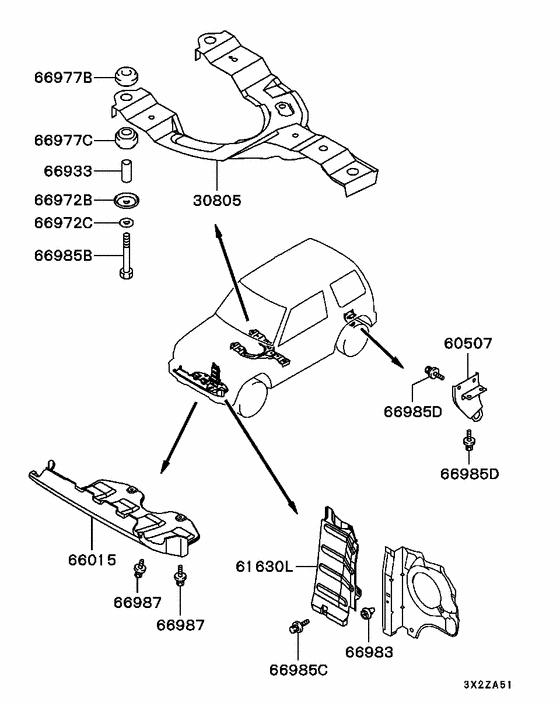

Diagram 7939197
Parts diagram group Loose panel in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (17 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 30805 | MR156468 | CROSSMEMBER, T/F MOUNTING | 1 | $260.48 | |
| 30805 | MR259855 | CROSSMEMBER, T/F MOUNTING | 1 | $177.60 | |
| 60507 | MR180119 | HOOK, TRACTION, RR | 1 | $56.98 | |
| 66015 | MR152000 | COVER, ENG ROOM UNDER | 1 | $148.00 | |
| 66015 | MR380459 | COVER, ENG ROOM UNDER | 1 | $148.00 | |
| 66933 | MR234041 | SPACER, ENG RR MOUNTING | 3 | $2.96 | |
| 66972B | MB691148 | WASHER, ENG FR MOUNTING | 10.5 | 3 | $3.70 |
| 66972C | MF450406 | WASHER | Spring,10 | 3 | $0.39 |
| 66977B | MB290072 | CUSHION, ENG FR MOUNTING | 3 | $11.35 | |
| 66977C | MB290070 | CUSHION, ENG FR MOUNTING | 3 | $17.10 | |
| 66985B | MB309401 | BOLT, ENG FR MOUNTING | Cone point,10x70 | 3 | $5.48 |
| 66985B | MR274014 | BOLT, BODY LOOSE PANEL | Cone point,10x70 | 3 | $4.44 |
| 66985C | MF243622 | BOLT, ROCKER COVER | Washer assembled,6x12 | 4 | $1.07 |
| 66985D | MS240129 | BOLT, FUEL TANK | Washer assembled,10x25 | 4 | $3.01 |
| 66987 | MF140333 | BOLT, ENG ROOM COVER | 8x16 | 4 | $2.37 |
| 66987 | MF140641 | BOLT, ACCEL CABLE SUPPORT | Flange,8x12 | 4 | $2.22 |
| 66987 | MF140643 | BOLT, AIR CLEANER | Flange,8x16 | 4 | $2.07 |
