Lock cylinder & key
This EPC family contains 1 catalog variation for the VIN-confirmed Pajero Mini H56A catalog.

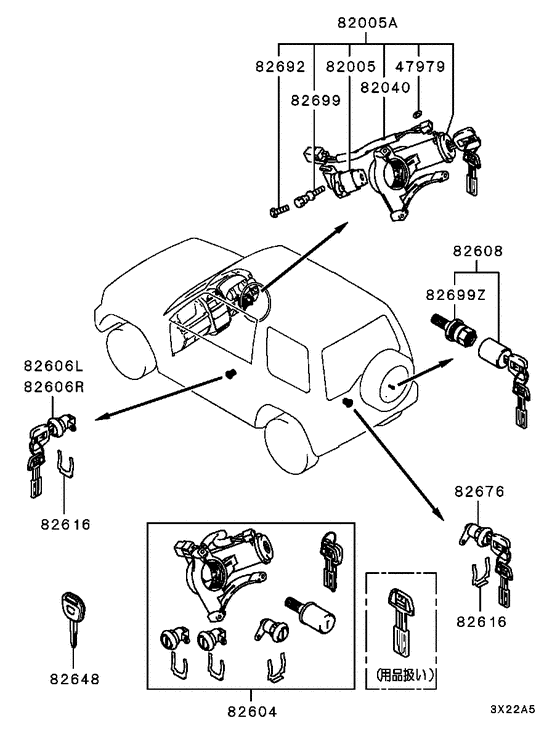

Diagram 7939200
Parts diagram group Lock cylinder & key in the VIN-confirmed megazip catalog for our H56A (type MKPF3).
Open diagram & live parts list on megazip
This locally archived diagram was supplied for personal reference. The part identifiers below are catalog facts,
verified-official, snapshot 2026-08-30.
Parts list (14 items)
Scraped from the megazip catalog page 2026-08-30 — verified-official. Ref = callout number on the diagram. Prices are megazip snapshot prices from the scrape date, not list prices — always re-check live before buying.
| Ref | Part No. | Name | Notes | Qty | Price (USD) |
|---|---|---|---|---|---|
| 47979 | MB903646 | NUT, STEERING LOCK | Push-on nut | 2 | $4.00 |
| 82005 | MB903644 | SWITCH, STEERING LOCK | 1 | $50.62 | |
| 82005A | MR157930 | SWITCH ASSY, ENG STARTING | 1 | — | |
| 82040 | MB903645 | SWITCH, ENG STARTING SWITCH ATTACHING | 1 | $48.84 | |
| 82604 | MR296673 | CYLINDER & KEY SET, LOCK | 1 | $484.85 | |
| 82606L | MB927135 | CYLINDER, FR DOOR LOCK, LH | 1 | $68.08 | |
| 82606R | MB927136 | CYLINDER, FR DOOR LOCK, RH | 1 | $68.08 | |
| 82608 | MR296678 | CYLINDER, SPARE TIRE LOCK | 1 | $96.94 | |
| 82616 | MB590337 | RETAINER, DOOR LOCK CYLINDER | 3 | $2.77 | |
| 82648 | MR301687 | KEY, DOOR LOCK TRANSMITTER | 1 | $205.72 | |
| 82676 | MR242254 | CYLINDER, BACK DOOR LOCK | 1 | $68.08 | |
| 82692 | MS200124 | SCREW, LOCK CYLINDER | Tapping,4x20 | 1 | $0.74 |
| 82699 | MB572857 | BOLT, LOCK CYLINDER | 4 | $4.51 | |
| 82699Z | MR267934 | BOLT, LOCK CYLINDER | 1 | $31.82 |
